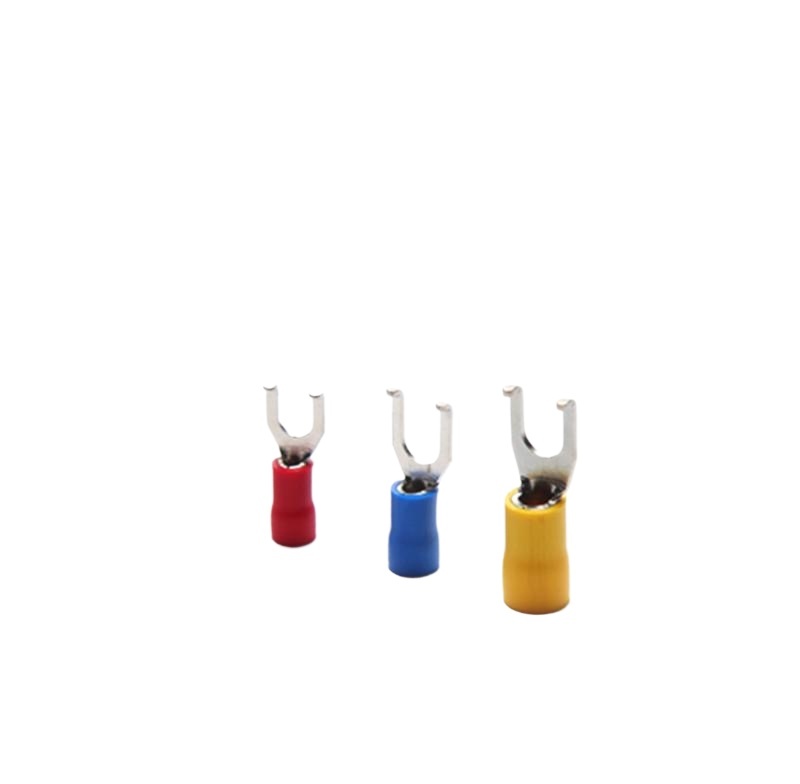

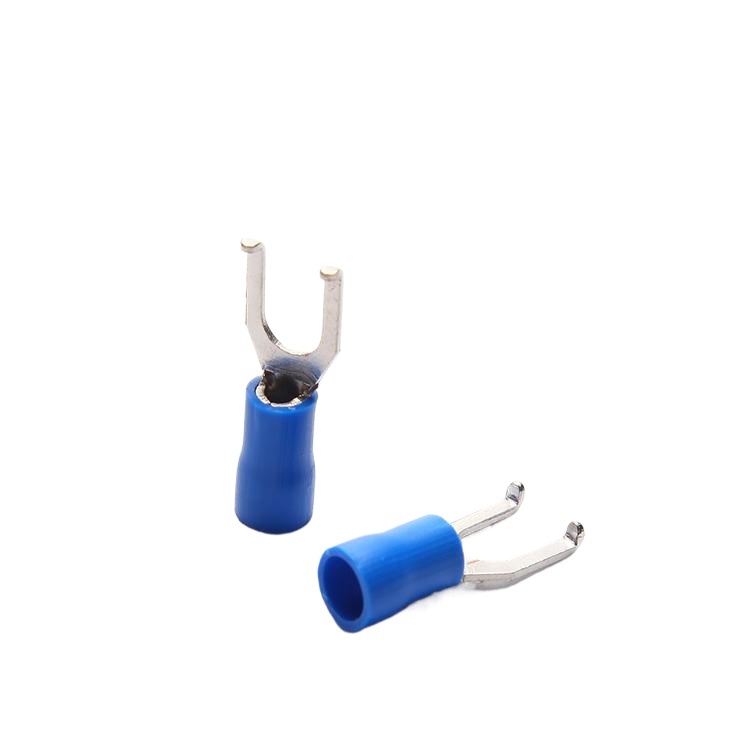

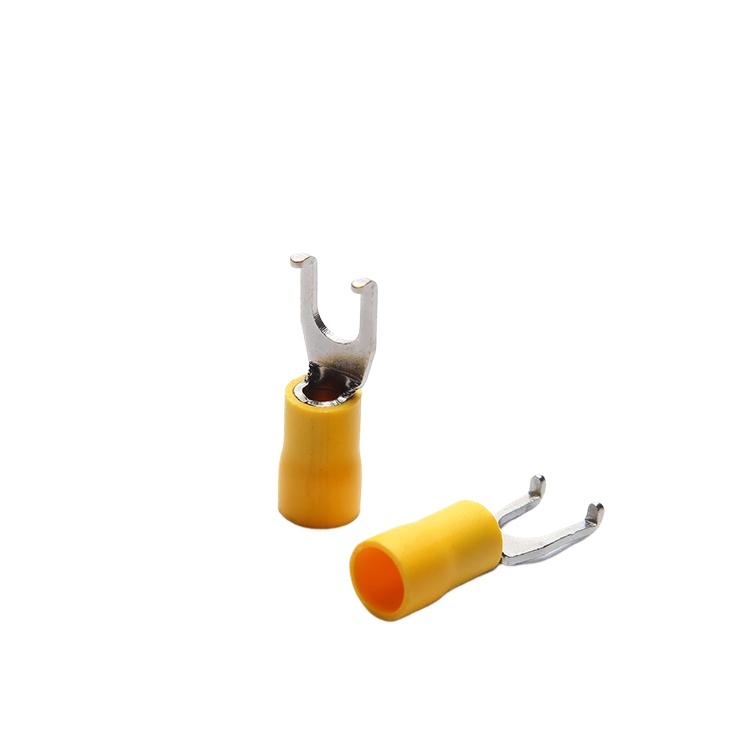

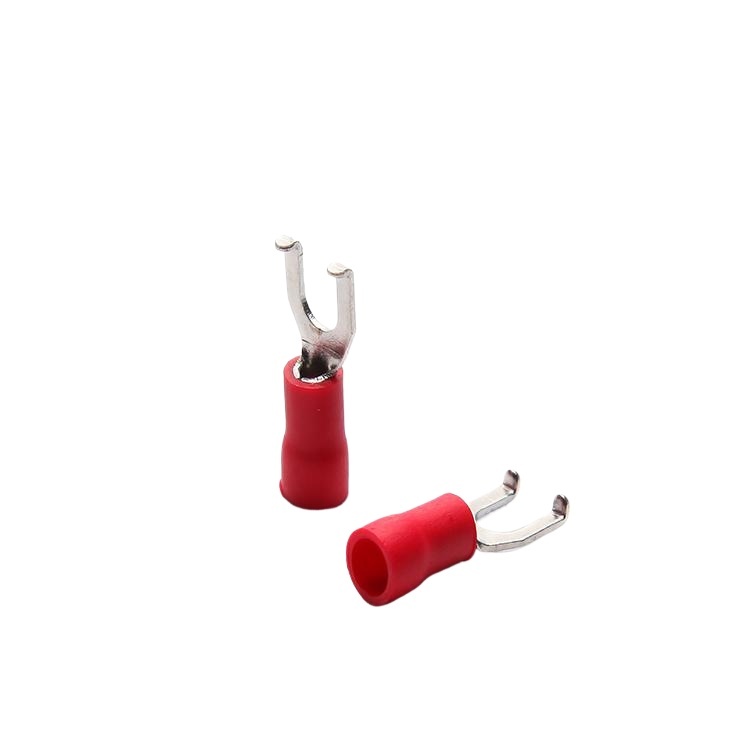

The plating tin insulated flange spade fork cable lug copper provides secure wiring terminations with high conductivity and corrosion resistance. Ideal for integration by terminal block manufacturers and terminal block suppliers.
| Type | Crimp Terminal |
| Color | Blue/Yellow/Red |
| Lead Section | 0.5-1.5mm² /1.5-2.5mm² / 4-6mm² |
| Max Current | Imax=19A |
| Material | Copper |
| Insulation | PA66 |
| Surface Treatment | Matte tin plating |
| A.W.G | 22-16 AWG /16-14 AWG /12-10 AWG |
| Rated Voltage | 220V |
| Max. temperature resistance | 105℃ |
| Packaging Details | 100/500/1000pcs |
The design of the plating tin insulated flange spade fork cable lug copper incorporates a flange for secure mechanical fastening, optimized for insertion into terminal blocks and similar connection devices. This thoughtful structural feature supports seamless modular integration within terminal block manufacturing processes. The nylon insulation and tin plating further protect the system from environmental and electrical stressors, ensuring compatibility with a variety of terminal block models. Such design attributes provide terminal block manufacturers the flexibility to adapt the lug to various technical specifications while maintaining standardized connection reliability.
This terminal solution enhances ease of installation with an ergonomic form factor suited for crimping tools, reducing assembly time and effort in wiring setups by terminal block suppliers. The excellent conductivity and corrosion resistance contribute to long-term performance stability, minimizing maintenance requirements. Its rated temperature resistance and current capacity guarantee operational safety across applications, delivering measurable ROI through reduced downtime. For users requiring custom terminal block designs, this cable lug offers consistent usability and compliance with electrical safety standards, enhancing user confidence in complex systems.
