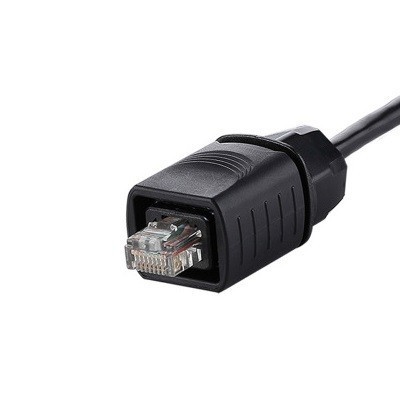

1. Product Inroduction weatherproof rj45 connectors
YT-RJ45 series provides cable sheath, assembled female plug, straight plug, cable coupler and protection style. The protection grade of IP65 / IP67 is the strongest protection for the installation box.Multi style connection design, 1 / 4 fast snap connection, fast plugging;The cable sheath has a solid die-casting shell and a unique double clip clamp sleeve;The cable connector sheath can be used for the most common RJ45 plug;Shielding system: high frequency noise immunity and electromagnetic interference protection.
2. Product Parameter rj45 coupler panel mount
| Wire Specification | 0.15m㎡~0.2m㎡/26~24AWG |
| Wire Diameter Range | Φ5.5mm~7mm |
| Number of Contact | 8 Pins |
| Rated Current | 5A |
| Withstand Voltage | 1000V |
| Insulator Material | ＞500mΩ |
| Protection Grade | IP65/IP67 |
| Working Temperature | -40℃~80℃ |
| Connection Mode | 1/4 Fast Snap, Quick Plug |
| Shell and Insulation Material | High performance engineering plastics |
| Waterproof Ring | Silica Gel |
| Flame Retardant Grade | UL94V-0 |
