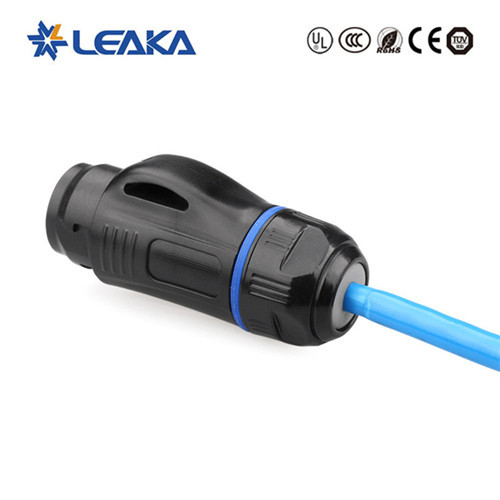

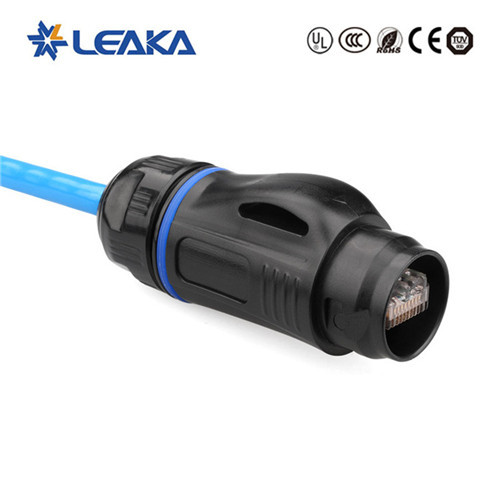

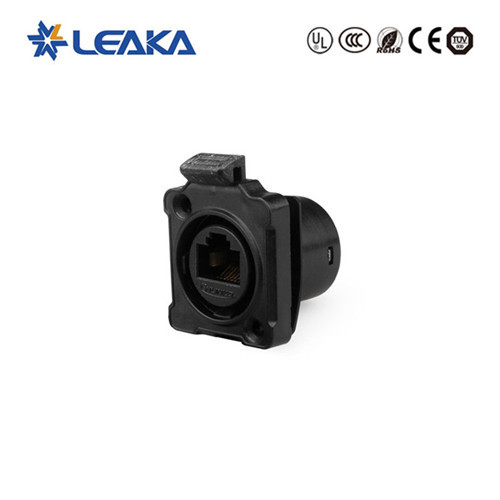

In the era of Industry 4.0, the Internet of Things (IoT), and outdoor networking, reliable data transmission is non-negotiable. The CNLINKO BD24 Plastic Male Female RJ45 Waterproof Wire Connector stands out as a premier solution for engineers and system integrators requiring robust, high-performance connectivity in demanding environments. This field-installable connector combines the universal standard of Ethernet with extreme environmental protection.
| Product name | plastic male female rj45 waterproof wire connector |
| Wire diameter range | Φ5.5mm~Φ7mm |
| Shell material | high performance engineering resins |
| Contact material |
Copper alloy (gold-plated) |
| Features | plastic shell, quick locking, stable pressure resistance |
| Application | Aviation, LED display, LED lighting |
| Certificate | UL,CE,CCC,ISO |
| Supply ability | 50000 pcs per month |
| Mating cycle | >500 |
| Temperature | -40℃~+80℃ |
| IP rating | IP65/IP67 |
| OEM | Yes,we accept |
| Delivery time | 3-45 days depends on buying stockage or OEM order |
The CNLINKO BD24 series is engineered for resilience. Constructed from high-strength, UV-resistant plastic, this connector is designed to withstand mechanical stress and exposure to the elements. With an industry-leading IP68 waterproof rating, it guarantees complete protection against dust ingress and continuous immersion in water. Whether deployed in outdoor surveillance systems, marine electronics, or heavy industrial machinery, the BD24 ensures that your critical network connections remain dry and uninterrupted.
IP68 Protection Level: Fully dust-tight and capable of withstanding submersion in water up to 1.5 meters deep for extended periods. This makes it ideal for outdoor LED displays, security cameras, and automation lines.
RJ45 Cat5e/Cat6 Performance: The connector supports high-speed data transfer up to 1000 Mbps (Gigabit Ethernet). It is compatible with both Cat5e and Cat6 cabling, ensuring low signal attenuation and high fidelity for PoE (Power over Ethernet) applications.

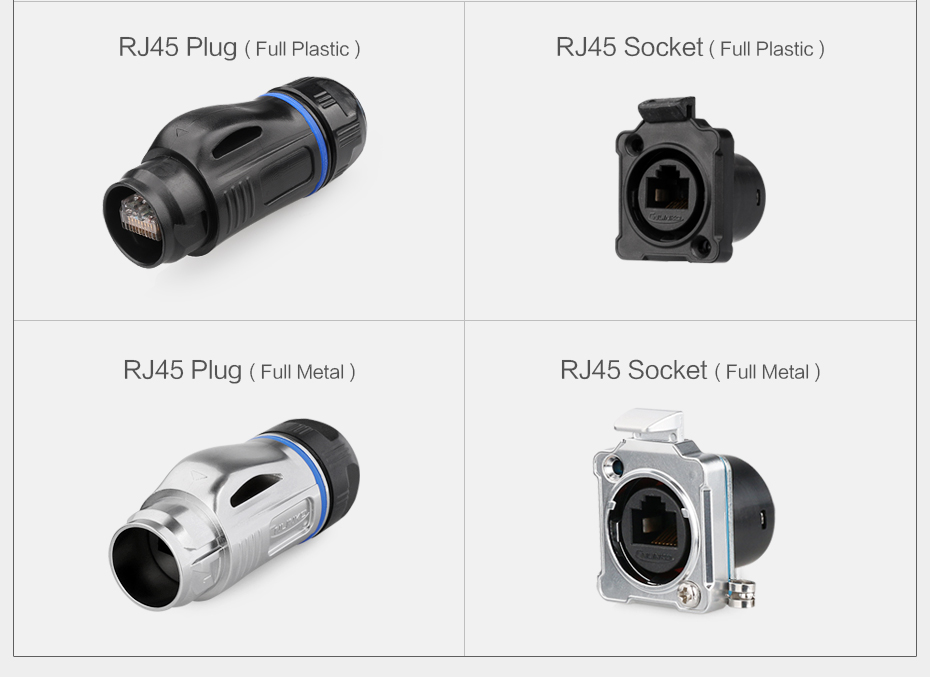

Plastic Housing: The lightweight yet durable plastic shell offers excellent corrosion resistance, making it superior to metal alternatives in environments with high salinity or chemical exposure.

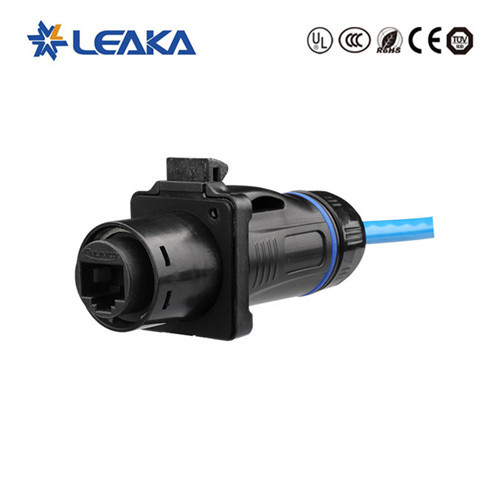

Male-Female Pairing: Designed as a standard industrial circular connector, the BD24 utilizes a male-female bayonet coupling system. This mechanism provides a secure, vibration-proof connection with audible feedback, ensuring easy installation and reliable locking even in high-vibration scenarios like transportation or automotive manufacturing.
Tool-Free Field Installation: The connector supports screw terminal or solderless assembly, allowing for quick on-site termination without specialized tools. This significantly reduces installation time and labor costs.
The versatility of the CNLINKO BD24 RJ45 connector makes it a top choice across multiple industries. It is frequently specified for:
Outdoor Telecommunications: Ensuring reliable signal transmission for base stations and antennas.
Industrial Automation: Connecting PLCs, robotic arms, and sensors in factories where exposure to oil, water, and dust is common.
Smart City Infrastructure: Used in traffic signal systems, smart street lighting, and digital billboards.
Renewable Energy: Facilitating data communication in solar panel arrays and wind turbines.
CNLINKO is a globally recognized manufacturer known for precision engineering and strict quality control. By choosing the BD24 series, you are investing in a product that meets rigorous international safety and performance standards. The plastic version offers a cost-effective yet high-endurance alternative to metal connectors without compromising on the waterproof integrity required for modern industrial networks.
