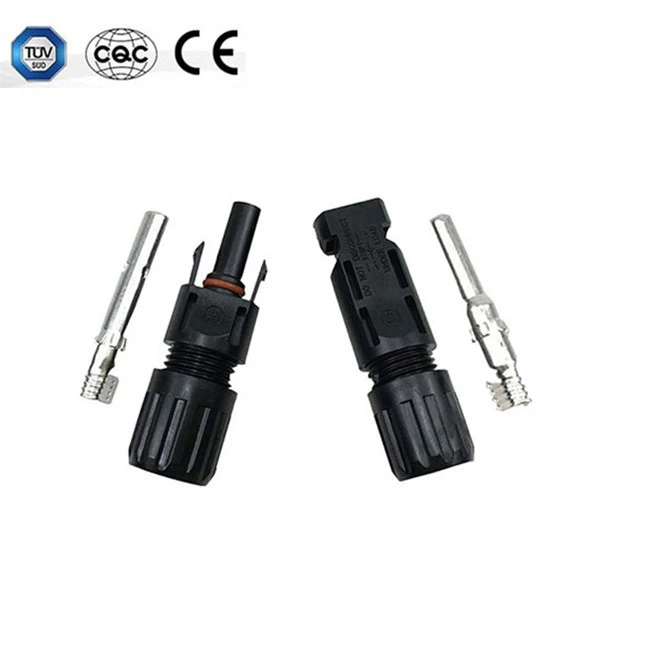

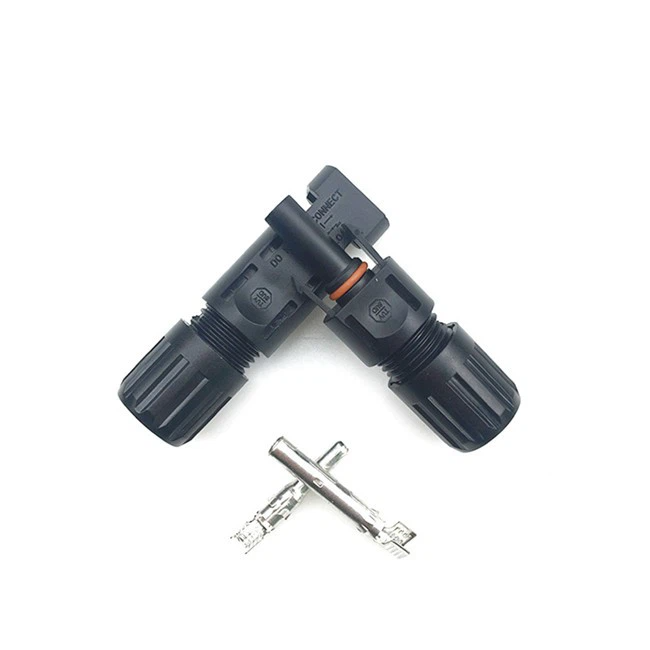

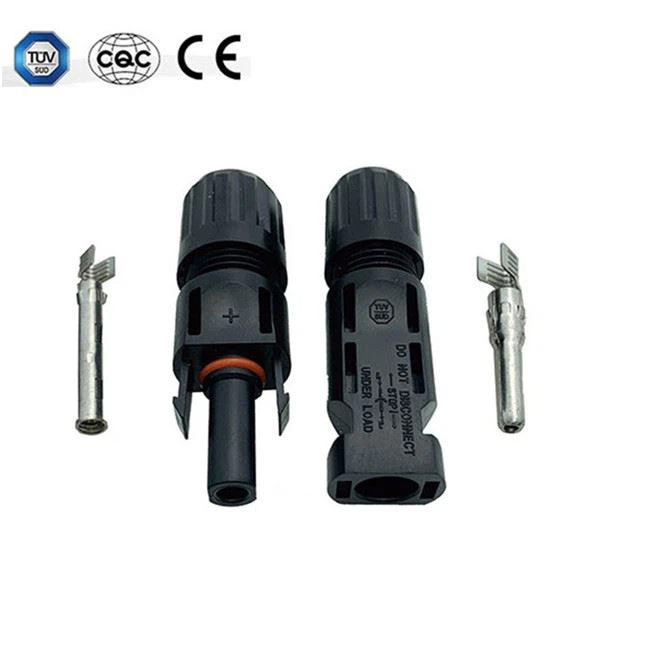

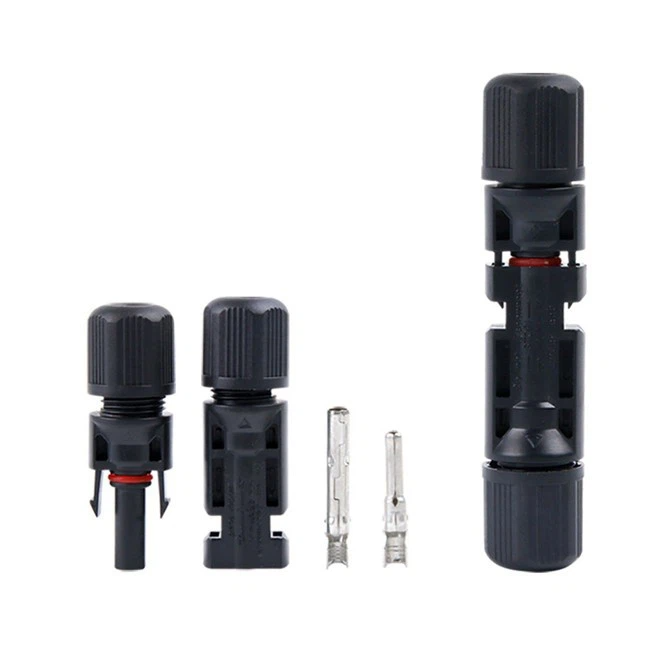

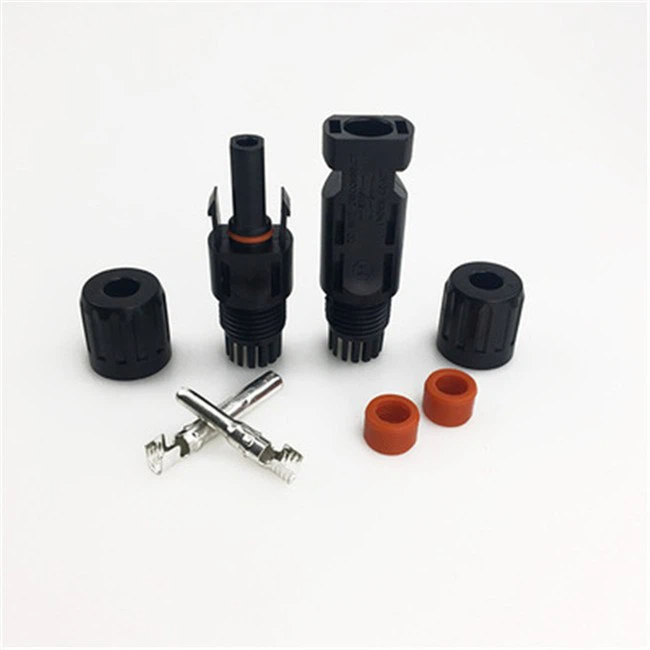

1000V UV Resistance PV MC4 Solar Panel Cable Connector
Specifications of MC4 quick connector
Product name:1000V PV MC4 Solar Panel Cable Connector
Price:0.3-2USD/pcs
Payment term: 100% T/T,Mastercard credit card,payoneer,e-Checking
Delivery date: Within 10 working days
MOQ: 2 pieces
|
Products name |
MC4 electrical connectors |
|
Color |
Black |
|
Rated voltage |
1000V DC |
|
Pulse voltage |
8000V |
|
Insulation voltage |
6000V |
|
Protection level |
IP67 |
|
Ambient temperature |
-40 ℃ ~ + 85℃ |
|
Fire standard |
UL 94-V0 / 5VA |
|
Contact resistance |
≤0. 5mΩ |
|
Certificate |
TUV CE ISO |
Features/Equipment characteristics about MC4 roof connector
Applications: Home roofs, greenhouse farming, traffic lights, fish farming, parking lot charging stations, commercial buildings, deep water well drinking/irrigation, marine research, oil pipelines, etc.
1）.High-strength PPO shell;
2）.Thick galvanized copper core;
3）.MC4 roof connector uses quality waterproof ring, with waterproof and dustproof effect;
4）.Tinned surface, more anti-corrosion, anti-oxidation, increase service life;
5）.MC4 electrical connectors' shell is made of PPO high-strength material, with strong heat resistance, low flammability, wear resistance and durability;
6）.The hole contact of MC4 electrical connectors are provided with a guide insulating piece to guide and prevent electric shock
Our Advantages
Customized--We are the manufacturer! sample &OEM&ODM are available!
Safety--We have own test chart, all of our products have been rigorously tested in the factory.
Certification--We have TUV、CE、ISO and quality management system certification.
High Quality --Our company uses the most advanced equipment to make the best quality products.
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a professional manufacture of waterproof connectors and terminal block with our own factory and trading company.
Q2: What is the lead time?
A2: Normally speaking, it asks for 5-30 days for massproduction except during observed holidays.
Q3: How about OEM/ ODM Service?
A3: Our professional R&D dept develop different products for different target prices and different requirements.
Q4: Where are the photovoltaic cables used?
A4: Photovoltaic cables are used to connectsolar cell modules and inverters.
Q5: What other features do photovoltaic cables have?
A5: Conditions of use -40℃~90℃,low smoke,halogen free,flame retardant,anti ultravioletradition.
