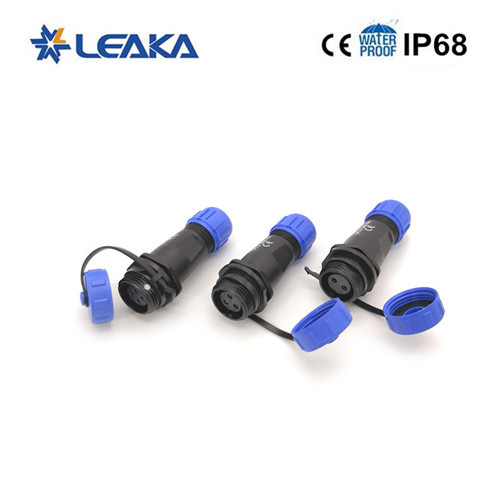

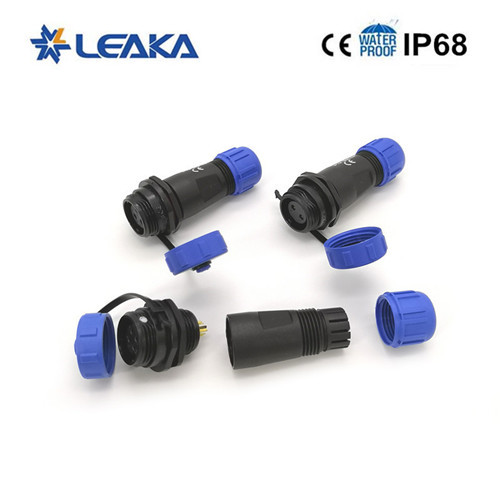

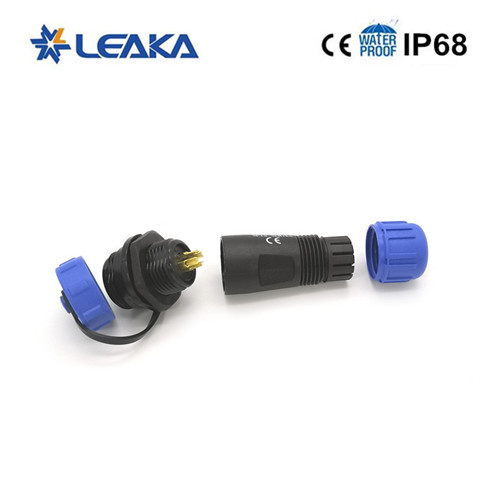

SP2110/S2 SP2111/P2 waterproof electrical connector sp21 ip68 panel mount connector

No.SP2111/10

The SP21 Compare to SP13/17, SP21 has a larger shell and higher current range, it is a strong and tough connector designed for indoor/outdoor and underwater IP68 environments. It is ideal for any application which needs watertight connection conditions.

Description

Overview

Places of Origin:	Xiamen,Fujian, China
Brand Name:	Leaka
Model Number:	SP2111/10
Type:	BNC
Application:	Power
Gender:	male/female
Product name:	SP2110/S2 SP2111/P2 waterproof electrical connector sp21 ip68 panel mount connector
MOQ:	1 Sets

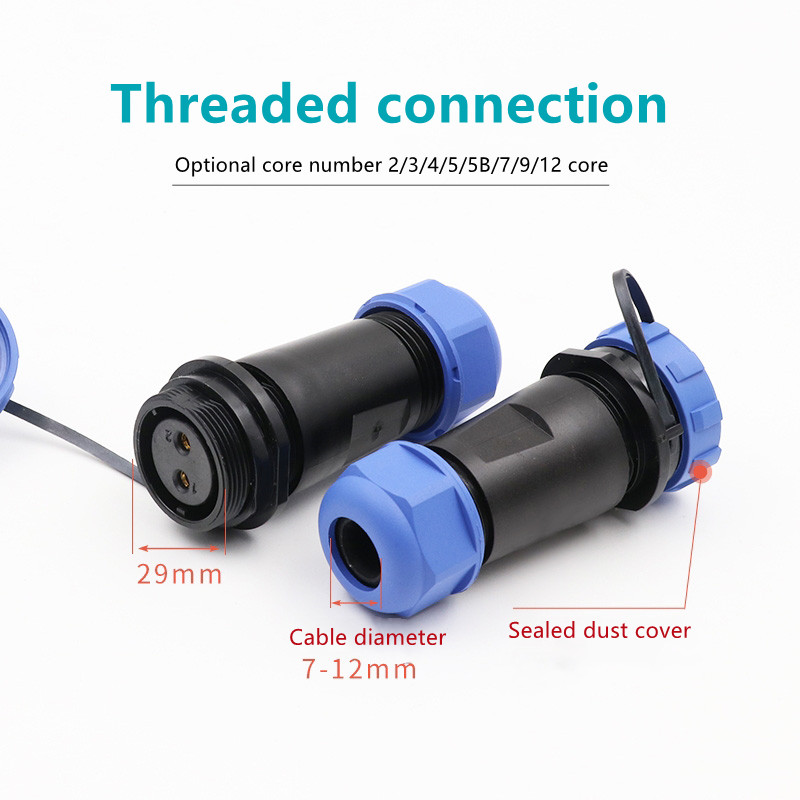

Coupling:	Threaded
Rated voltage :	500/400V
Temperature Range:	-40℃~+85℃
Termination:	Solder / Crimp / Screw
Mating Cycles:	500

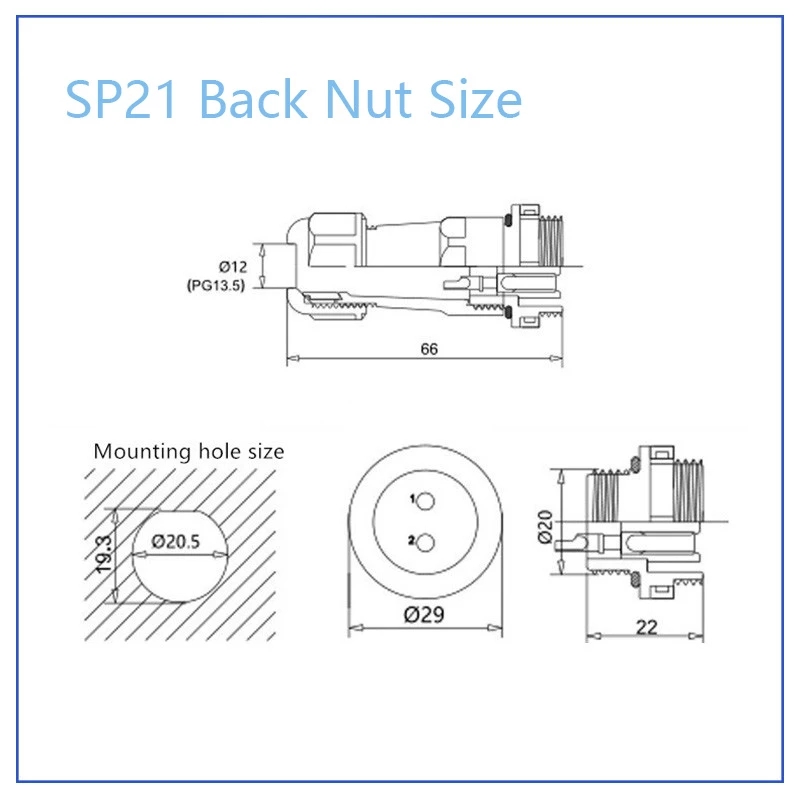

Cable outer diameter range:	SP21: 4.5-7mm , 7-12mm
Contact material:	Brass Gold Plated
Insert material:	PPS,max temperature 260℃
Shell material:	PC, Nylon66, fire resistance: V-0
Payment terms:	100% T/T, Western Union , Paypal,Mastercard crecit card,VISA,e-Checking

Packaging & Delivery

Selling Units: Single item

Single package size: 11X8X4 cm

Single gross weight: 0.300 kg
Lead Time:

Quantity(Sets)

1 - 10

11-100

101-1000

>1000

Est. Time(days)

7

25 35

To be negotiated

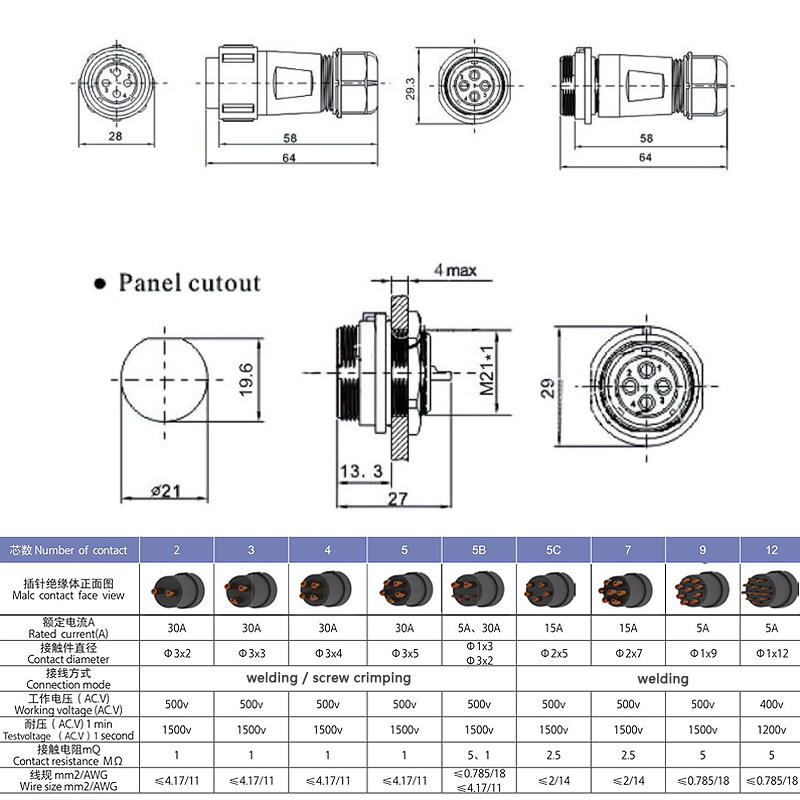

Product Description

Product name

SP2110/S2 SP2111/P2 waterproof electrical connector sp21 ip68 panel mount connector

Insulation resistance 2000MΩ

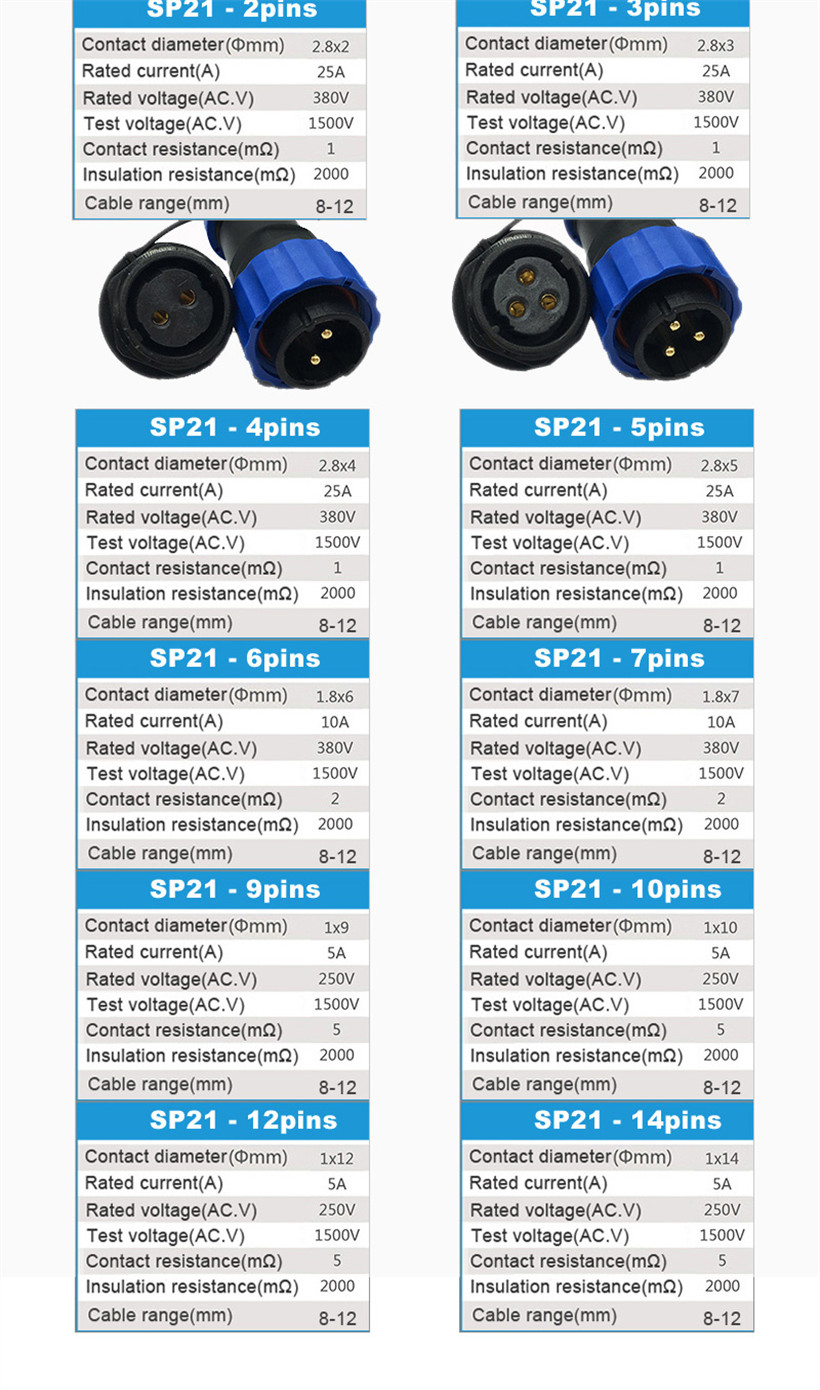

Rated current

30//15/5A

Rated voltage

500/400V

Contact resistance 1/2.5/5 mΩ

Material and spec

Coupling Threaded

Shell material PC: Panel connector shell, Inser housing shell
Nylone66: Locking nut , Back shell, Compressing nut,Retaining nut
Fire resistance: V-0

Insert material PPS, max temperature260℃

Contact material Brass with gold plating

Termination Solder: SP11, SP13, SP17, SP21,SP29
Crimp: SP17, SP21, SP29
Screw: SP21,SP29 (∅2.5，∅3，∅3.5mm contact)

IP rating IP68

Mating cycle 500

Temperature range -40℃~+85℃

Insulation resistance (MΩ) 2000

Application

Suitable for high-speed rail, ships, LED displays, lighting, solar energy, new energy vehicles, precision machinery and other equipment, electrical connection wires and cables directly conductive transmission signals.

Company Profile

Certifications

Packaging & Shipping

FAQ
Q1: Are you trading company or manufacturer?
A1: We are professional manufacturer in connectors and wire harness
products. And we trade our products with our clients directly.

Q2: Can you do OEM and ODM?
A2: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.

Q3: When can I get the price?
A3: Usually we quote within 1 hours after we get your inquiry.

Q4: What’s your MOQ?
A4: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.

Q5: Do you provide sample ? Is it free?
A5: If the sample is low value, we will provide the free samples to test the quality. But
for some high value samples, we need to collect the sample charge.We will send the samples by express. Please pay the freight in advance and we will refund the freight when you place a larger order with us.

Q6: What is the normal lead time?
A6: For stock products, we will send the goods to you within 7 days after receiving the payment.If we don't have inventory, the production time is usually 5-15 days.

Q7: What is your term of payment?
A7: Sample order: 100% prepayment before shipping;
Bulk order:30% down payment before producing and 70% balance payment before shipping.
Q8: Which payment form you can accept?
A8: T/T, Mastercard credit card,VISA,e-Checking,Western Union, PayPal etc. We accept any convenient and swift payment

SP2110/S2 SP2111/P2 waterproof electrical connector sp21 ip68 panel mount connector

Description

Download

CONTACT US

Coupling	Threaded
Shell material	PC: Panel connector shell, Inser housing shell Nylone66: Locking nut , Back shell, Compressing nut,Retaining nut Fire resistance: V-0
Insert material	PPS, max temperature260℃
Contact material	Brass with gold plating
Termination	Solder: SP11, SP13, SP17, SP21,SP29 Crimp: SP17, SP21, SP29 Screw: SP21,SP29 (∅2.5，∅3，∅3.5mm contact)
IP rating	IP68
Mating cycle	500
Temperature range	-40℃~+85℃
Insulation resistance (MΩ)	2000
