Products Feature
Pin-type cold-pressed terminals play an important role in electrical connections
1. Wire connection:
Used to connect the ends of wires or wires to connect them to other electrical devices or circuits. They provide a reliable way of electrical connection to ensure the transmission of signals or power.
2. Ensure electrical contact:
Through cold-pressed connection technology, good electrical contact is established between the wire and the conductive material in the terminal slot. This connection method can provide stable current transmission, reduce contact resistance and signal loss.
3. Simplify installation:
Compared with traditional welding connections, the installation of pin-type cold-pressed terminals is easier and faster. No welding equipment or heating tools are required. Just use a special tool to insert the wire into the slot of the terminal and apply pressure to complete the connection. This greatly simplifies the installation process of the wire.
4. Removability:
With removability, the connection and removal of the wire are more convenient. When the wire needs to be replaced or repaired, the terminal can be easily removed without rewiring, saving time and cost,
5. Provide mechanical strength:
The design and material selection can provide good mechanical strength to ensure the firmness of the connection. They can withstand a certain amount of tension, vibration and impact to prevent the wire from accidentally falling off or loosening.
6. Widely used:
They are widely used in many fields and applications, including electronic equipment, instrumentation, communication equipment, household appliances, automotive electronics, etc. They are suitable for low voltage and low current applications and can meet different wire diameters and connection requirements.

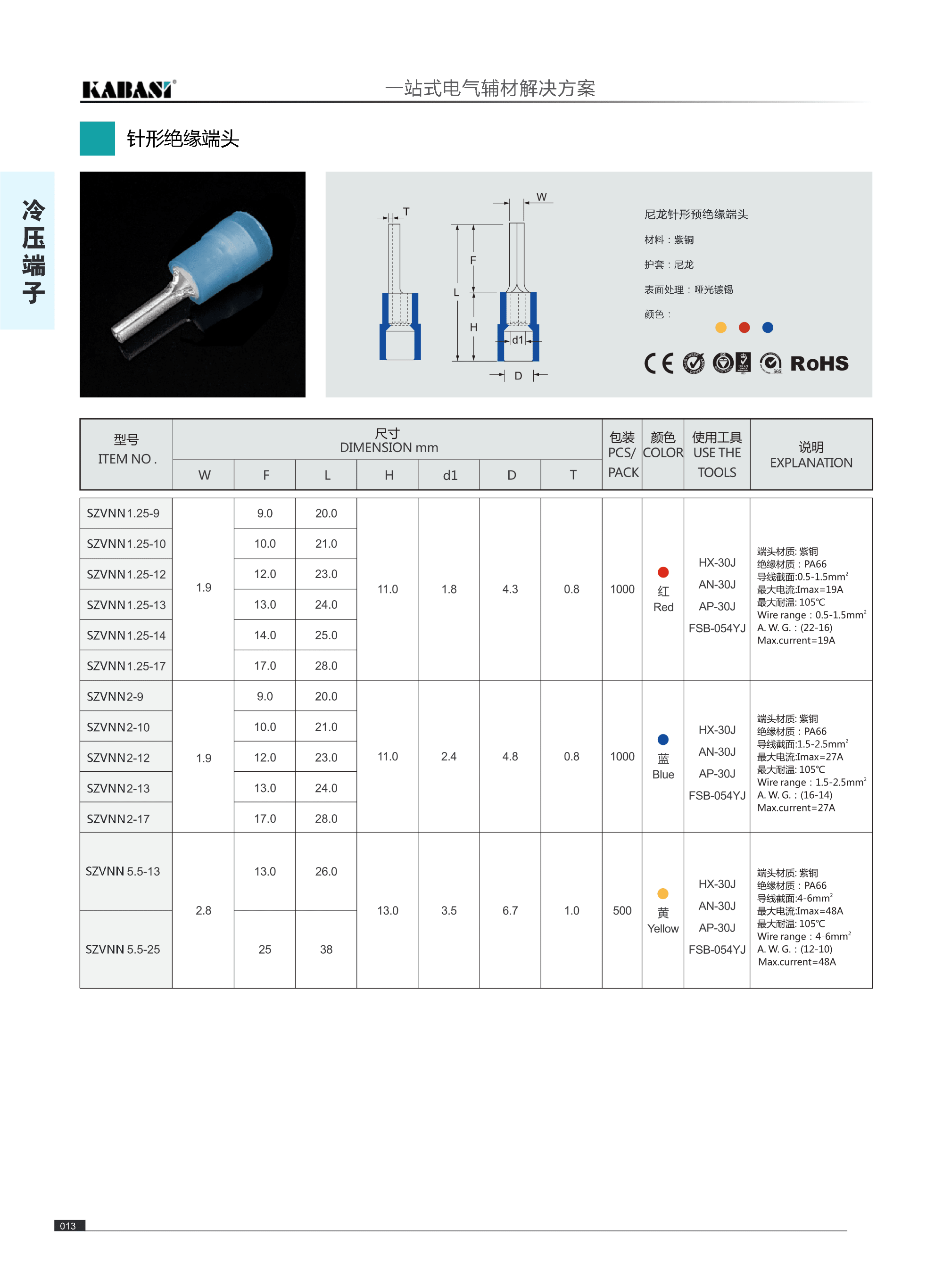

| Type |
Crimp Terminal |
| Color |
Blue/Yellow/Red |
| Lead Section |
0.5-1.5mm² /1.5-2.5mm² / 4-6mm² |
| Max Current |
Imax=19A /Imax=27A /Imax=48A |
| Material |
Copper |
| Insulation |
PA66 |
| Surface Treatment |
Matte tin plating |
| A.W.G |
22-16 AWG /16-14 AWG /12-10 AWG |
| Max. temperature resistance |
105℃ |

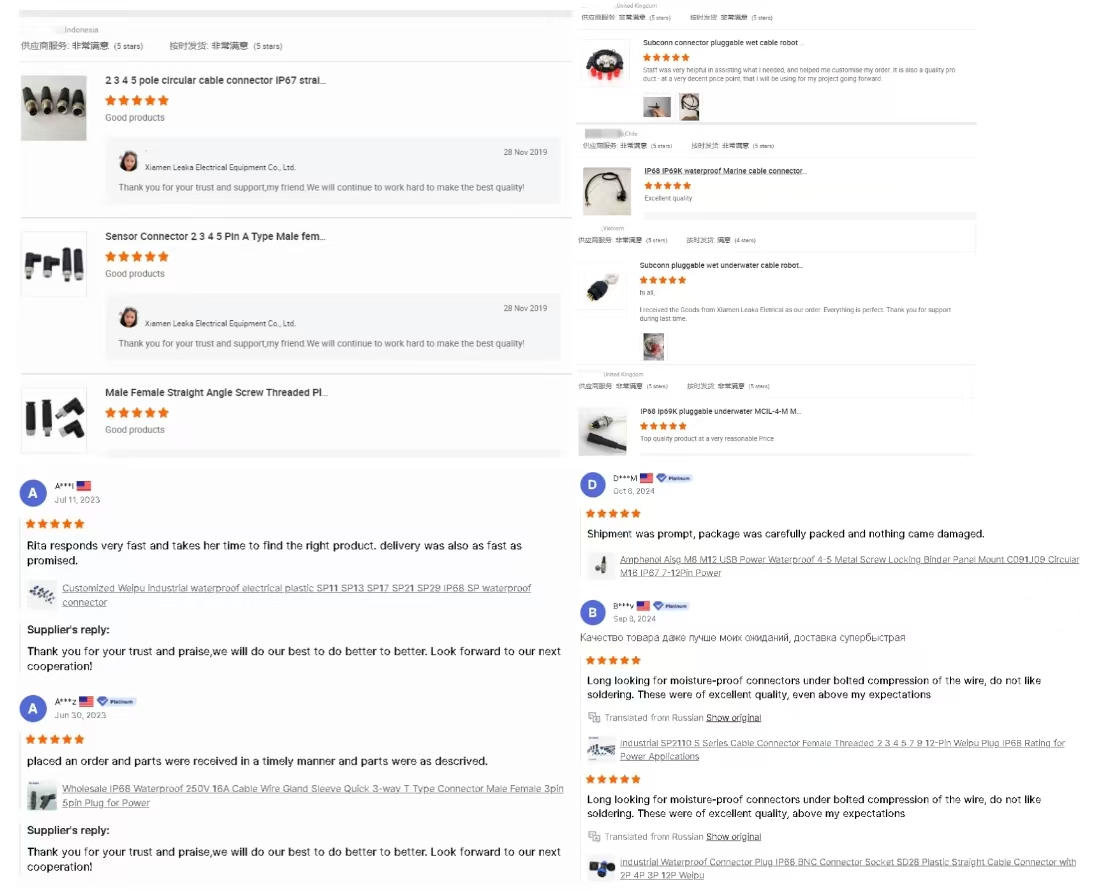

Customer Review
