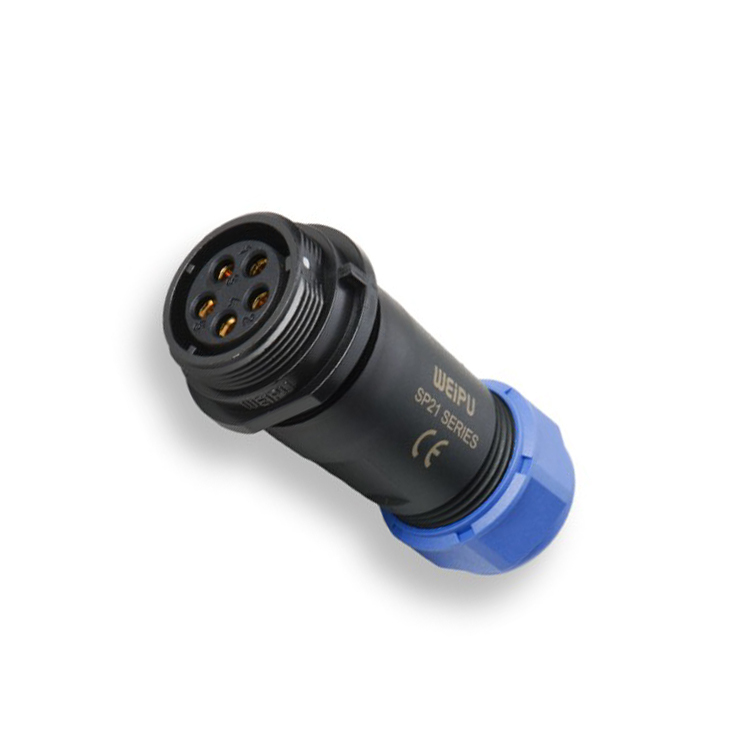

| Product name | Threaded female SP2111 S series plastic 2 3 4 5 7 9 12 pins in-line cable connector |
| Wire size | 0.785m㎡-4m㎡/ 11AWG-18AWG |
| Coupling | Threaded |
| Shell material | PC, Nylon66, fire resistance: V-0 |
| Contact material | Brass with gold plating |
| Insert material | PPS, max temperature 260℃ |
| Rated current | 30A,15A,5A |
| Rated voltage | 400V,500V |
| Insulation resistance | 2000mΩ |
| Contact resistance | 2mΩ,5mΩ,10mΩ |
| Features | weatherproof, stable, secure, threaded coupling |
| Certificate | UL,CE,CCC,ISO |
| Supply ability | 50000 pcs per month |
| Mating cycle | >500 |
| Temperature | -40℃~+80℃ |
| IP rating | IP68 |
| Flame rating | UL94-V0 |
| OEM | Yes,we accept |
| Delivery time | 3-45 days depends on buying stockage or OEM order |
