- Product Features

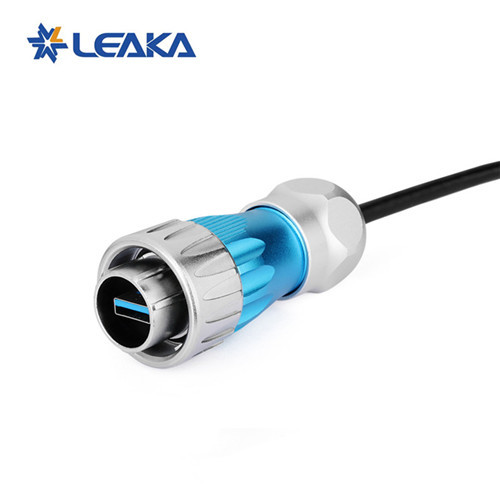

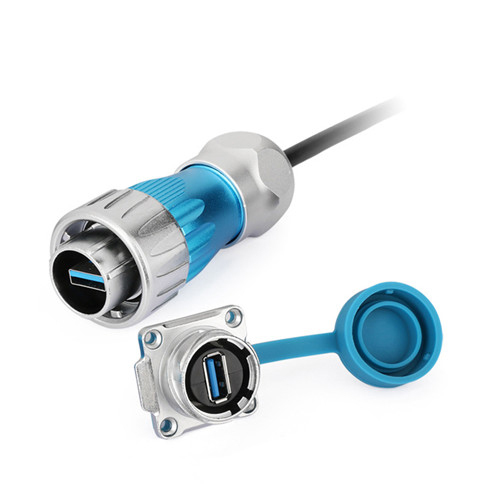

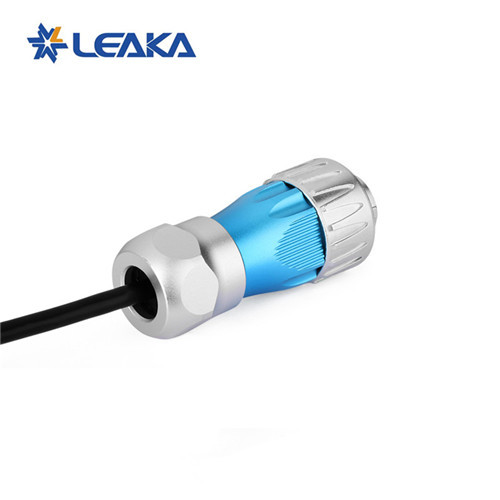

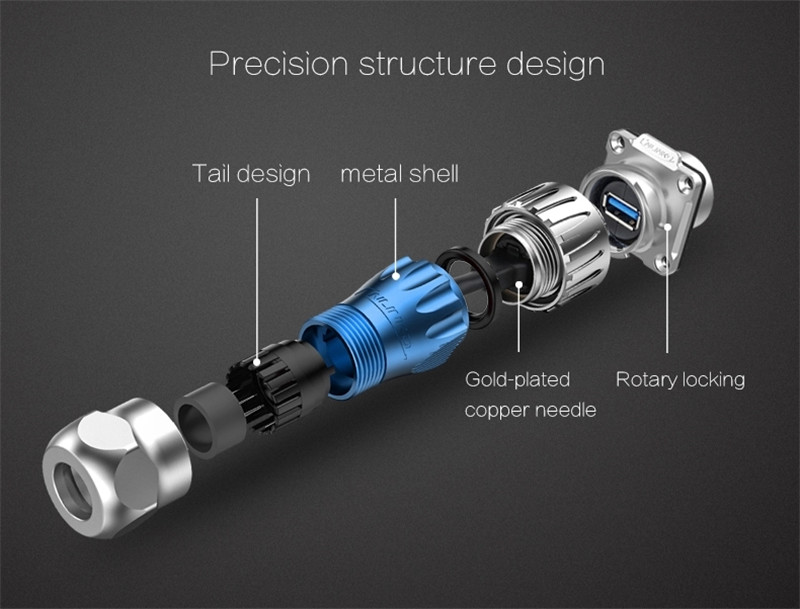

- 1) All-metal Shell Design
- Adopting high-strength zinc alloy or aluminum alloy, it has excellent vibration and impact resistance, can effectively resist complex mechanical external forces, and ensure stable operation in vibration or impact environment.

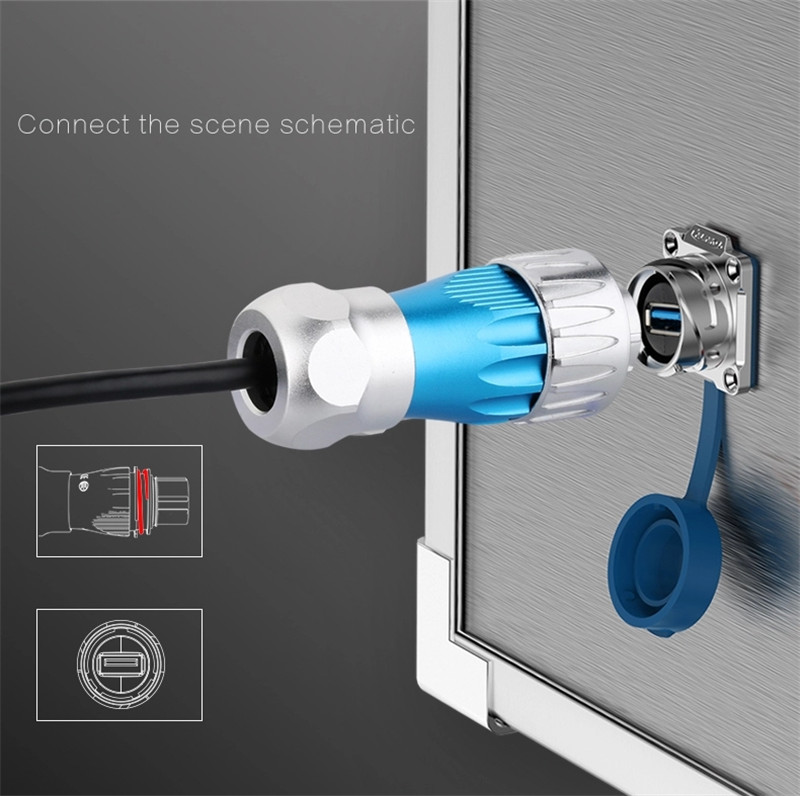

- 2) Military Standard Locking Structure

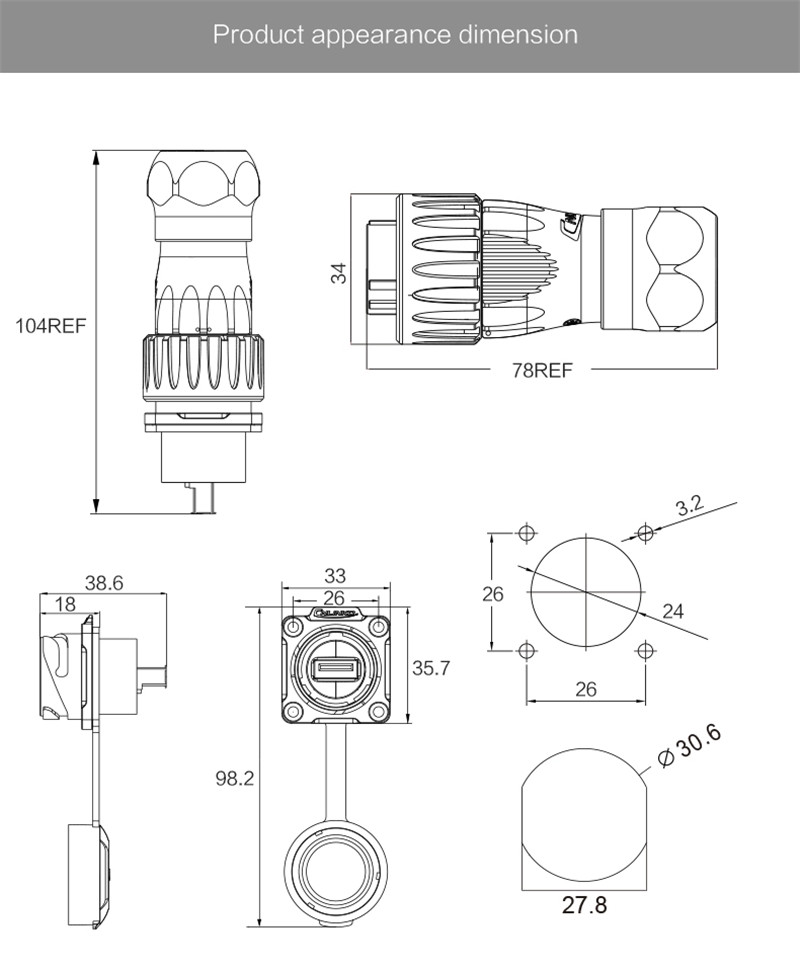

- Equipped with a three-point spiral locking mechanism, it meets military standards, ensures connection reliability, and supports 24mm mounting holes to adapt to various device interface requirements.
- 3) Multi-Scenario Adaptability
- Both USB2.0 and USB3.0 are configured. The former has a transmission rate of 480Mbps and the latter has a transmission rate of 5Gbps, which can match the differentiated solution requirements of different transmission rates.

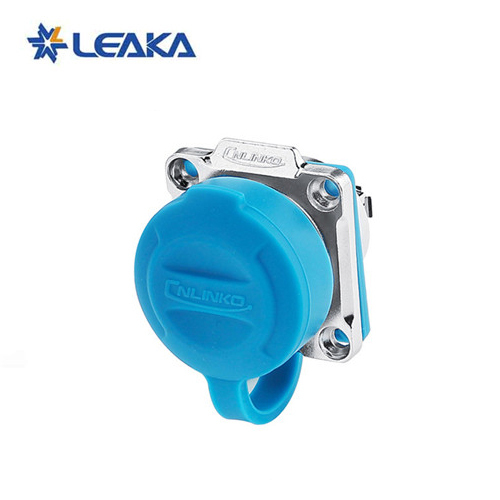

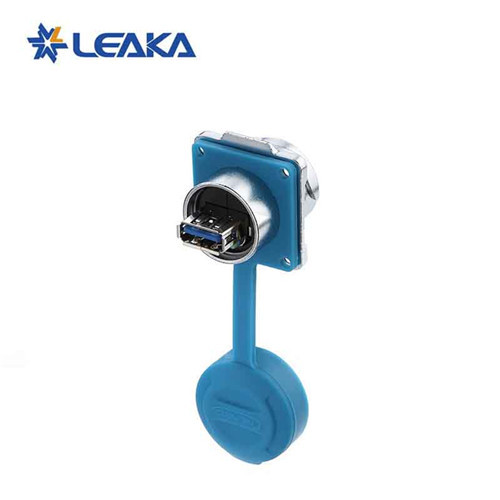

- 4) Dustproof and Electromagnetic Protection
- The shell adopts a metal and silicone dust cover, combined with alloy protective materials, to reduce the electromagnetic interference generated by external high current, while meeting the dustproof requirements.
- 5) Optimization of Cable Length and Interface
- The USB interface is standardly equipped with a 0.5-meter cable length, which can be customized according to customer needs; the interface is 6μm gold-plated to improve plug-in resistance and electrical stability.
| Protection level |
IP65/IP67 |
| Cable specifcation |
26AWG-24AWG |
| Diameter range |
ф5mm ~ф6.5mm |
| Contact diameter |
9PIN(3.0); 4PIN(2.0) |
| Current rating |
1.5A |
| Withstanding voltage |
1000V |
| Contact resistance |
<30mΩ |
| Insulation resistamce |
>500mΩ |
| Durability |
500 times |
| Termination |
Solder |
| Temperature range |
-40℃~+80℃ |
| Flammability Rating |
UL94-V0 |
| Housing & Insulation Material |
High-performance engineering plastics |
| Hardware Material |
Zinc alloy(pearl hard chrome) |
| Pin Contacts Material |
Copper alloy(gold-plated 4U) |
1) Improve Production Efficiency
Through USB connectors, industrial machinery can achieve fast data exchange, thereby improving production efficiency and shortening production cycles.
2) Optimize Equipment Performance
The high-performance data transmission of USB connectors helps to improve the precise control and response speed of industrial machinery and optimize equipment performance.
3) Reduce Costs
The widespread use of USB connectors reduces the interface adaptation cost of industrial equipment, while reducing the maintenance and replacement costs caused by interface problems.
Applications
1) CNC Machine Tools
CNC machine tools are the cornerstone of the manufacturing industry. USB connectors are used here to transmit processing data and programs, and provide interfaces for external devices such as handheld programmers.
2) Industrial Robots
Industrial robots need to communicate with various sensors and control units. USB connectors have become an indispensable part of robots due to their stability and high-speed transmission capabilities.
3) Automated Production Lines
In automated production lines, USB connectors are used to connect various actuators and controllers to ensure the smooth progress of the production process.
4) Monitoring Systems
In industrial monitoring systems, USB connectors are used to connect cameras and storage devices to achieve fast transmission and storage of video data.
