Products Description
Insulated terminals are components specially designed for wire terminals. Their main function is to protect and isolate the ends of wires, prevent direct contact between wires or between wires and other metal parts, and thus avoid short circuits, electric shocks or other safety issues. Insulated terminals are usually made of insulating materials, such as plastic or rubber, to ensure good electrical insulation performance.
In modern electrical equipment and electronic products, the role of insulated terminals cable lug cannot be underestimated. They not only protect wires from environmental factors and physical damage, but also greatly reduce the risk of circuit failures and safety accidents. For example, in automotive electrical systems, the proper use of insulated terminals can effectively prevent fires and vehicle failures caused by short circuits or poor contact of wires.

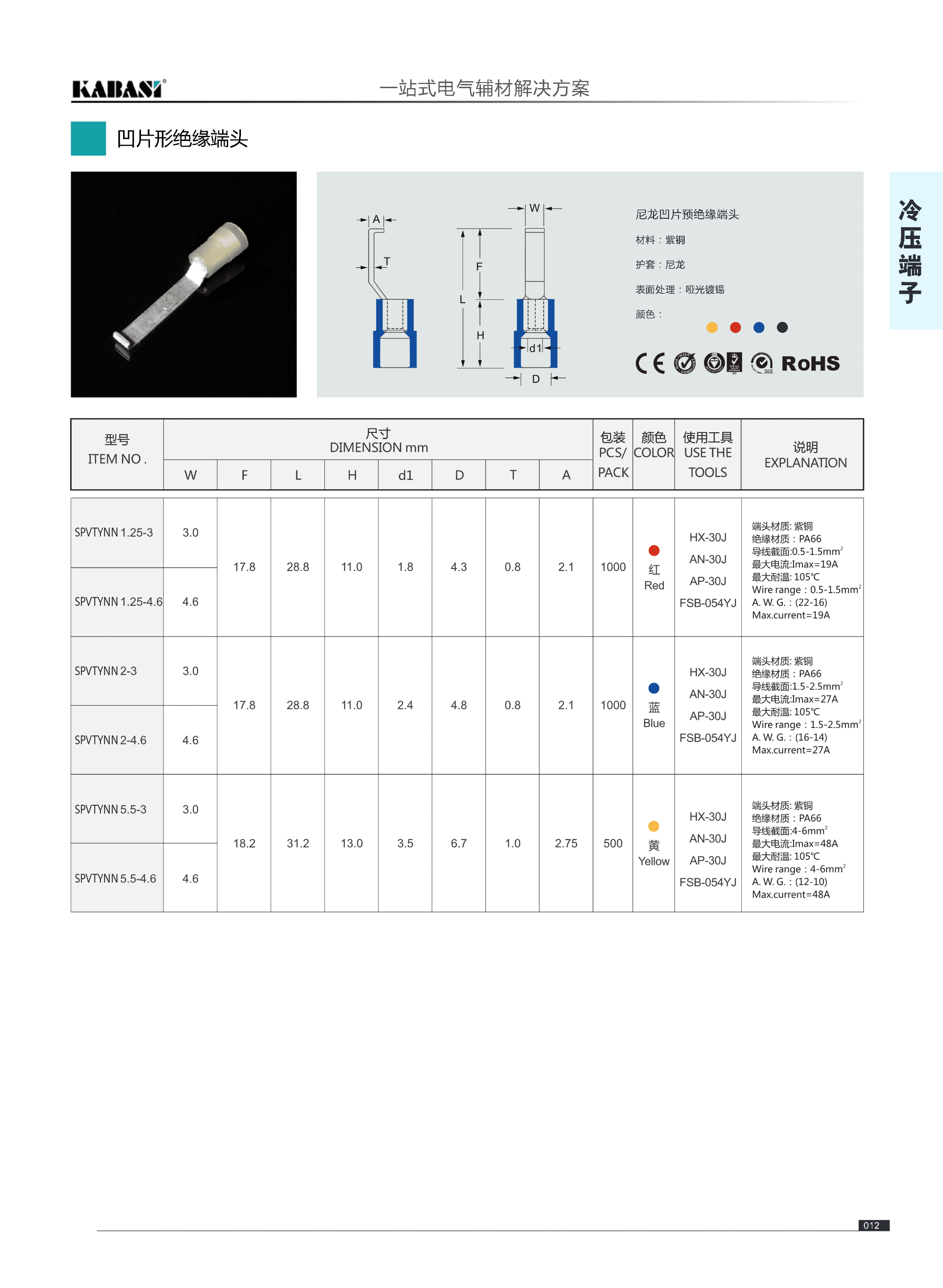

| Type |
Crimp Terminal |

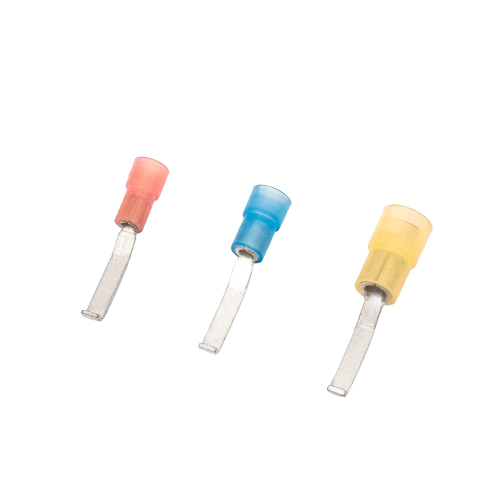

| Color |
Blue/Yellow/Red |
| Lead Section |
0.5-1.5mm² /1.5-2.5mm² / 4-6mm² |
| Max Current |
Imax=19A/Imax=27A/Imax=48A |
| Material |
Copper |
| Insulation |
PA66 |
| Surface Treatment |
Matte tin plating |
| A.W.G |
22-16 AWG /16-14 AWG /12-10 AWG |
| Rated Voltage |
220V |
| Max. temperature resistance |
105℃ |
Product Advantages
Structural Integrity and Design Efficiency
These terminals feature a robust design optimized for streamlined assembly, integrating naturally with modular connection systems favored by terminal block manufacturers. The matte tin plating on the copper substrate delivers enhanced corrosion resistance, extending operational lifespan. The precise vinyl insulation thickness and color coding advance visual management during installation, creating compatibility with custom terminal block configurations. This structural design reduces error rates and supports scalable manufacturing processes in industrial production.
Optimized Performance and User-Centric Benefits
The terminals guarantee stable electrical performance through superior conductivity and strong mechanical retention once crimped, valued by terminal block suppliers focused on quality assurance. Safety is enhanced by the nylon vinyl insulation’s resistance to abrasion and heat, reducing the risk of short circuits and failures. Their compatibility with a wide range of wire gauges simplifies inventory management and procurement, delivering measurable ROI through improved system uptime and fewer maintenance interventions.
Products Application
1. Smart grid integration:
With the popularization of smart grids, the demand for more efficient, reliable and remotely monitored power transmission equipment has increased, driving the trend of concave pre-insulated terminals towards intelligence and high efficiency.
2.Application of new energy technologies:
In the fields of wind power, solar energy and other new energy sources, high-performance, weather-resistant concave pre-insulated terminals designed for specific environments and conditions have become the new favorites in the market.
3.Green manufacturing and sustainability:
The increase in environmental awareness has prompted manufacturers to adopt more environmentally friendly materials and production processes to develop products with long service life and easy recycling.
Company Profile
Testing Equipment
FAQ
What materials are used in your vinyl-insulated lipped blade terminals?
Our vinyl-insulated lipped blade terminals are made from high-quality copper with a matte tin plating to ensure excellent conductivity and corrosion resistance. The vinyl insulation is crafted from nylon (PA66), providing strong electrical and mechanical protection.
Can I request custom configurations for your terminal blocks?
Yes, we provide customization options for our custom terminal blocks, including packaging, colors, and logos. Please contact our team directly to discuss your specific requirements and receive tailored solutions.
Which wire gauges are compatible with these copper cable lugs?
Our copper cable lugs support wire gauges ranging from 22 to 10 AWG, covering lead sections from 0.5 mm² to 6 mm². This versatility accommodates different current ratings and is suitable for various applications requiring terminal blocks.
What installation practices ensure the reliable performance for these terminals?
To achieve secure, reliable connections, we recommend using proper crimping tools matched to the terminal size and wire gauge. The color-coded vinyl insulation aids in correct identification, improving installation efficiency and system safety.
