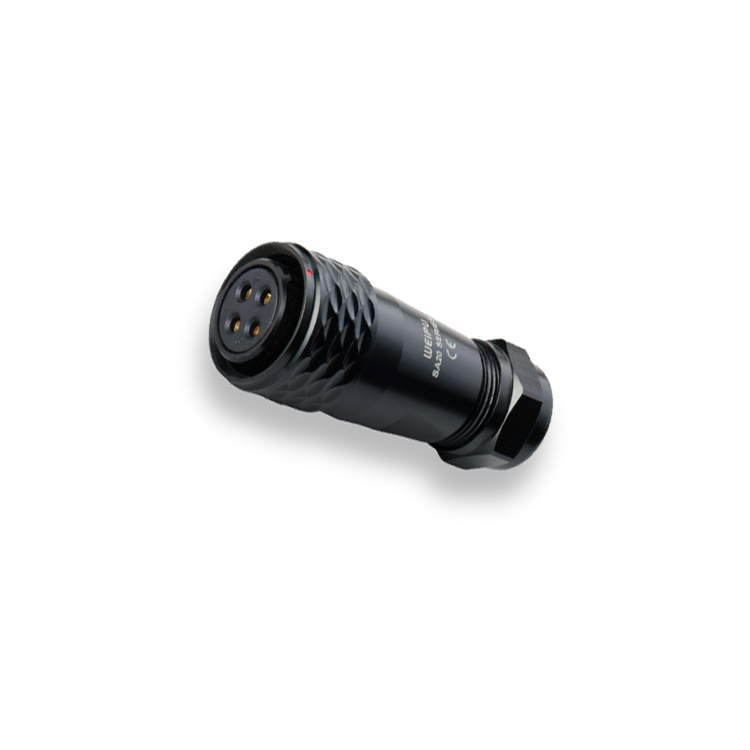

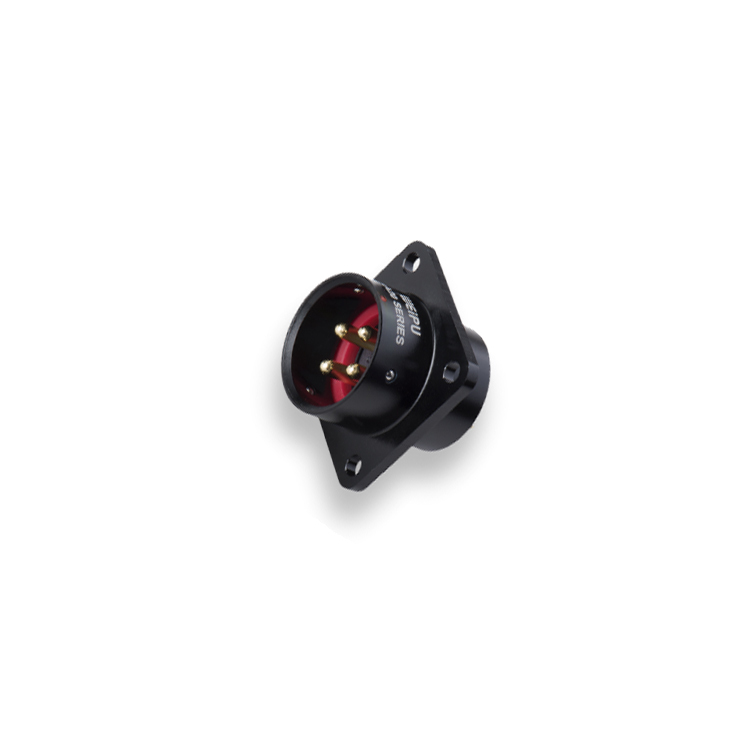

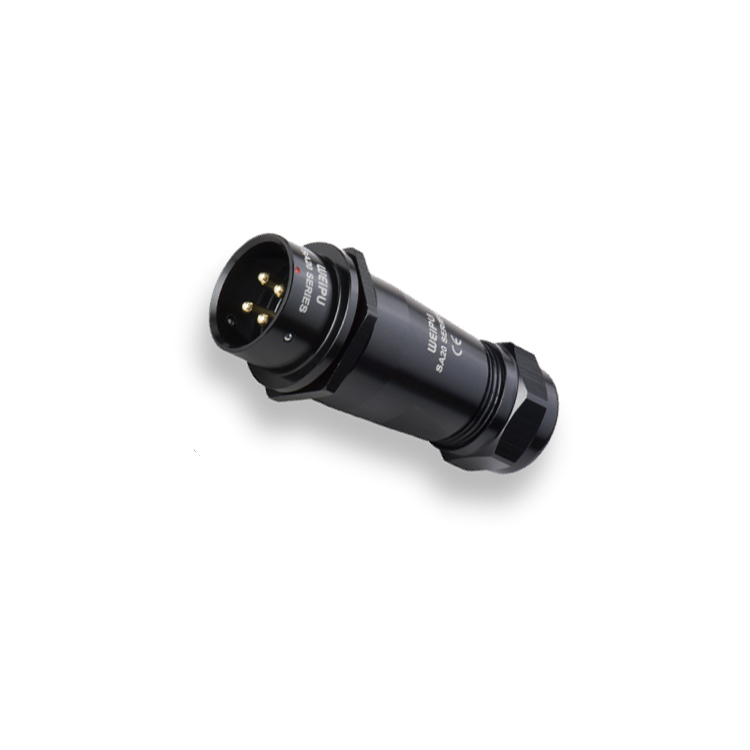

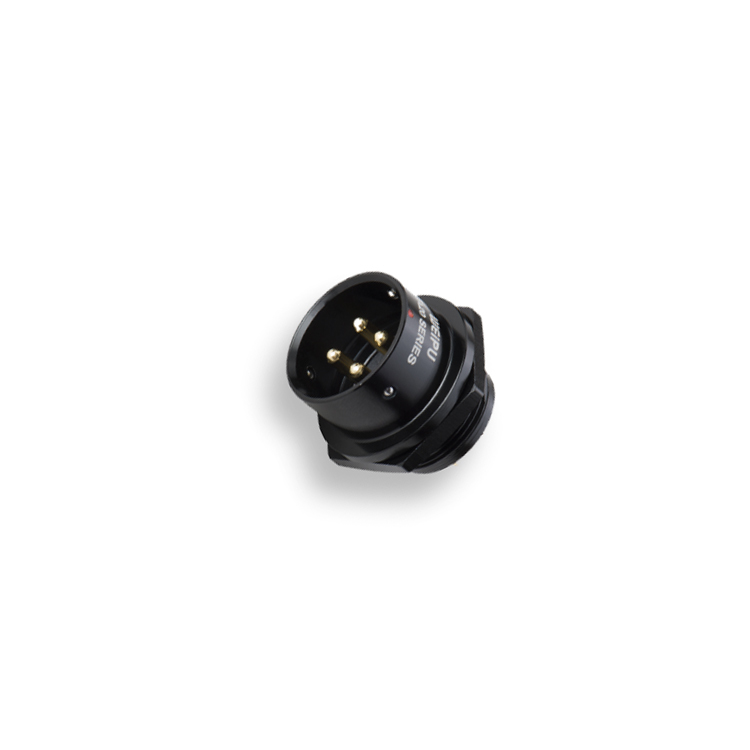

Exporters Weipu IP67 crimp SA20 plug socket electrical connector

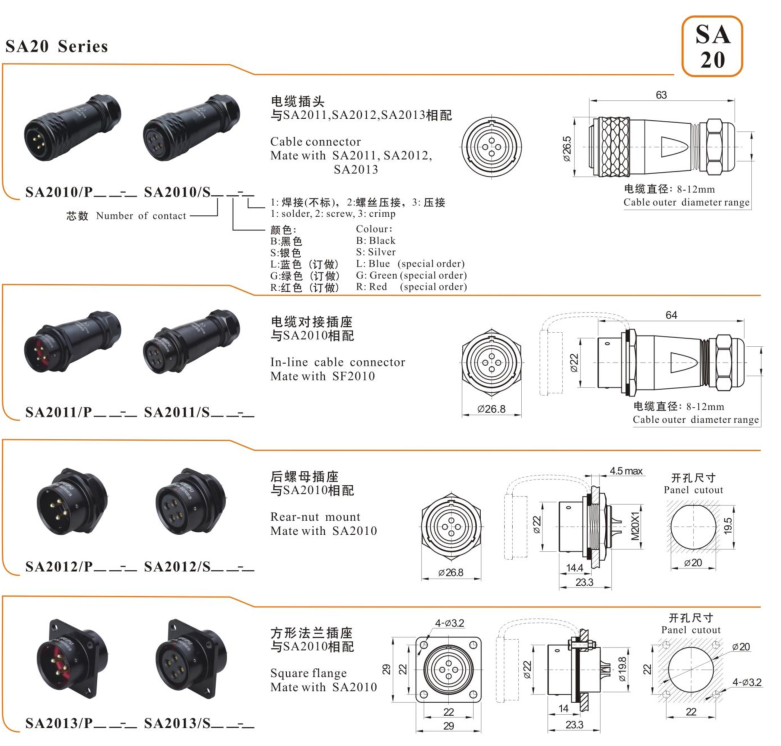

The Weipu SA20 connector series is designed for applications requiring fast and secure connections, featuring a medium-sized build for ease of handling.
Construction: Constructed from anodized aluminum, the SA20 connectors offer durability and reliability in various environments.
Variants: Available in different pin configurations, ranging from 2 to 15 pins, providing flexibility for different electrical requirements.
Waterproof: With an IP67 rating, these connectors ensure protection against dust and water ingress, making them suitable for outdoor and industrial applications.
Applications: Commonly used in various industries such as aviation, automotive, and outdoor power, where reliability and durability are paramount.

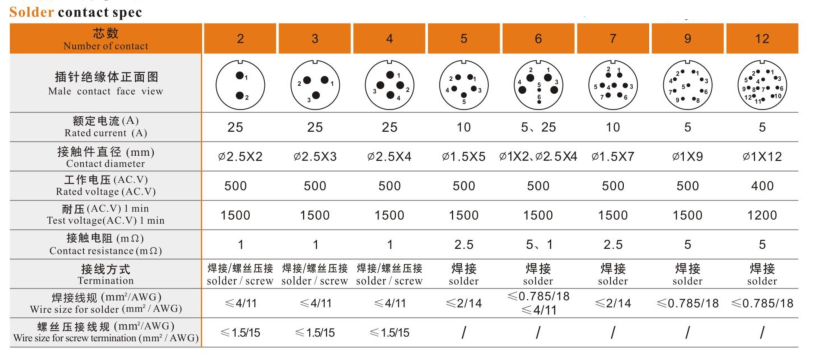

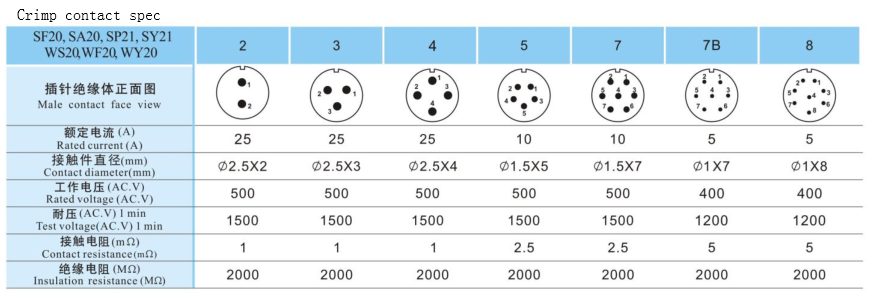

| Rated current |
5A,10A, 25A |
| Rated voltage |
400V, 500V |
| Mating cycle |
>500 |
| Temperature |
-40℃~+80℃ |
| IP rating |
IP67 |
