Product Features

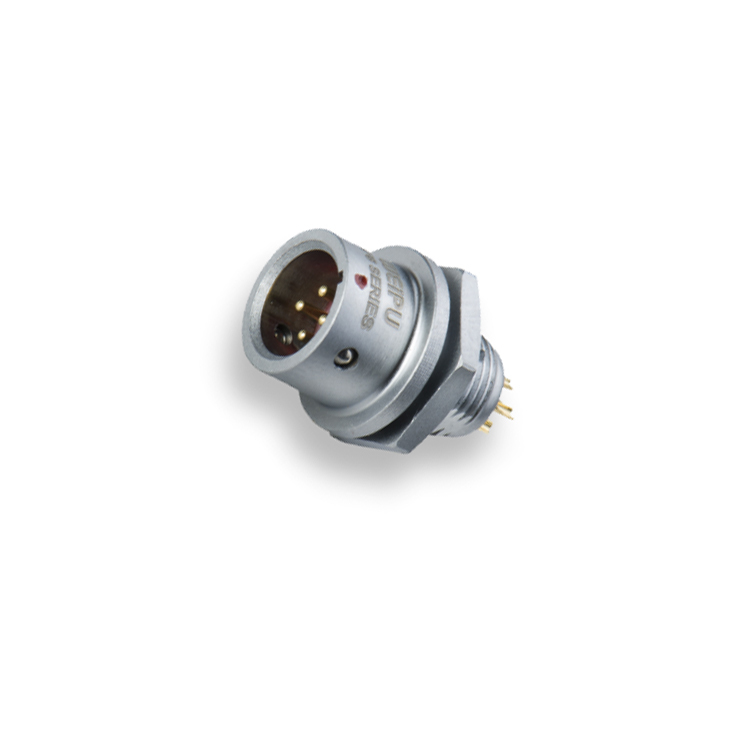

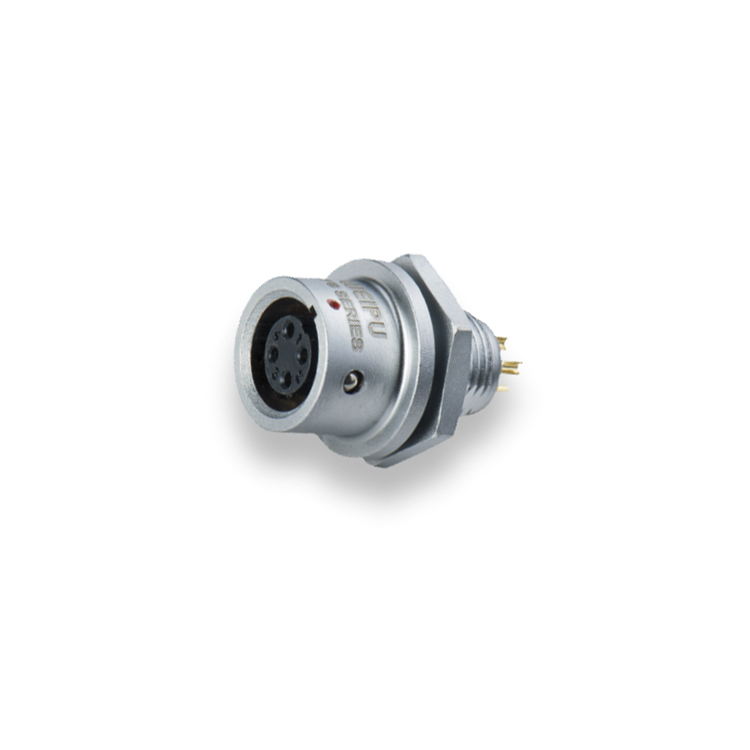

WEIPU SF612 Push Pull Electrical Aviation Connector 2 3 4 5Pin Male Plug Female Socket for Blackmagic 4K Camera BMPCC
1) High-quality Materials: SF6 connectors are made of high-quality materials to ensure the durability and reliability of the product.
2) Precision Design: The product is exquisitely designed, small in size, beautiful in appearance and easy to use.
3) High Protection Level: SF6 connectors have a high protection level and are suitable for application requirements in various complex environments, such as industrial automation, aerospace, energy transmission and medical equipment.
4) Push-Pull: The push-in quick locking design is adopted for easy operation and reduced installation space.
5) Wide Application: SF6 series plugs and sockets are widely used in Blackmagic Pocket Cinema 4k Camera (BMPCC 4K Camera) and other fields such as robots, medical equipment, mobile energy storage equipment, etc. to meet different application requirements.
-
| Wire size |
≤0.785m㎡ / 18AWG |
| Coupling |
push pull |
| Shell material |
Brass with chrome plating |
| Contact material |
Brass with gold plating |
| Termination |
Solder, Crimp or Screw |
| Rated current |
10A |
| Rated voltage |
500V |
| Insulation resistance |
2000mΩ |
| Contact resistance |
10mΩ |
| Certificate |
UL,CE,CCC,ISO |
| Supply ability |
50000 pcs per month |
| Mating cycle |
>500 |
| Temperature |
-40℃~+80℃ |
| IP rating |
IP44/IP68 |
| Flame rating |
UL94-V0 |
| OEM |
Yes,we accept |
| Delivery time |
3-45 days depends on buying stockage or OEM order |
Applications
- WEIPU SF612 connector is a quick-plug self-locking circular waterproof connector with compact structure, easy installation, long plug-in life (more than 500 times), and can be customized according to customer needs. It is mainly used in the following fields:
- 1) Industrial Automation: suitable for industrial robots, CNC equipment and other scenes, meeting the signal transmission requirements in harsh environments such as humidity, vibration, and high temperature.
- 2) Outdoor Equipment: can be used for security surveillance cameras, sensors, alarm systems, etc., with IP67/IP68 waterproof and dustproof performance.
- 3) Medical Equipment: suitable for monitors, electrocardiographs, ultrasound equipment, etc., to ensure reliable connection of precision instruments.
- 4) Energy Field: used for power transmission and control systems in power stations, wind power generation equipment, and solar power generation equipment.
- 5) Communication and Transportation: can be used for communication base stations, rail transit signal systems, etc., supporting fast connection and disconnection.
-
