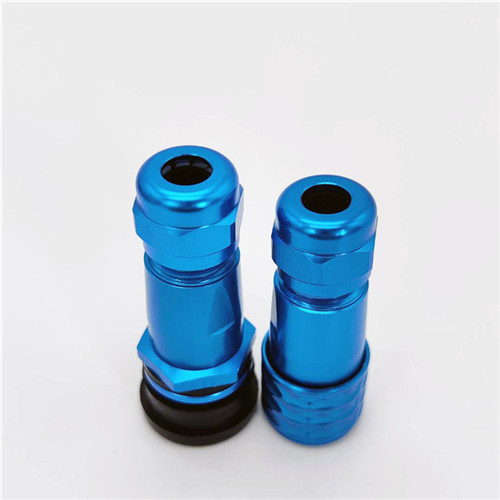

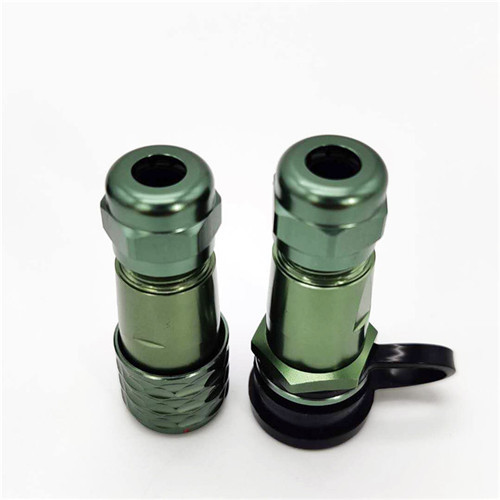

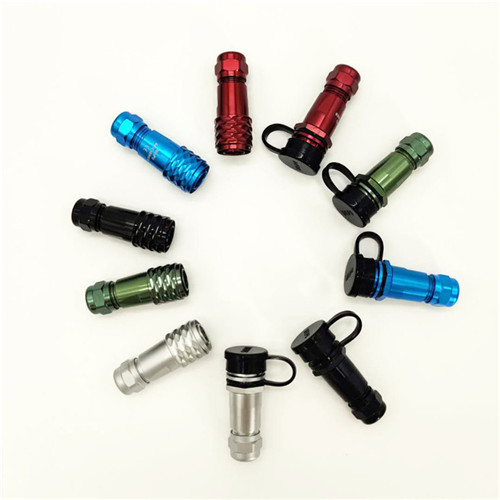

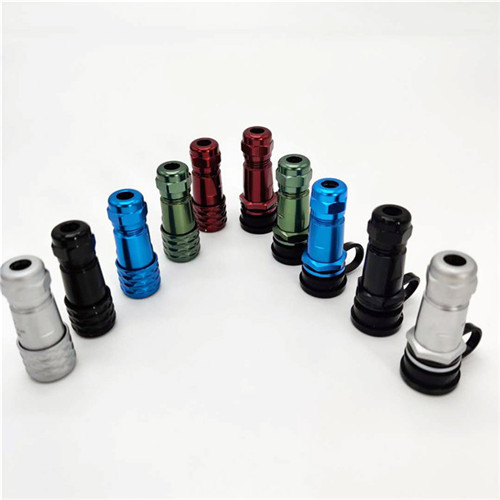

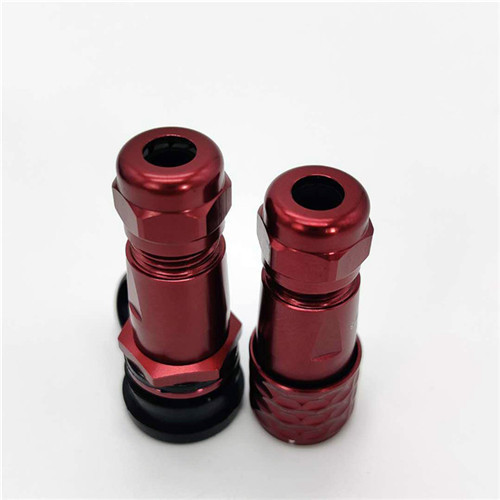

Wholesales Industrial waterproof SA1210 2 3 4 5 6 7 9 pin electric metal female connector weipu push pull ip67

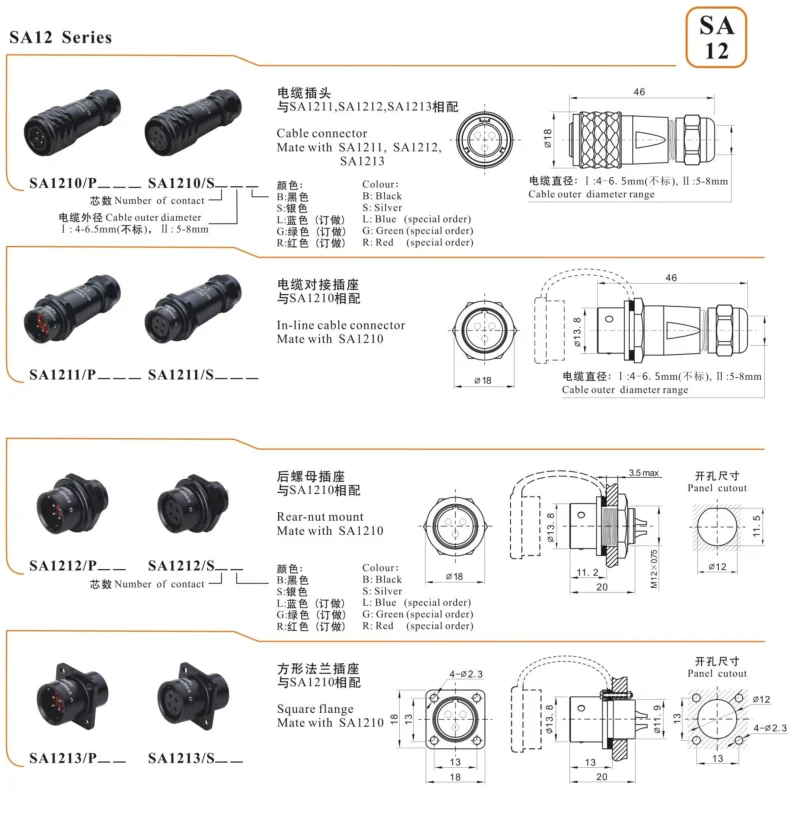

SA12 Series
SA series is IP67 connector made of anodized aluminium,especially designed for the high-end market,with push and pull coupling,It is one of our popular waterproof connectors.The stunning aluminium made shell made it widely used in many high-end areas,such as medical devices,high-end equipments,testing or measuring equipments,communication fiel etc.It can be used for both data and power.
|
Cable outer diameter range
|
4mm-6.5mm
|
|
Wire size
|
0.785m㎡ / 18AWG
|
|
Rated current
|
3A, 5A, 13A
|
|
Rated voltage
|
125V, 180V
|
|
Contact resistance
|
10mΩ, 5mΩ, 2mΩ
|
|
Insulation resistance
|
2000mΩ
|
|
IP rating
|
IP67
|
