| Wire size | ≤0.785m㎡ / 18AWG |
| Coupling | push pull |
| Shell material | Brass with chrome plating |
| Contact material | Brass with gold plating |
| Termination | Solder, Crimp or Screw |

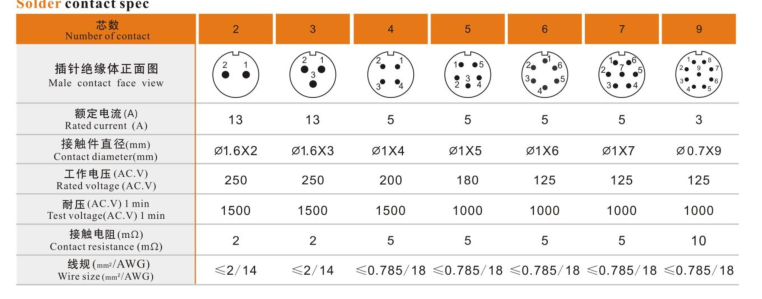

| Rated current | 3A, 5A, 13A |
| Rated voltage | 125V, 180V, 250V |
| Insulation resistance | 2000mΩ |
| Contact resistance | 10mΩ |
| Certificate | UL,CE,CCC,ISO |
| Supply ability | 50000 pcs per month |
| Mating cycle | >500 |
| Temperature | -40℃~+80℃ |
| IP rating | IP44/IP68 |
| Flame rating | UL94-V0 |
| OEM | Yes,we accept |
| Delivery time | 3-45 days depends on buying stockage or OEM order |
Diffferent cores have different price,pls feel free to consult me for any questions!!
