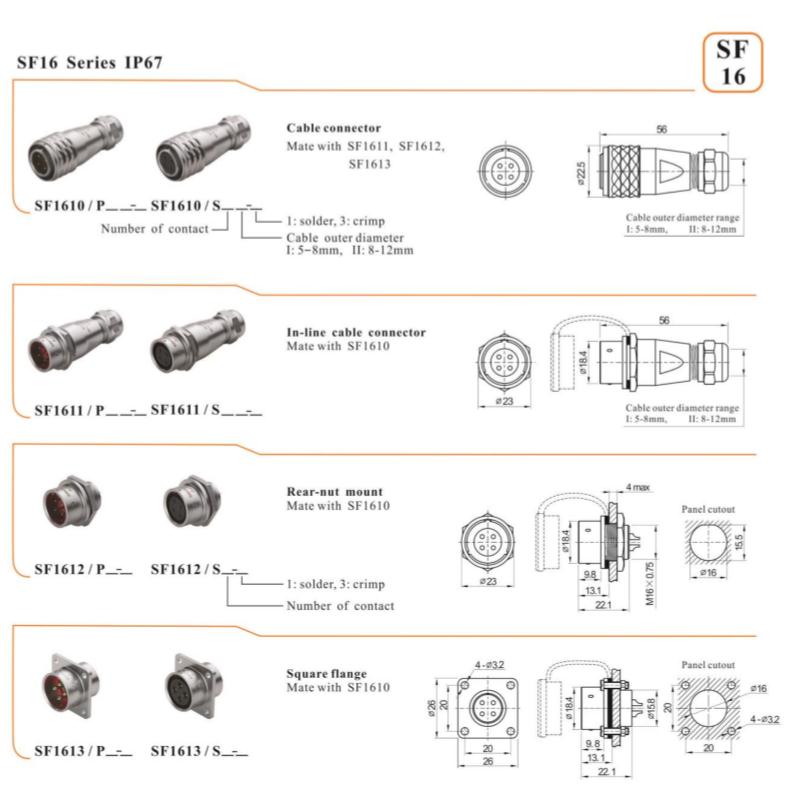

| Series | SF1610/P_ SP1610/S_ SF1611/P_ SF1611/S_ SF1612/P_ SF1612/S_ SF1613/P_ SF1613/S_ |

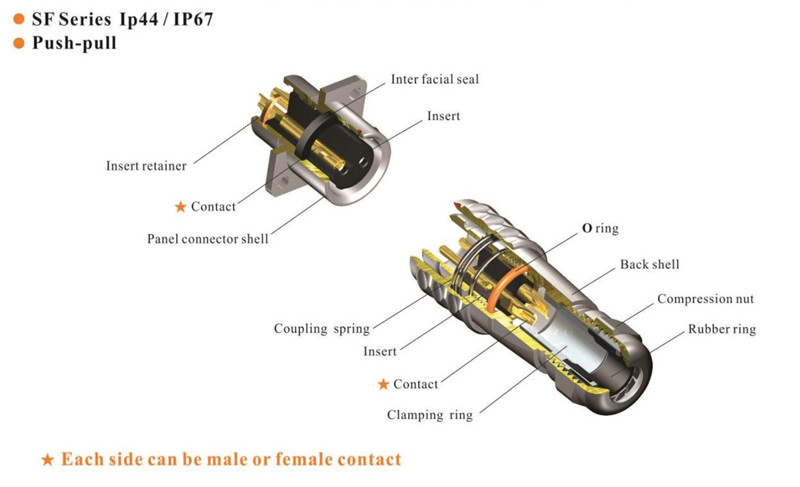

| Coupling | push and pull |
| Shell material | Brass with chrome plating |
| Contact material | Brass with gold plating |
| Insert material | PPS,max temperature 260℃ |
| Mating cycle | 500 |
| Temperature | -40℃~+85℃ |
| IP rating | IP67 |
| OEM | Yes,we accept |
| Delivery time | 3-45 days depends on buying stockage or OEM order |
Diffferent cores have different price,pls feel free to consult me for any questions!!
