Product Features
1) High Waterproof Performance
Adopting IP68 protection standard, it can withstand harsh environments such as salt spray and ensure stable operation in humid or corrosive scenes.
2) Diverse Core Number Selection
Provide 25 core number specifications from 2P to 26P to meet different cable connection requirements and suitable for a wide range of application scenarios.
3) Convenient Installation Design
Adopt push-pull self-locking structure, flexible operation and easy installation, improving convenience of use.
4) High-quality Materials and Appearance
The shell is made of zinc alloy plated pearl or aluminum shell oxidized red, which is environmentally friendly, durable and rust-proof; copper gold-plated contacts ensure conductive performance.
5) Multiple Fixing Methods

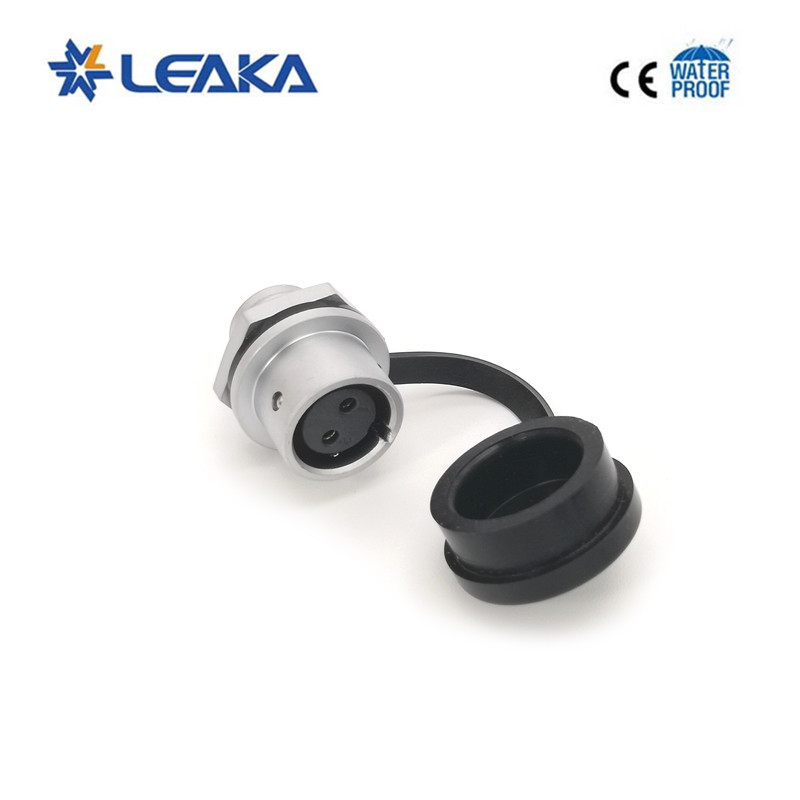

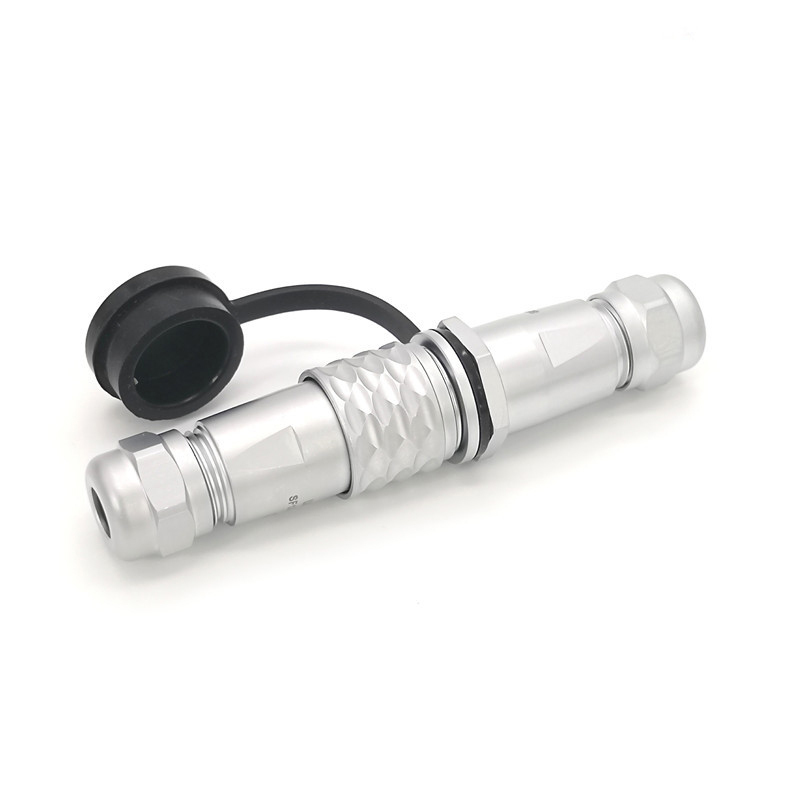

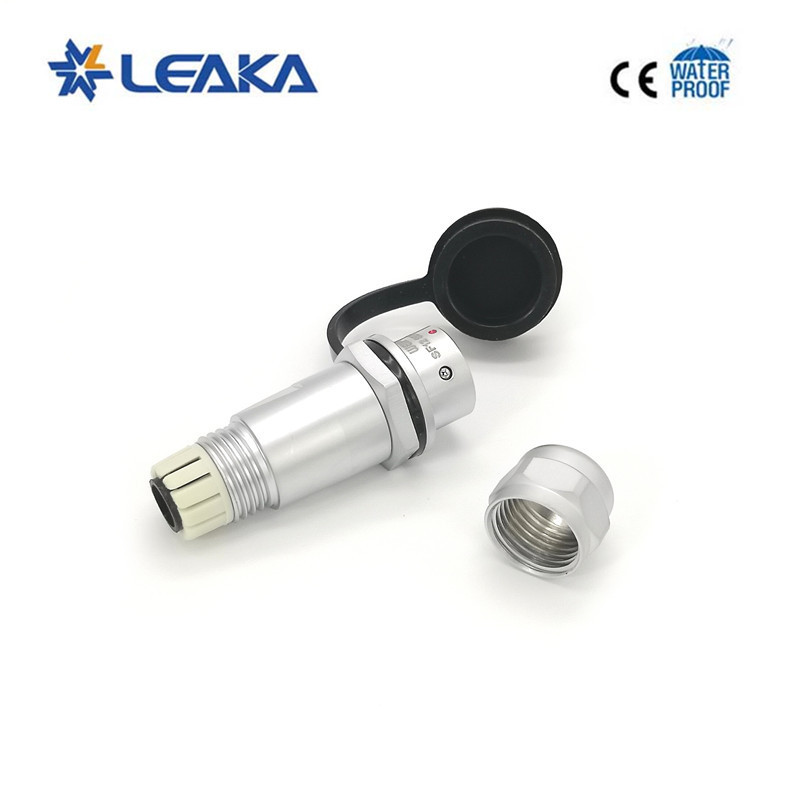

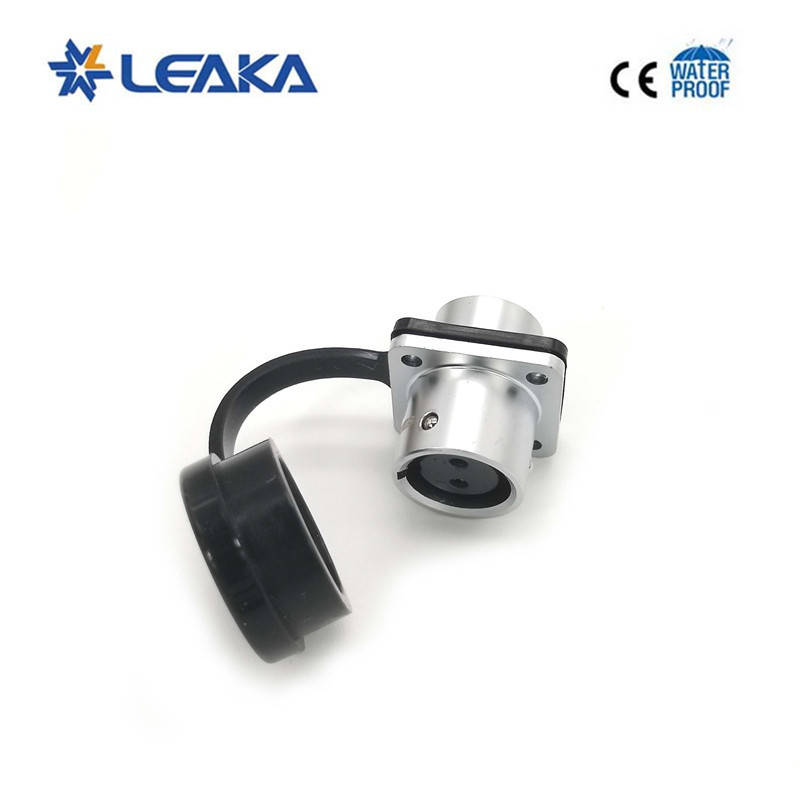

Support hexagonal fixing, square plate fixing and docking cable installation to adapt to different installation scenarios.

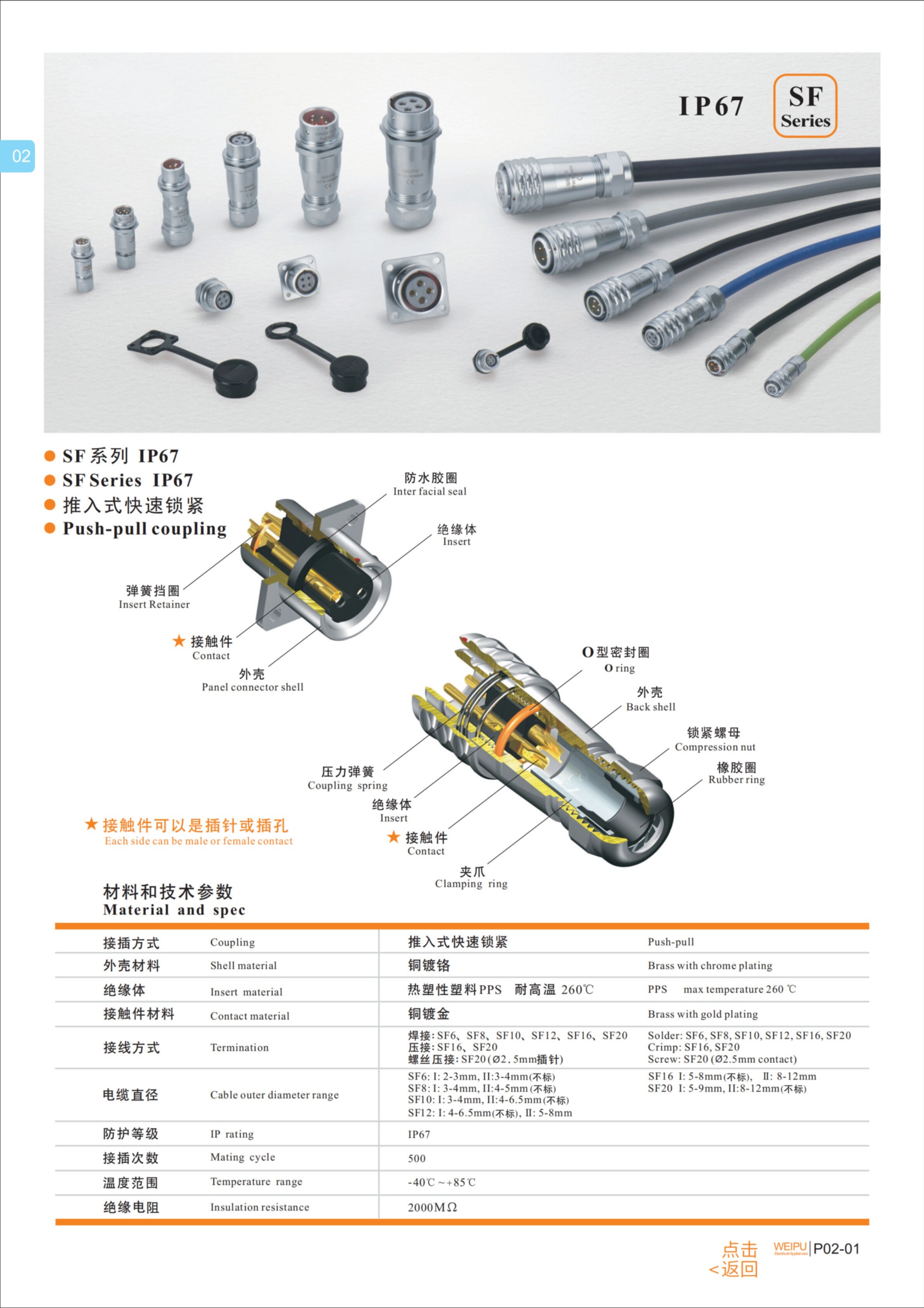

| Coupling |
Push-pull |
| Termination |
Solder/Crimp/Screw |
| Shell material |
Brass with chrome plating |
| Insert material |
PPS, max temperature 260 ℃ |
| Contact material |
Brass with gold plating |
| Mating cyele |
500 |
| Temperature range |
-40℃~+85℃ |
| Insulation resistance |
2000mΩ |
| Rated Current |
2/3/4/6Pin: 25A
5/7/8Pin: 10A
9/12/15Pin: 5A |
| Rated voltage |
2/3/4/5/6/7/8Pin: 500V
9/12/15Pin: 400V |
| Test voltage |
2/3/4/5/6/7/8Pin: 1500V
9/12/15Pin: 1200V |
1) High-speed Rail and Subway Systems
As a key component of rail transit equipment, it is used to ensure the stability and safety of power transmission and meet the reliability requirements in high-speed operation environments.
2) Aerospace Machinery and Equipment
Applicable to the aviation field, ensuring the connection requirements of complex electrical systems inside aircraft, and meeting the aviation industry's strict standards for waterproofing and anti-interference.
3) Industrial Equipment
Including mechanical equipment, automated production lines and other scenarios, providing efficient and reliable power connection solutions, suitable for male and female connector designs.
