Product Features

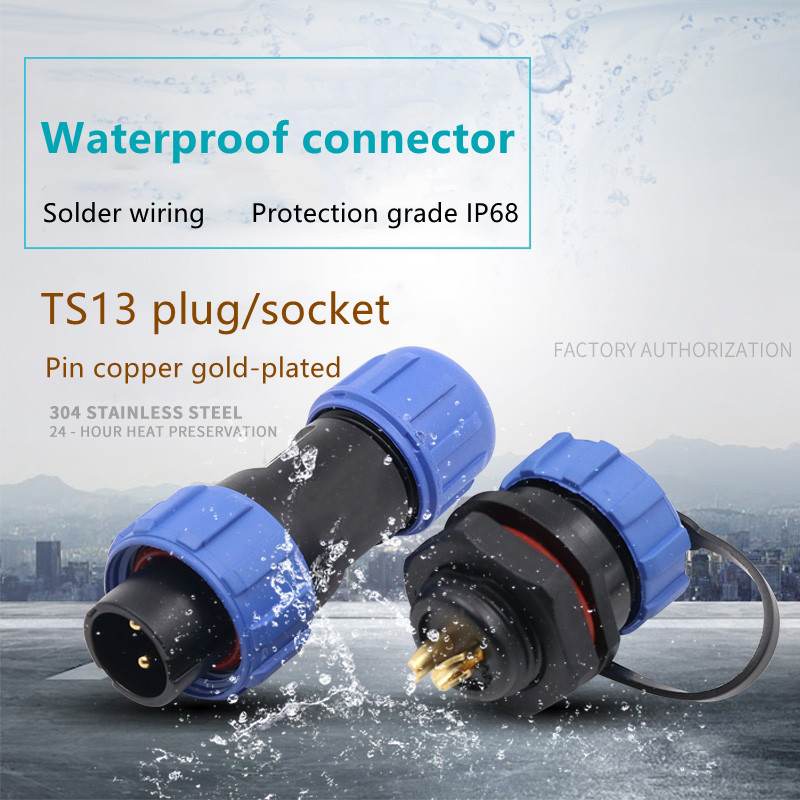

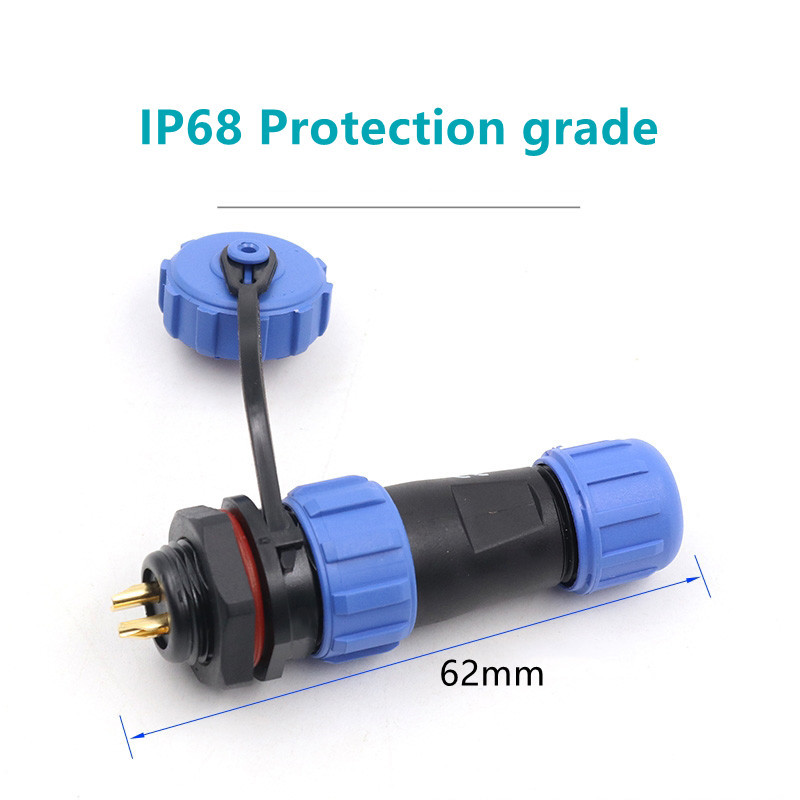

Weipu SP13 IP68 waterproof connector has high waterproofness, high strength, fast plug-in and multi-scenario applicability as its core advantages, while taking into account safety and reliability, it is an ideal choice for industrial and outdoor fields.

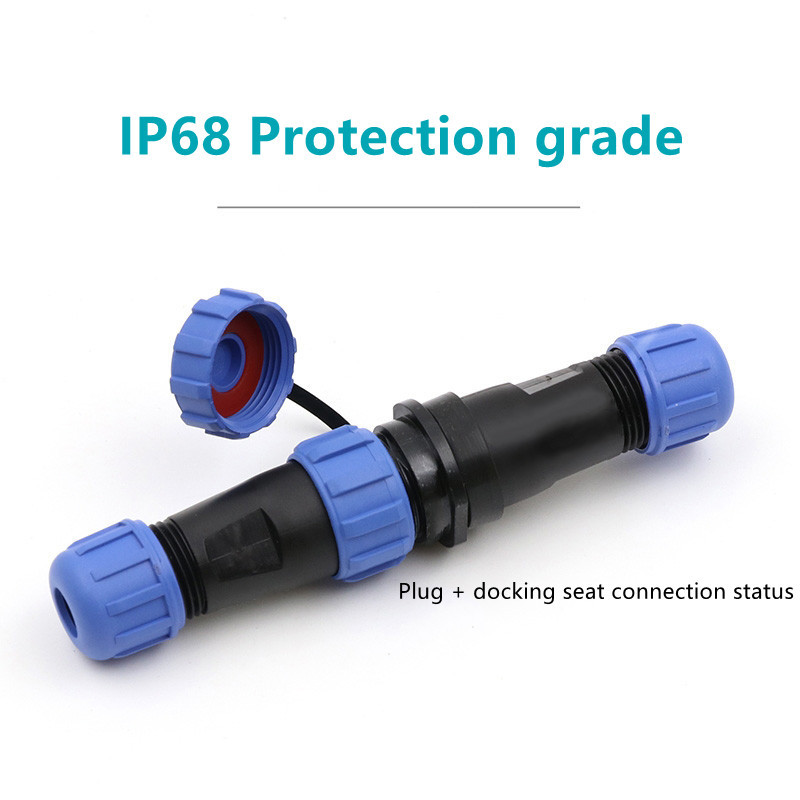

1) Excellent Waterproof Performance
2) High Strength and Durability
3) Fast Plug-in and Reliability
The pin design is optimized, the plug-in life is long, and it supports frequent operations.
The plug-in connection method is adopted, the contact is stable, and looseness or poor contact is avoided.
4) Safety Protection and Certification

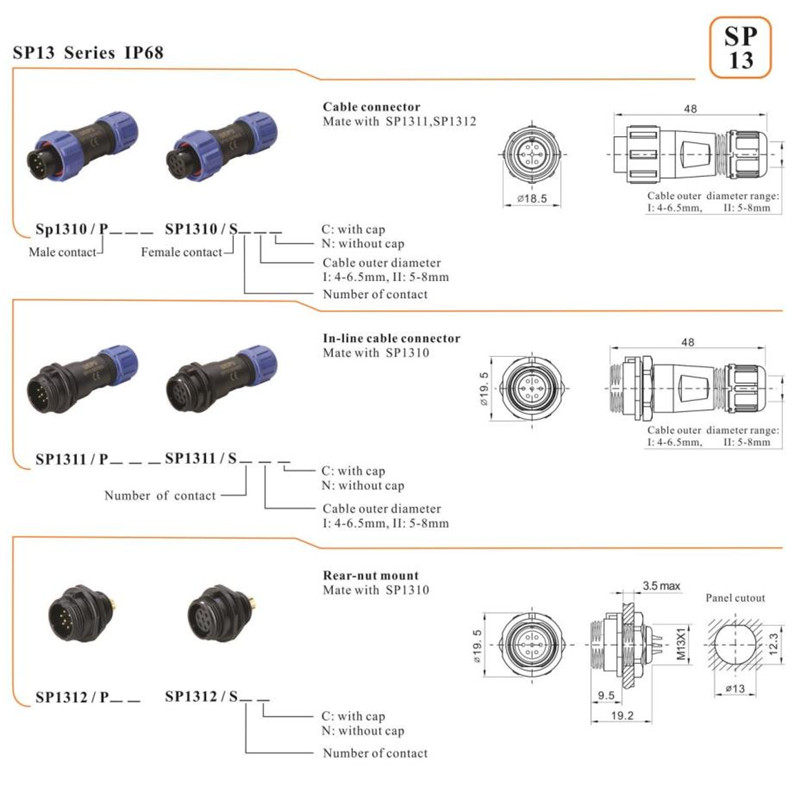

Product Datasheet

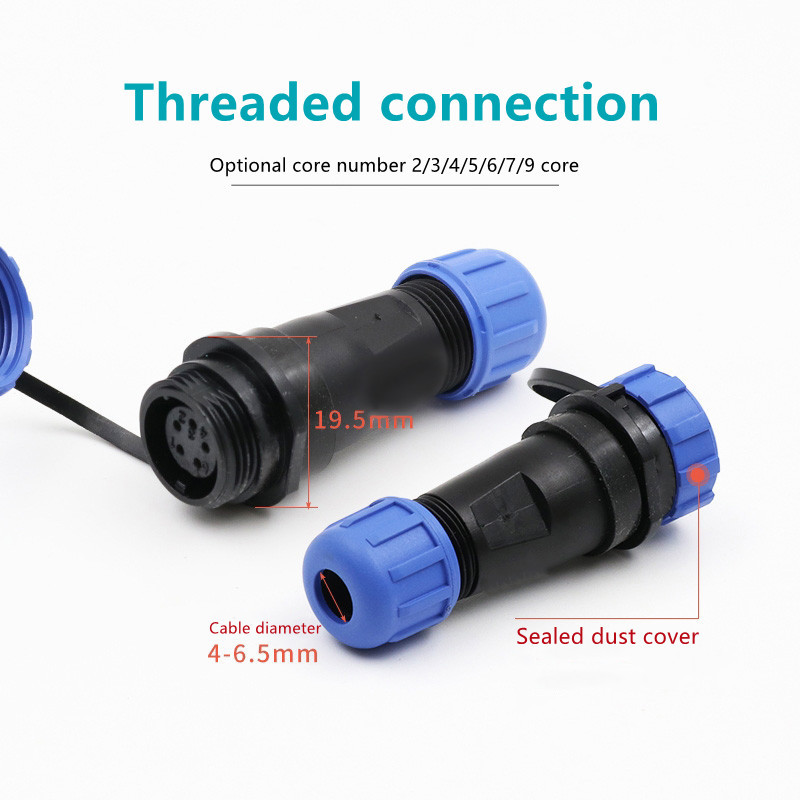

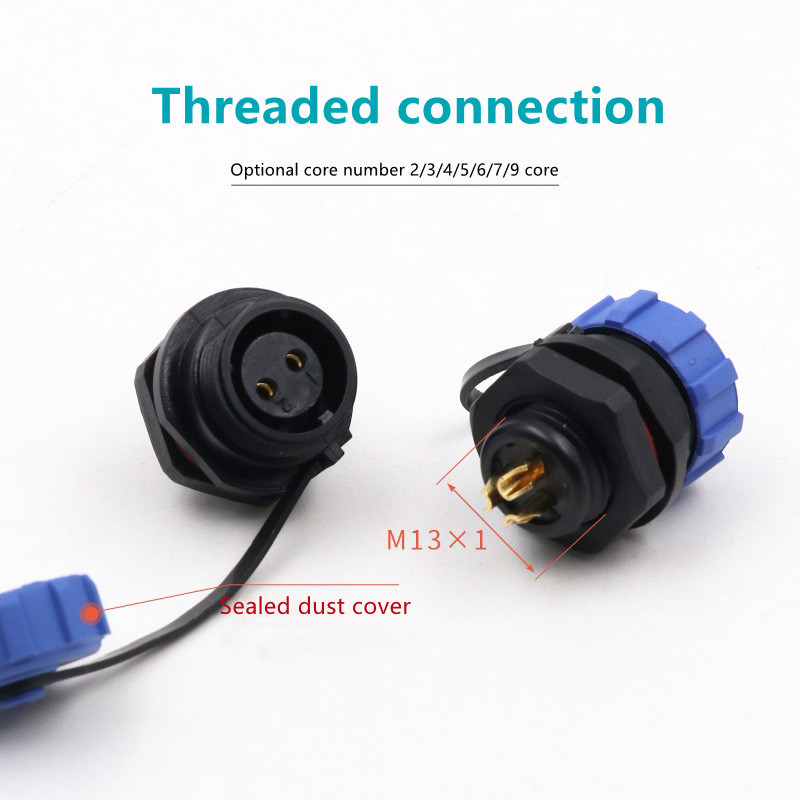

| Coupling |
Threaded |
| Termination |
Solder |

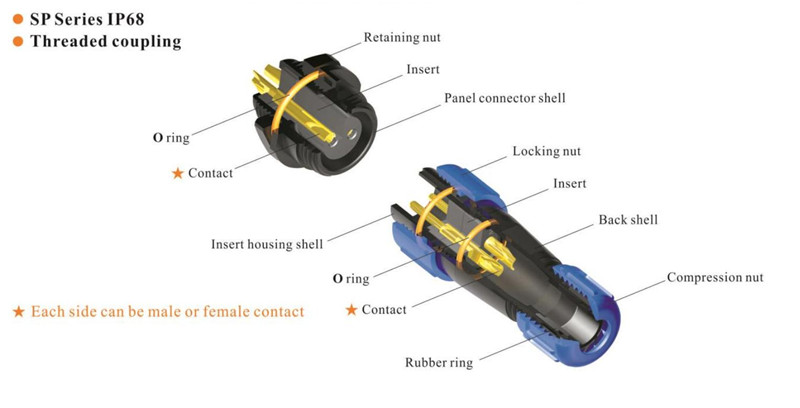

| Shell material |
PC: Panel connector shell/Insert housing shell
Nylon66: Locking nut/Back shell/Compressing nut/Retaining nut |
| Insert material |
PPS, max temperature 260 ℃ |

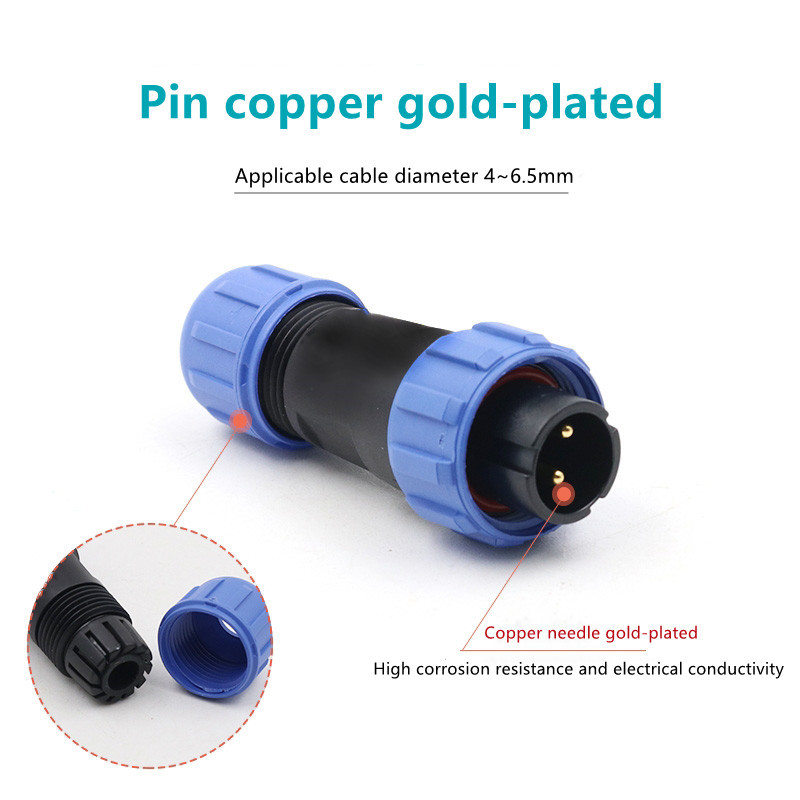

| Contact material |
Brass with gold plating |
| Mating cyele |
500 |
| Temperature range |
-40℃~+85℃ |
| Contact resistance |
2/3Pin: 2.5mΩ
4/5/6/7Pin: 5mΩ
9Pin: 10mΩ |
| Insulation resistance |
2000mΩ |
| Rated Current |
2/3Pin: 13A
4/5/6/7Pin: 5A
9Pin: 3A |
| Rated voltage |
2/3Pin: 250V
4Pin: 200V
5Pin: 180V
6/7/9Pin: 125V |
| Test voltage |
2/3/4Pin: 1500V
5/6/7/9Pin:1000V |
1) Industrial Automation and Intelligent Manufacturing
It is used in machine tool equipment, industrial control systems, robots and other scenarios to provide reliable electrical connections and protection to ensure stability in complex industrial environments.
2) Power and Energy Fields
3) Communication and Security Systems
It is suitable for underwater cameras, underwater monitoring systems, ship communication equipment, etc. It has IP68 waterproof performance and can work for a long time in high-pressure water flow or salt spray environments.
4) Aerospace and Military Fields
Used for signal transmission and power connection of avionics equipment and military equipment, which must withstand extreme temperatures, vibrations and shocks.
5) Rail Transit and Navigation Equipment
In scenes such as subways and ships, it ensures the stability and security of signal transmission and adapts to harsh environments such as humidity and salt spray.
