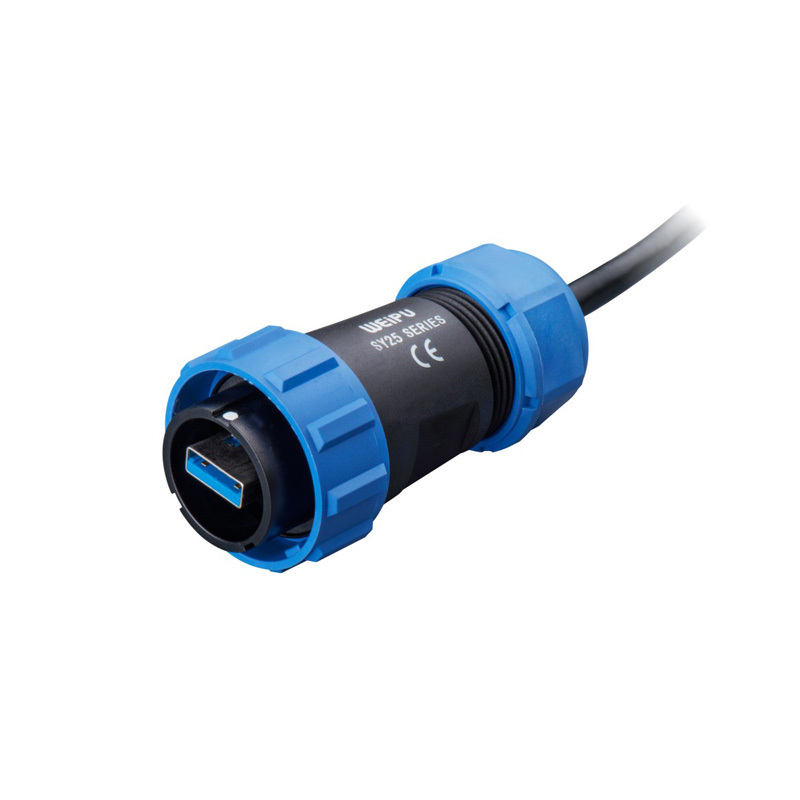

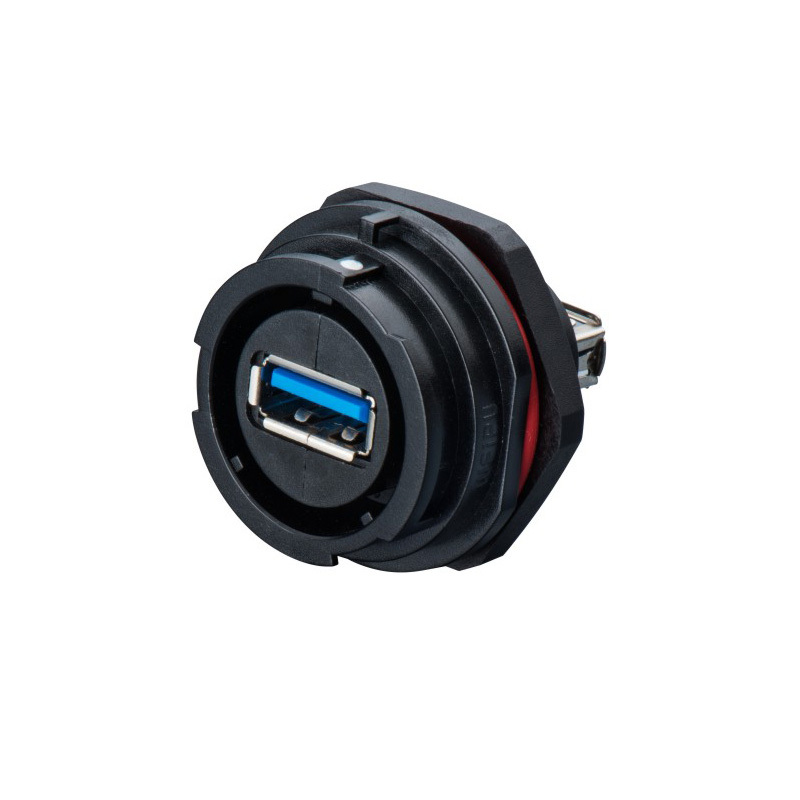

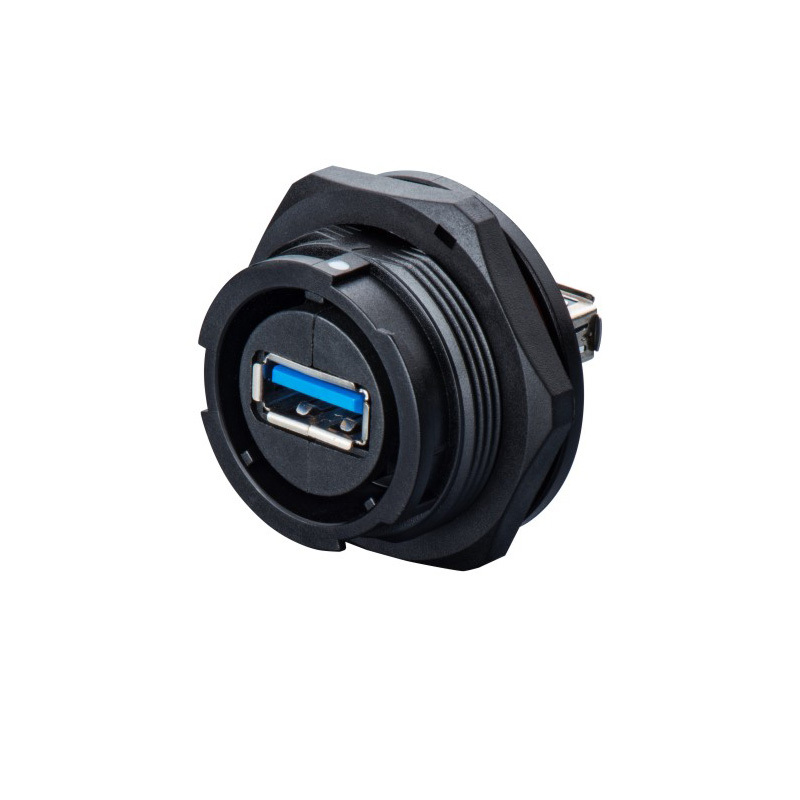

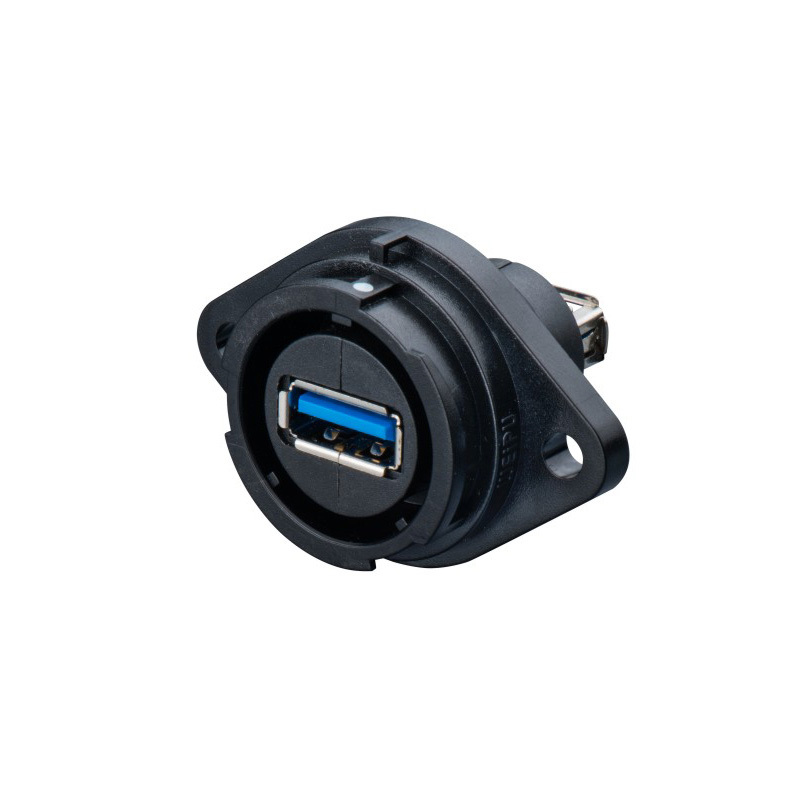

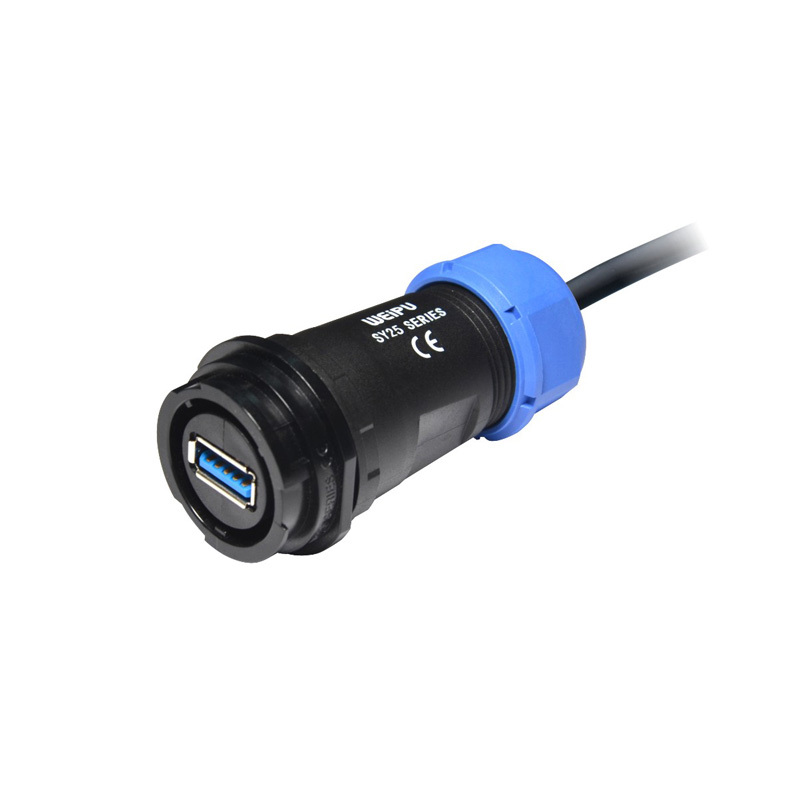

Weipu SY25 Plug Sockets Plastic USB 3.0 Cable Connector
The physical interface size of the USB3.0 connector is the same as that of the USB2.0 connector, but to improve the transmission speed, four pins are added to nine instead of the original five. This requires new hardware to support. USB3.0 and USB2.0 are compatible with each other, that is, the USB2.0 device is connected to the USB3.0 interface, or the USB3.0 interface, and can be used normally, with only the transmission speed of USB2.0.
Product Parameter
| Coupling | Bayonet |
| Shell Material | PC, Nylon PA66 |
| Insert Material | PPS, Max Temperature 260℃ |
| Termination | Screw |
| Cable Length | 0.5m/1m/1.5m/2m/3m/Customization |
|
Cable Outer Diameter |
10~14mm |
|
IP Rating |
IP67 |
| Mating Cycle | 500 |
| Temperature Range | -20℃~+70℃ |
Express & Payment
