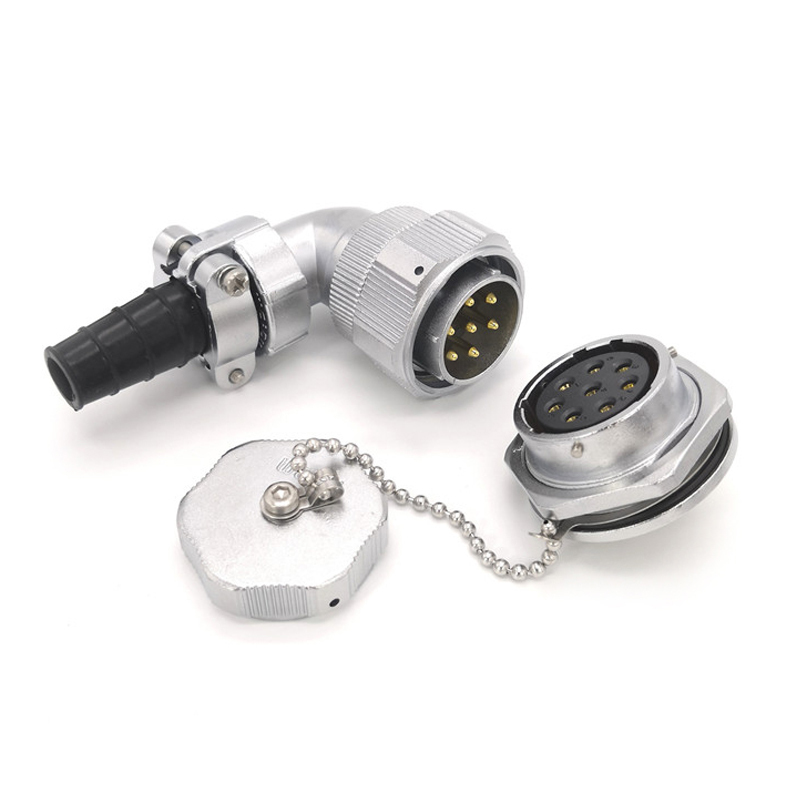

The WEIPU TV+ ZMQ waterproof connector is a high-performance quick-connect wire connector engineered for industrial and outdoor applications requiring reliable power and signal transmission in demanding conditions. Designed and manufactured by WEIPU Connector — a leading industrial connector manufacturer founded in 1996 with ISO 9001:2015, IRIS, CE, RoHS, UL and CSA certifications — this series combines robust zinc alloy construction, gold-plated contacts, and versatile termination options to deliver exceptional durability and performance across a wide range of industries.
| Product name | Weipu TV+ZMQ waterproof connector quick connect wire connector |
| Coupling | Bayonet |
| Shell material | Zinc alloy with chrome plating |
| Contact material | Brass with gold plating |
| Insert material | PPS, max temperature 260℃ |
| Mating cycle | 500 |
| Temperature | -40℃~+85℃ |
| IP rating | IP67 |
| OEM | Yes, we accept |
| Delivery time | 3-45 days depends on buying stockage or OEM order |
IP Rating: IP67 (IP68 for select variants) — fully sealed against water and dust ingress
Operating Temperature: -40°C to +85°C, suitable for extreme environments
Shell Material: Zinc alloy with chrome plating for corrosion resistance and mechanical strength
Contact Material: Copper with gold plating for low contact resistance and superior signal integrity
Insulator: Thermoplastic PPS with high-temperature tolerance up to 260°C
Mating Cycles: 500 insertions for long-term reliability and reduced maintenance
Coupling Method: Threaded connection for secure, vibration-resistant mating
Termination Options: Soldering (Φ1, Φ1.5, Φ2.5, Φ3.5, Φ5.5mm), screw clamping (Φ2.5, Φ3, Φ3.5mm), or crimping (Φ1, Φ1.5, Φ2.5, Φ3.5, Φ5.5, Φ10mm)
Pin Configurations: Available in multiple pin counts from 2 to 35, accommodating diverse power and signal requirements
The WEIPU ZMQ connector family features premium-grade zinc alloy shells with chrome plating, providing excellent resistance to corrosion, UV radiation, and mechanical impact. The gold-plated copper contacts minimize contact resistance while maximizing transmission efficiency, ensuring stable performance even after hundreds of mating cycles. The PPS insulator offers exceptional dielectric strength and thermal stability, maintaining integrity at temperatures up to 260°C — critical for soldering operations and high-heat applications.
The WEIPU TV+ ZMQ waterproof quick-connect wire connector is widely used in:
Industrial Automation: Robotic systems, CNC machinery, PLC control networks
Renewable Energy: Solar panel arrays, wind power systems, battery energy storage
Outdoor Lighting: LED streetlights, landscape lighting, marine and aquatic illumination
Rail Transportation: Train control systems, onboard electronics, station infrastructure
Medical Equipment: Patient monitoring devices, diagnostic imaging systems
Telecommunications: Base stations, data transmission equipment
Aerospace & Defense: Mission-critical systems requiring rugged, sealed connections
The ZMQ series achieves IP67 waterproof protection when mated, ensuring complete resistance to temporary immersion (up to 1 meter for 30 minutes). Select variants offer IP68 ratings for continuous submersion applications. The robust threaded coupling system provides secure mating even under vibration, while gold-plated contacts maintain signal integrity over the full -40°C to +85°C operational range. With 500 mating cycles and multiple termination options, these connectors deliver long service life with minimal maintenance.
Field-Proven Reliability: Over two decades of engineering excellence serving 80+ countries worldwide
Comprehensive Certifications: ISO 9001, IRIS, CE, RoHS, UL, CSA — ensuring global compliance

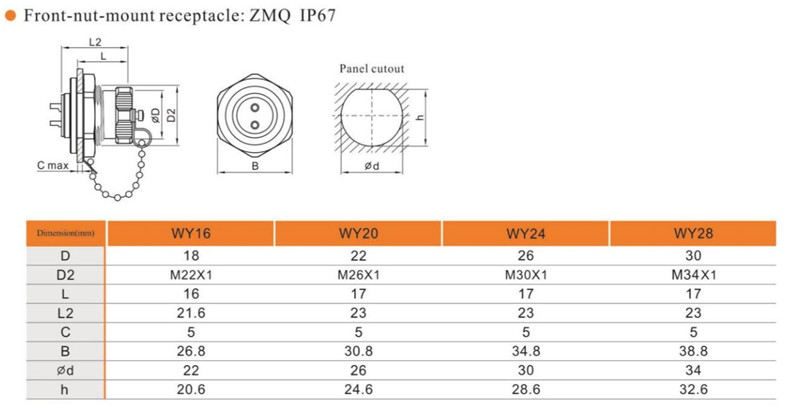

Versatile Configuration Options: Multiple shell sizes (16, 20, 24, 28), pin counts, and termination methods
Tool-Free Installation: Threaded coupling requires no specialized tools for secure mating
Long Lifespan: 500 mating cycles reduce total cost of ownership
