Technical SpecificationsIP44 IP67 Waterproof WEIPU IEC60309 CEE TYE 3Pin 4Pin 5Pin Industrial Plug High Current Connector
| Coupling |
Bayonet |
| Protection level |
IP44/ IP67 |
| Shell material |
Nylon66 |
| Contact material |
Brass with nickel plating |
| Temperature range |
-25℃~ +85℃ |
| Rated Current |
16A/32A/63A/125A |
| Rated voltage |
220V/380V |
| Test voltage |
2500V |
1. Compliant with the Globally Authoritative Standard (IEC 60309)

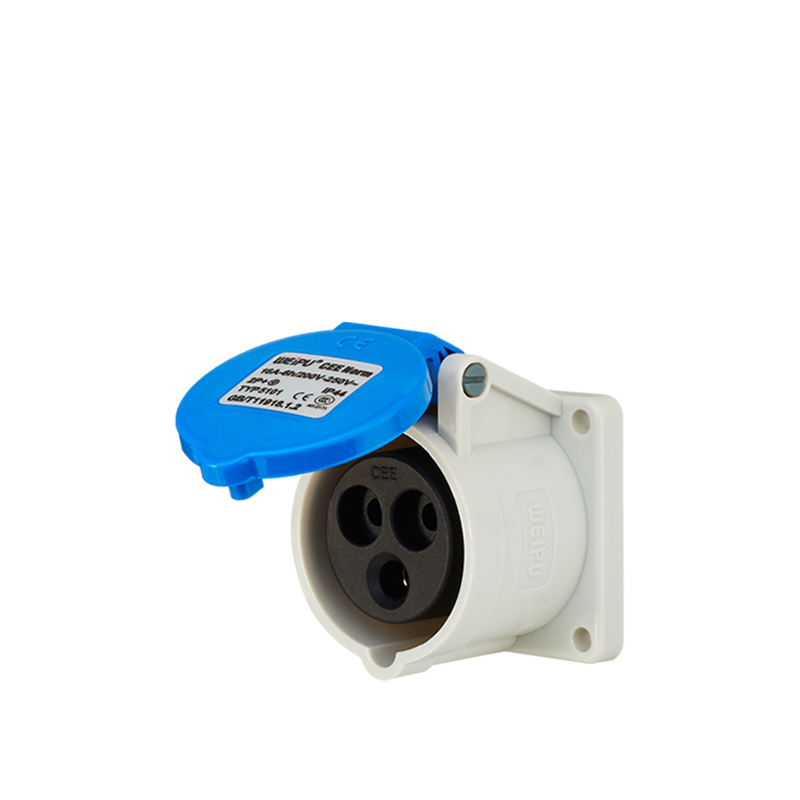

Weipu's TYE series connectors are industrial plugs and sockets that comply with the IEC 60309 standard. IEC 60309 is a globally recognized industrial connector standard, which means:
1) Global compatibility: As long as they comply with this standard, products of the same specifications from different brands (such as Weipu, Mennekes, and Legrand) are mechanically and electrically interoperable. This solves the interoperability and compatibility issues associated with global equipment procurement and use.
2) Clear electrical parameter identification: Product color and pin count allow for quick identification of voltage and frequency, preventing incorrect insertion.
Yellow: 100V-130V.
Blue: 200V-250V (most common).
Red: 380V-480V.
3) Pin count: 2P+E (3 pins) for single-phase, 3P+E (4 pins) for three-phase, and 3P+N+E (5 pins) for three-phase, four-wire.
2. Highest Protection Ratings (IP44 / IP67)
1) IP44 (Normal Protection): When mated, the plug and socket provide full protection against splashing water and solid foreign objects larger than 1mm in diameter. This means they are absolutely safe for use in environments subject to splashing water and mist, such as factories and workshops.
2) IP67 (Enhanced Protection): Some models (such as couplers with rubber boots) achieve an IP67 rating when fully mated, meaning they are protected against short-term immersion and complete dustproofing. TYE series industrial connectors can be used in harsher environments, such as washdowns and outdoor use in rainy and snowy conditions, providing exceptional protection against electric shock, dust, and water.
3. Robust Mechanical Structure and Durability
1) Housing Material: Made of high-strength engineering plastic (such as polyamide PA), these connectors offer exceptional resistance to impact, pressure, drop, and twisting, far exceeding the performance of household plastic sockets. They are also flame-retardant, significantly enhancing safety.
2) Internal Terminals: The metal sleeves/pins are made of high-quality phosphor bronze, offering excellent elasticity, strong conductivity, and corrosion resistance. They are typically nickel- or silver-plated, ensuring low resistance, low heat generation, and long-lasting plug-in and unplug performance.

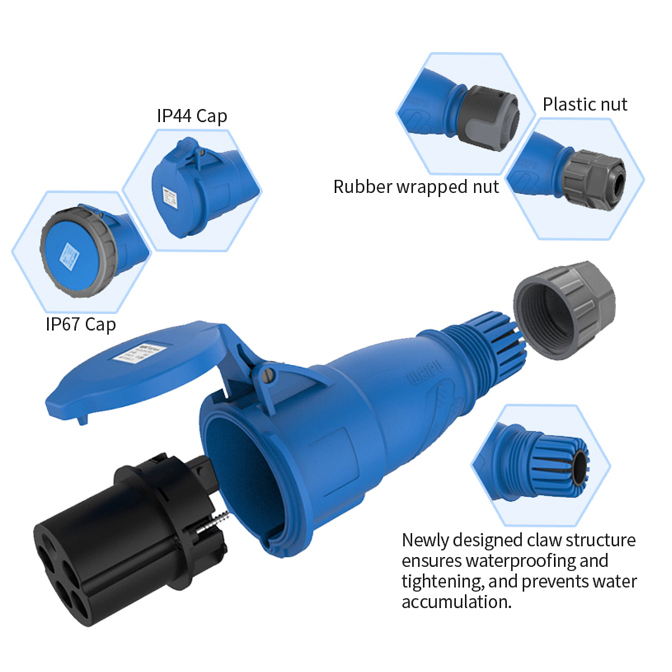

3) Rubber Sheath: Many TYE plugs and sockets feature a heavy-duty rubber sheath to protect the connection from excessive bending, extend cable life, and further enhance impact resistance and protection.
4. User-Friendly and Convenient Design

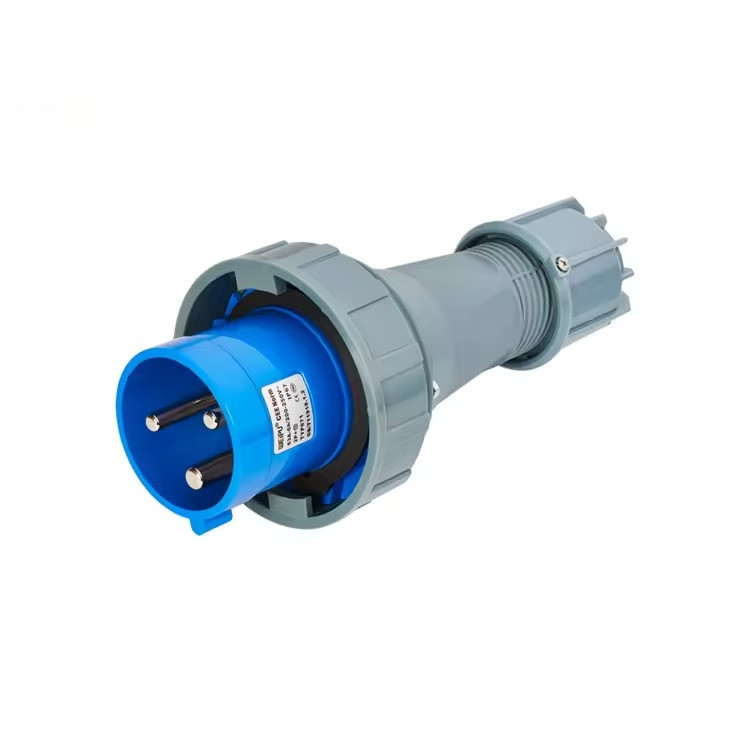

1) Cable Clamp: The plug features a robust cable clamp (typically made of metal or high-strength plastic) secured with a screw, effectively resisting cable tension and torsion, preventing internal wiring from being pulled apart. This is a critical safety feature in industrial applications.
2) Easy to Grip: The housing features grooves for easy grip and plug-in/unplugging, even for gloved operators.
3) Clear Labeling: Information such as voltage, current, IP rating, and grounding markings are clearly engraved on the product for easy identification.
5. High Current Carrying Capacity
Weipu's TYE series industrial connectors offer a variety of current ratings, ranging from 16A to 125A. These connectors can meet the power needs of everything from small handheld tools to large industrial equipment. This is unmatched by standard household outlets (typically 10A/16A).
