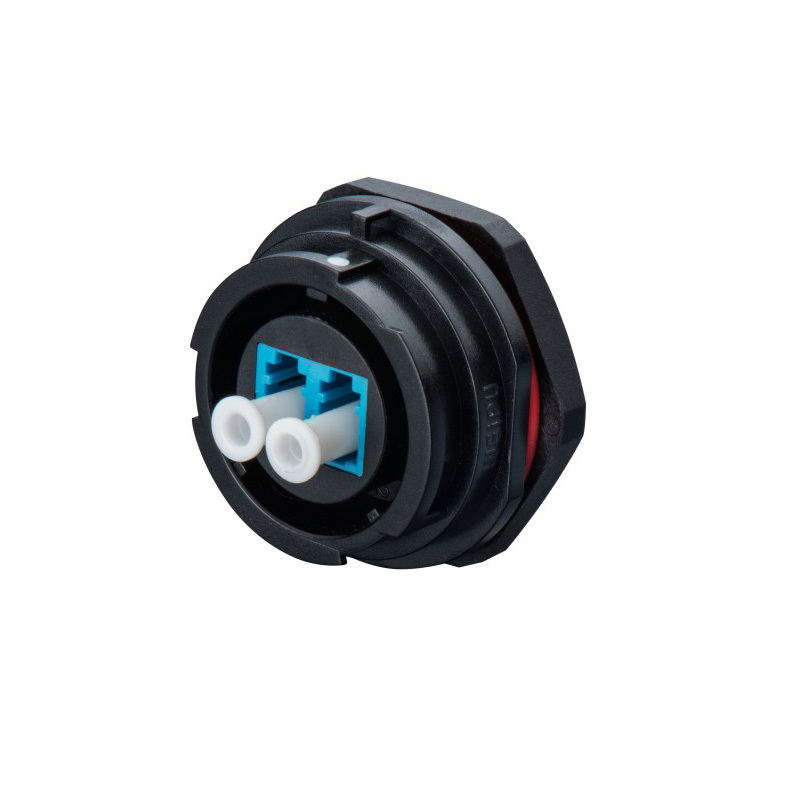

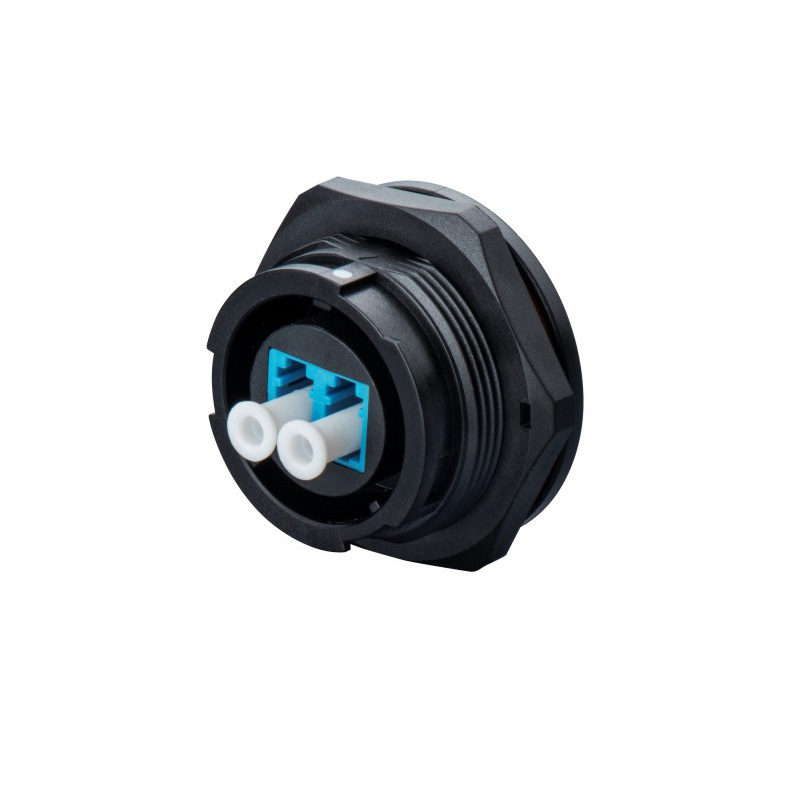

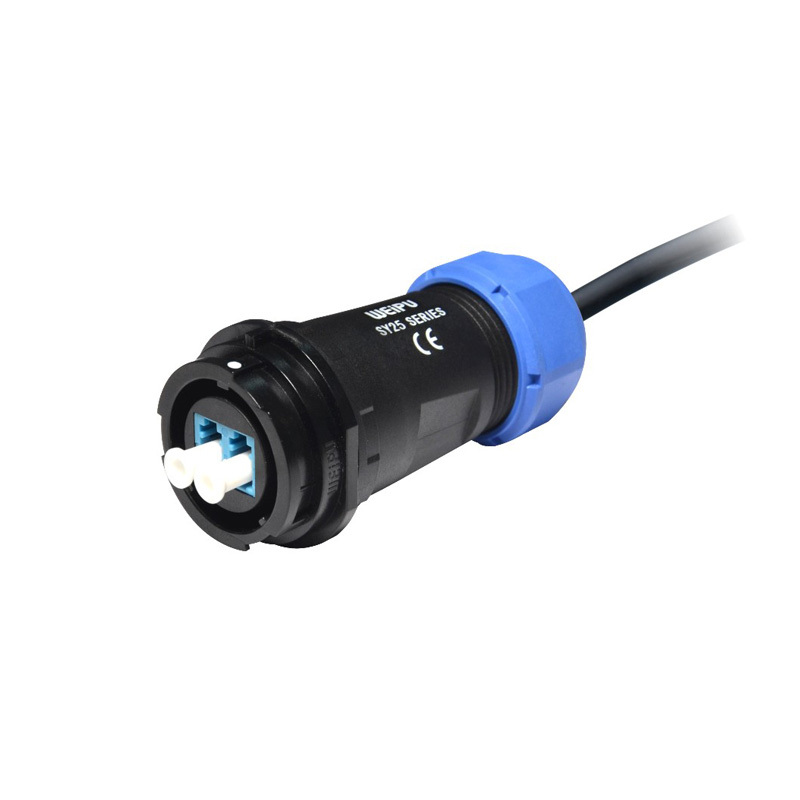

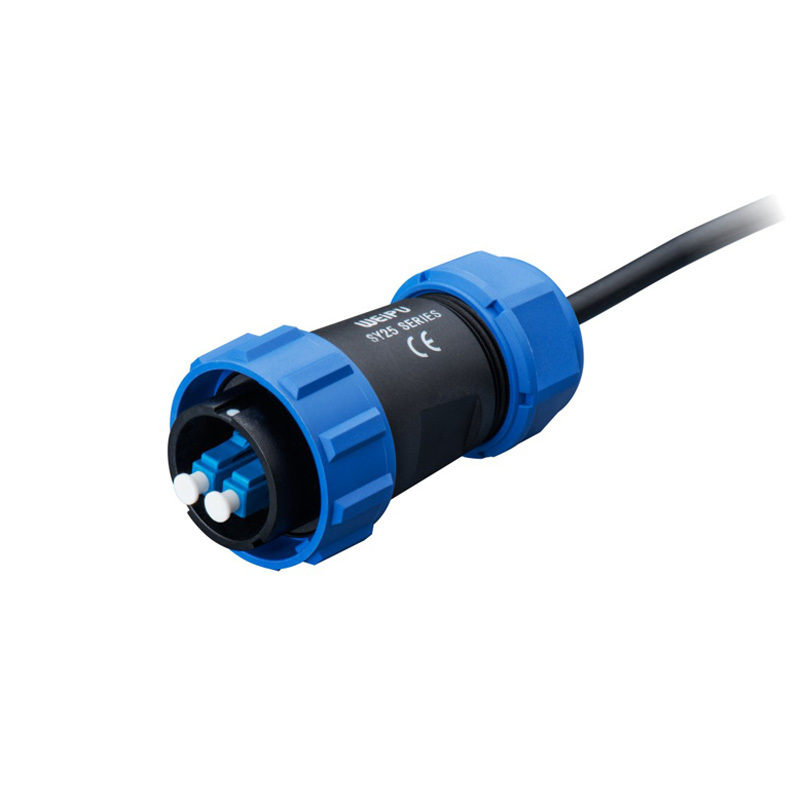

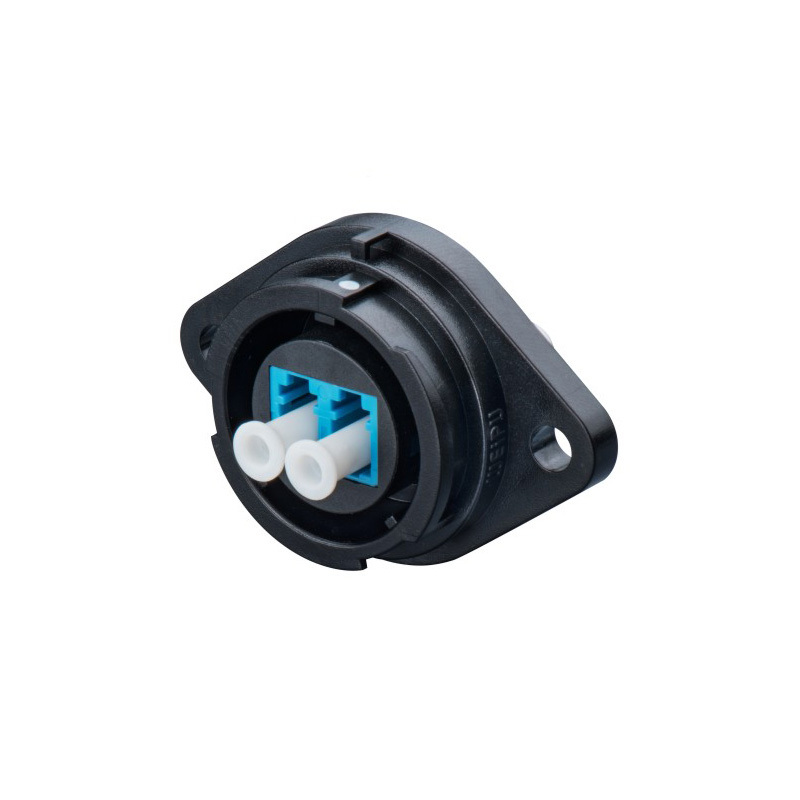

Manufacturers weipu Bayonet Type Fiber Optic cable Connector
The main purpose of optical fiber connector is to realize optical fiber connection. Optical fiber connectors, which have been widely used in optical fiber communication systems, have many kinds and different structures. However, in detail, the basic structures of various types of optical fiber connectors are the same, that is, the vast majority of optical fiber connectors generally use high-precision components (consisting of two pins and a coupling tube, a total of three parts) to realize the alignment and connection of optical fibers.
This method is to thread and fix the optical fiber in the contact pin, polish the contact pin surface, and achieve alignment in the coupling tube. The external components of the contact pin are made of metal or non-metallic materials. The mating end of the pin must be ground, and the other end usually uses a bending limiting member to support the optical fiber or optical fiber flexible cable to release stress. The coupling pipe is generally made of two half synthetic and fastened cylindrical components made of ceramics, bronze and other materials, and is usually equipped with metal or plastic flange plates to facilitate the installation and fixation of connectors. In order to align the optical fiber as accurately as possible, the machining accuracy of the contact pin and coupling tube is required to be high.
| Coupling | Bayonet |
| Shell Material | PC, Nylon PA66 |
| Insert Material | PPS, Max Temperature 260℃ |
| Termination | Screw |
| Cable Length | 0.5m/1m/1.5m/2.0m/3.0m/Customization |
|
Cable Outer Diameter |
10~14mm |
|
IP Rating |
IP67 |
| Mating Cycle | 500 |
| Temperature Range | -20℃~+70℃ |
Xiamen Leaka Electrical Equipment Co., Ltd., founded in 2015, is a national high-tech enterprise integrating research, development, production, sales and service of industrial waterproof connectors. Adhering to the business philosophy of "leading technology, lean management, customer first, and win-win cooperation", the company continues to provide high-end connectivity solutions and products for global customers. And with good reputation and service, it has become the preferred partner of global engineers.
The company's main business involves various industrial connectors such as power connector, signal connector, data connector, watertight connector, energy storage connector, wiring terminal, industrial cable and customized harness products. At present, the products are widely used in LED display, security equipment, electronic equipment, automation equipment, intelligent transportation, 5G communication, aerospace, new energy, Internet of Things and many other fields.
Customized--We are the manufacturer! sample &OEM&ODM are available!
Safety--We have own test chart, all of our products have been rigorously tested in the factory.
Certification--We have CE and quality management system certification.
High Quality --Our company uses the most advanced equipment to make the best quality products.
