Product Features

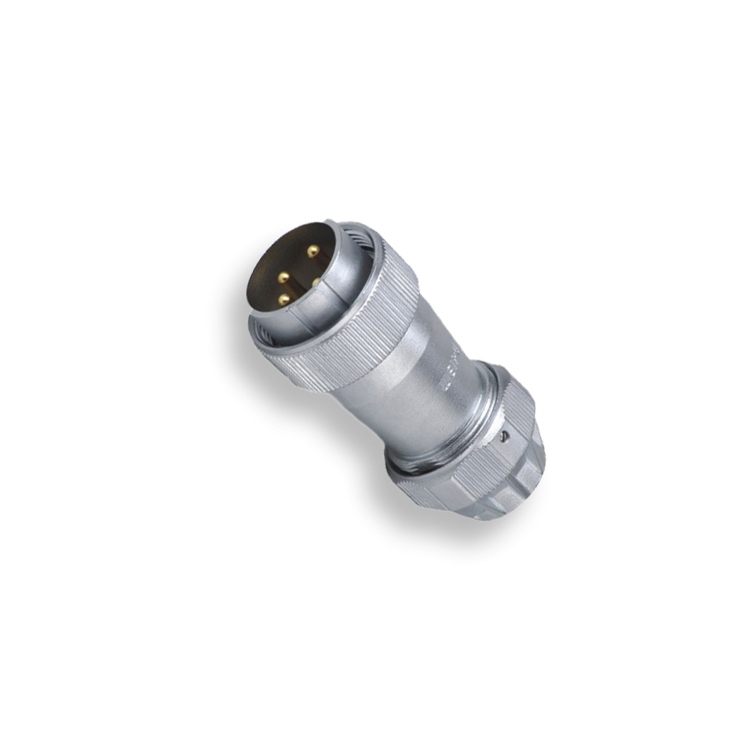

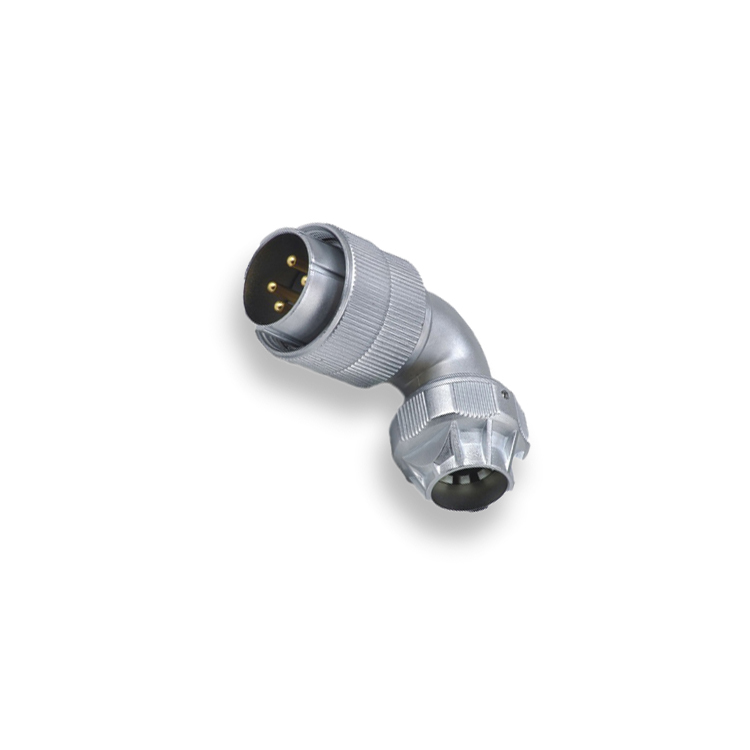

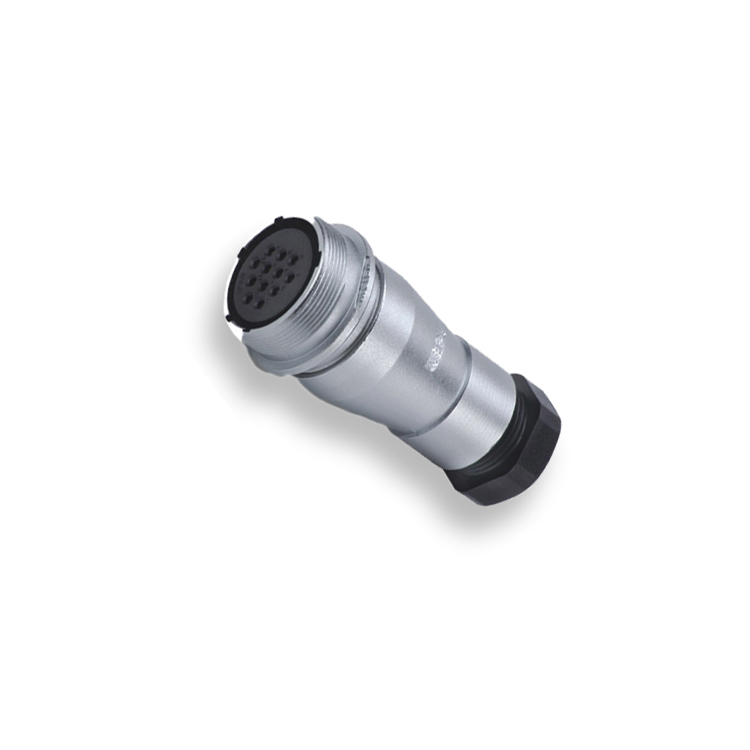

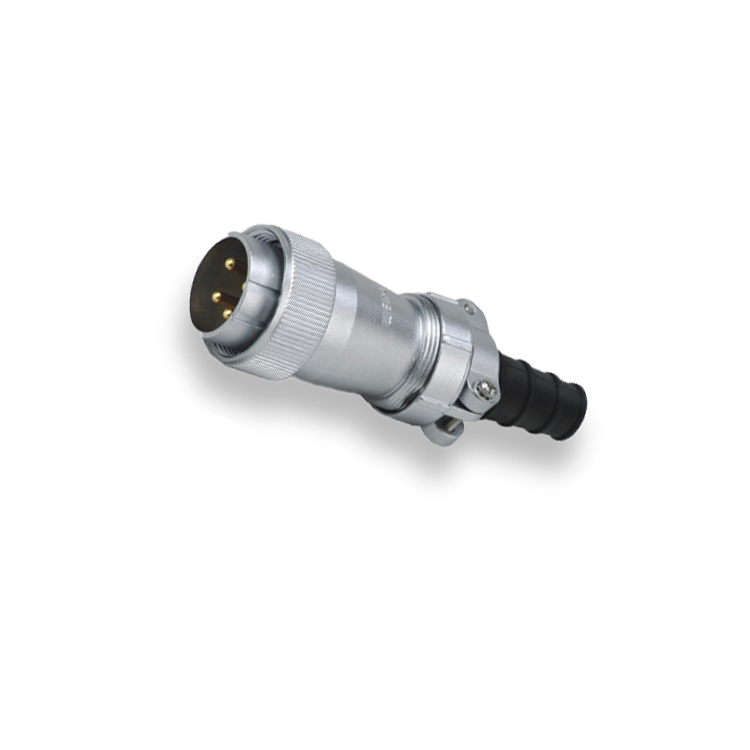

Weipu WF Series Aviation Connectors
1) High Current and High Voltage Performance
Support current range 3A-200A, voltage resistance level covers 1000V-3000V, which can meet the needs of industry and special environments.
2) Multi-pin Design
The number of pins has been expanded from 2 to 61, adapting to different wiring scenarios, such as communications, electricity, locomotives and other fields.
3) Comprehensive Protection Level
The protection level ranges from IP44 (dust and drip proof) to IP68 (dust and water spray proof), especially good at outdoor waterproof connection, ensuring reliability in harsh environments.
4) Wide Range of Application Fields
The products cover multiple industries such as machine tools, electricity, lighting, chemicals, ports, new energy vehicles, etc., to meet diversified engineering needs.

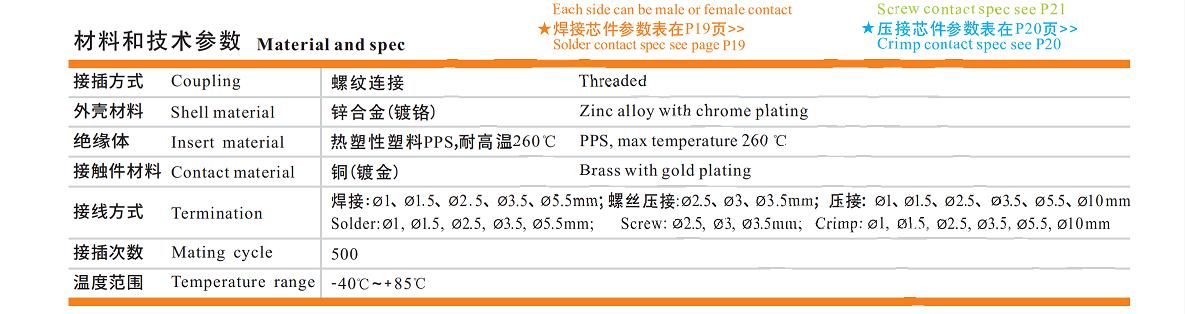

| Coupling |
Threaded |
| Termination |
Solder/Crimp/Screw |
| Shell material |
Zinc alloy with chrome plating |
| Insert material |
PPS, max temperature 260 ℃ |
| Contact material |
Brass with gold plating |
| Mating cyele |
500 |
| Temperature range |
-40℃~+85℃ |

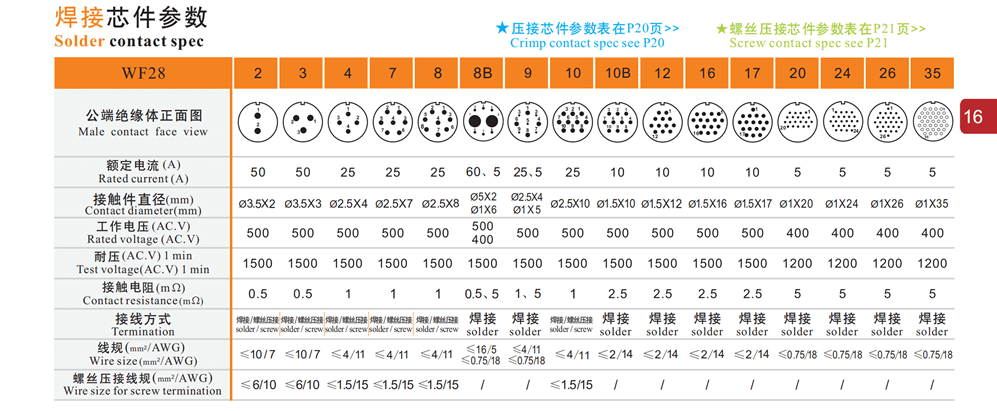

| Rated Current |
2/3Pin: 50A
4/5/7/8/9/10Pin: 25A
12/16/17Pin: 10A
20/24/26/35Pin: 5A |
| Rated voltage |
2/3/4/7/8/9/10/12/16/17Pin: 500V
20/24/26/35Pin: 400V |
| Test voltage |
2/3/4/7/8/9/10/12/16/17Pin: 1500V
20/24/26/35Pin: 1200V |
With its high current/voltage adaptability, protection level and diversified pole number design, Weipu WF connector has become the core connection solution in the fields of industrial automation, new energy, intelligent transportation, etc.
1) Industrial Equipment Field
Widely used in machine tool equipment, automated production lines, and intelligent manufacturing systems, it meets the needs of high current (3A-200A) and high voltage (1000V-3000V), and is suitable for heavy industrial scenes such as chemical industry, ports, and airports.
2) Power and Energy Field
As a core connection component in power transmission, lighting systems, and new energy vehicles (including battery pack connection, motor drive, etc.), it ensures stable power supply.
3) Communication and Rail Transit
Applicable to communication equipment and rail transit signal systems, meeting high reliability requirements and ensuring the stability of data transmission and equipment operation.
4) Navigation and Outdoor Environment
Designed for outdoor waterproofing, the protection level covers IP44 to IP68, and is suitable for high humidity and high salt spray environments such as ships and ship equipment.
5) Smart Manufacturing and Internet of Things
