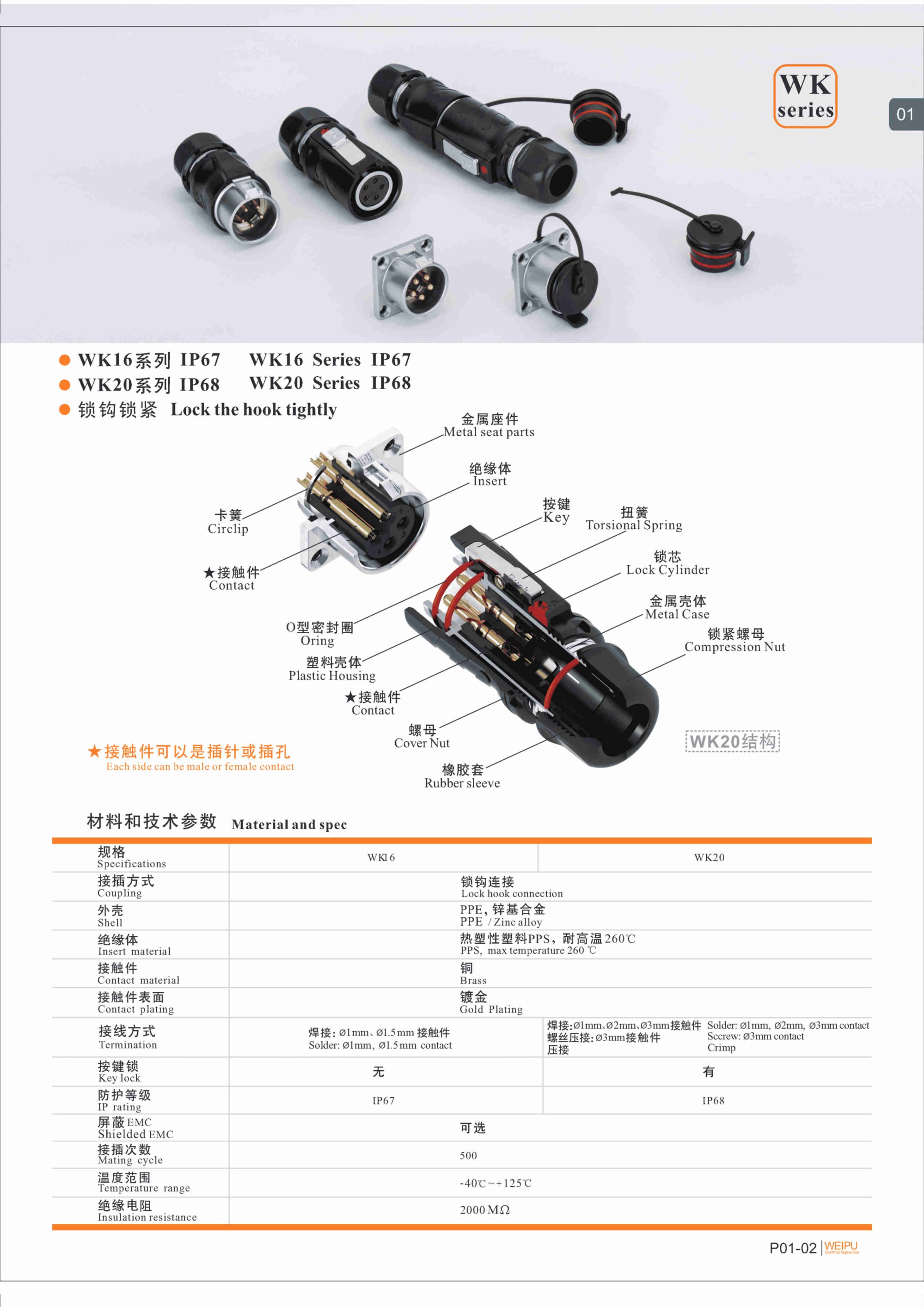

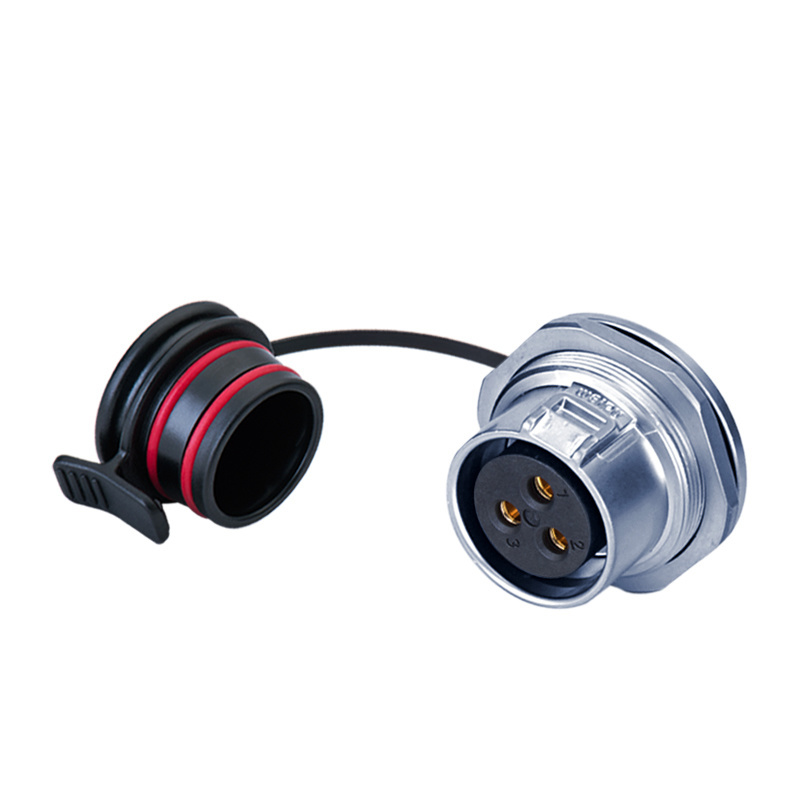

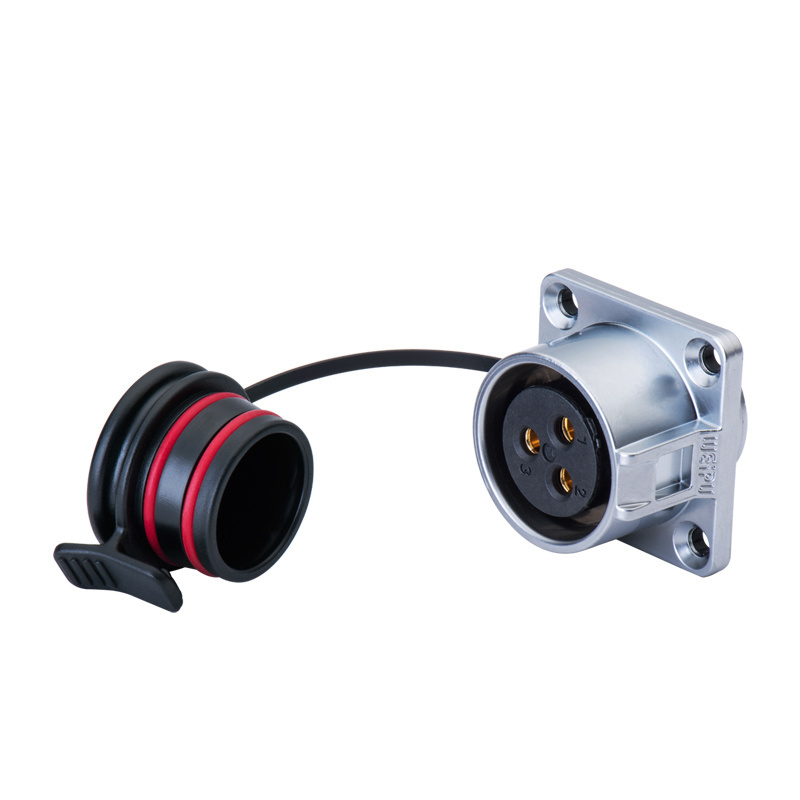

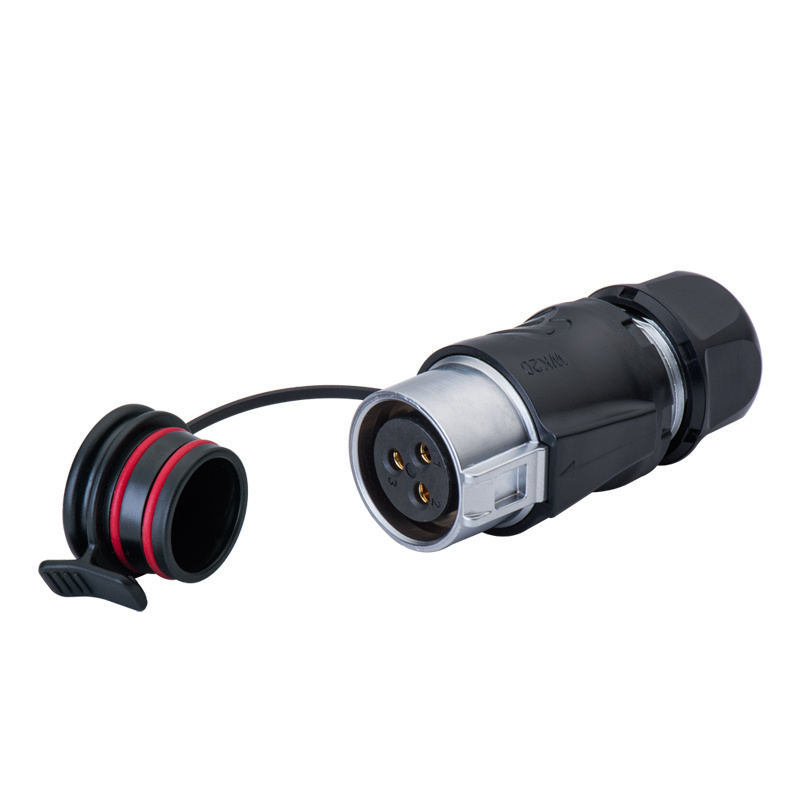

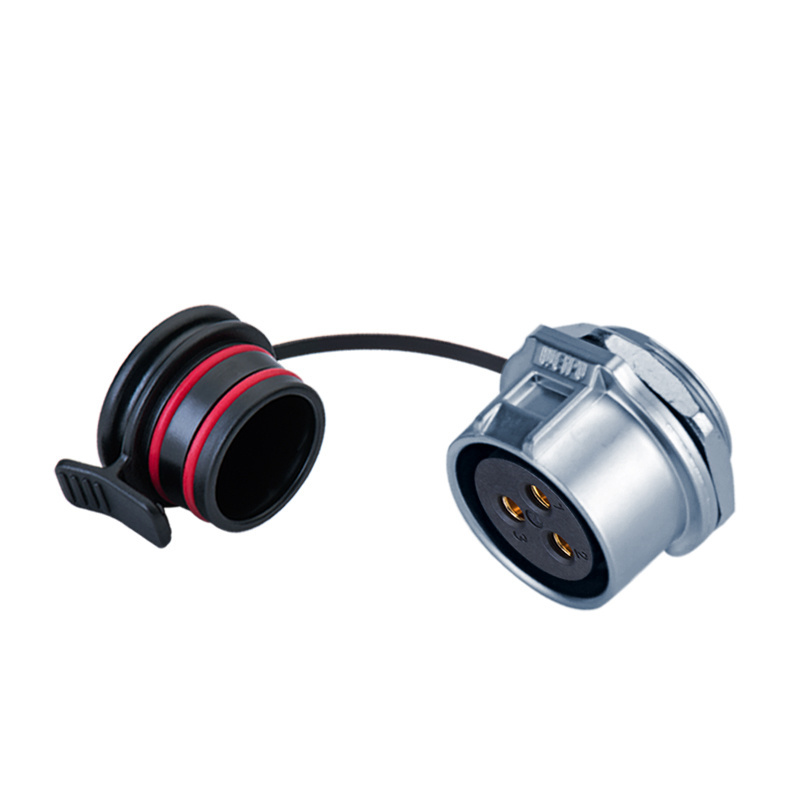

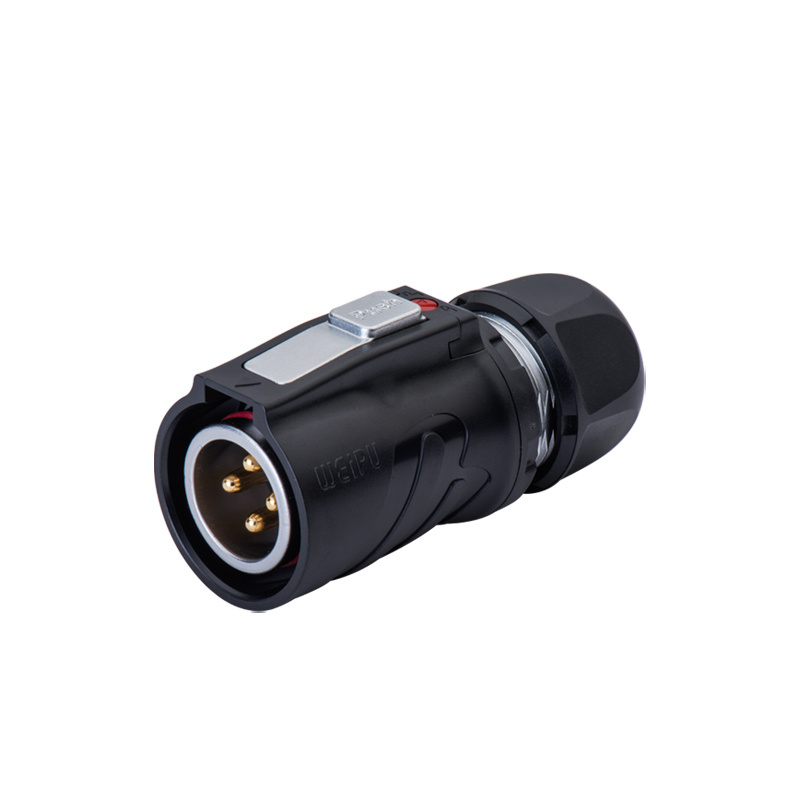

Technical SpecificationsIP68 Waterproof M20 WEIPU WK20 2Pin 3Pin 4Pin 5Pin 6Pin 7Pin 8Pin 9Pin 12Pin 15Pin Lock Hook Circular Connector for Power LED
| IP rating |
IP68 |
| Coupling |
Lock Hook Connection |
| Termination |
Solder/Crimp/Screw |
| Shell material |
PPE /Zinc alloy |
| Insert material |
PPS, max temperature 260 ℃ |
| Contact material |
Brass with gold plating |
| Mating cycle |
500 |
| Temperature range |
-40℃~+125℃ |
| Insulation resistance |
2000mΩ |
| Contact resistance |
2/3/4/5/6Pin: 1mΩ
7/8Pin: 2.5mΩ
9/12/15Pin: 5mΩ |
| Rated Current |
2/3/4/5Pin: 30A
6Pin: 25A
7Pin: 15A
8Pin: 10A
9/12/15Pin: 5A |
| Rated voltage |
2/3/4/5/6/7/8Pin: 500V
9/12/15Pin: 400V |
| Test voltage |
2/3/4/5/6/7/8Pin: 1500V
9/12/15Pin: 1200V |
1) Structural Design
A hook-type locking mechanism ensures a secure and reliable connection, suitable for demanding industrial scenarios.
2) Protection Rating
It boasts IP68 industrial waterproof and dustproof performance, making it suitable for harsh environments such as those exposed to humidity, dust, and liquid splashing.
3) Materials and Craftsmanship
The housing is constructed of zinc-based alloy, achieving a V-0 fire rating for enhanced safety. The contacts utilize gold-plated copper alloy for excellent conductivity and corrosion resistance. The insulators are made of PPS or PBT, with a high-temperature resistance of up to 260°C.
4) Diverse Wiring Methods
It supports both welding (Ø1-3.5mm) and crimping screws (Ø2.5-3.5mm) to meet diverse installation requirements.
ApplicationsWeipu WK20 connectors may be used in industries such as industrial automation, photovoltaics, outdoor displays, oil development equipment, and chemical equipment. These applications often require connectors with excellent waterproof, dustproof, high-temperature, and vibration-resistant properties. Weipu connectors have metal shells and sealed designs, which can meet the requirements of use in harsh environments.
1) Aviation and Military Applications
Using high-strength metal materials and precision craftsmanship, it boasts excellent waterproof and vibration resistance, making it a top choice for aircraft, satellite communications, and military equipment.
2) Industrial Control and High-Precision Equipment
It is suitable for applications such as LED screens, audio-visual equipment, medical equipment, and industrial testing instruments. Its IP68-rated waterproof performance meets the demands of complex environments.
