Technical Specifications

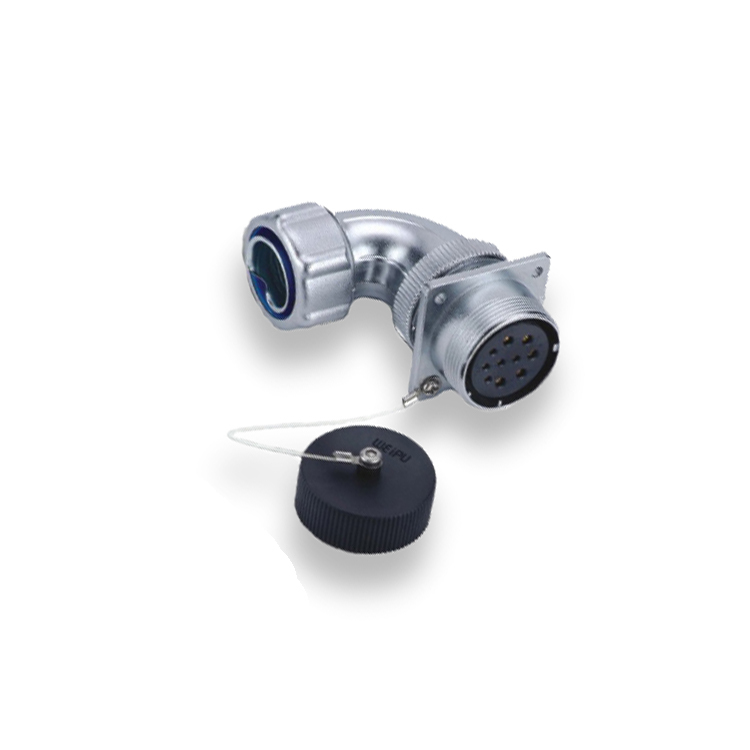

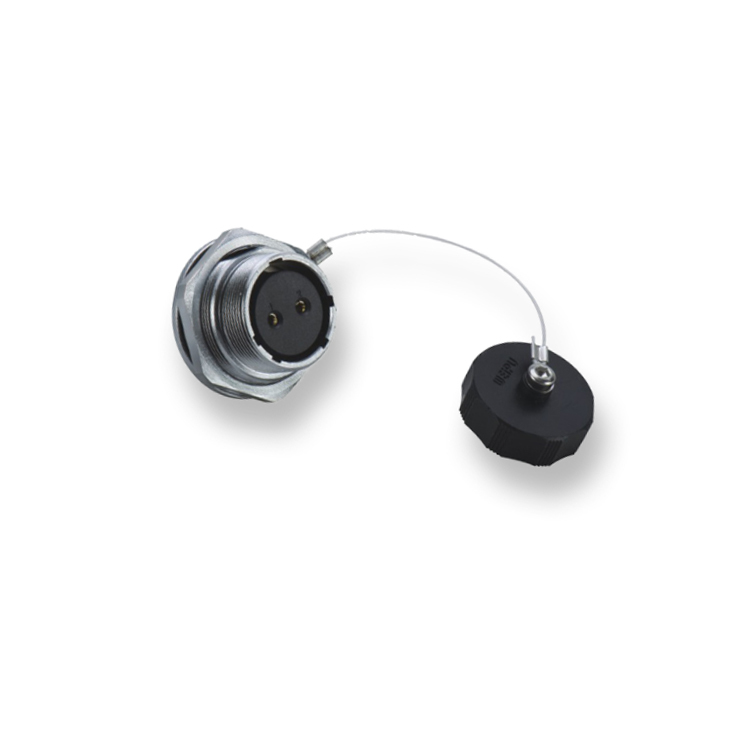

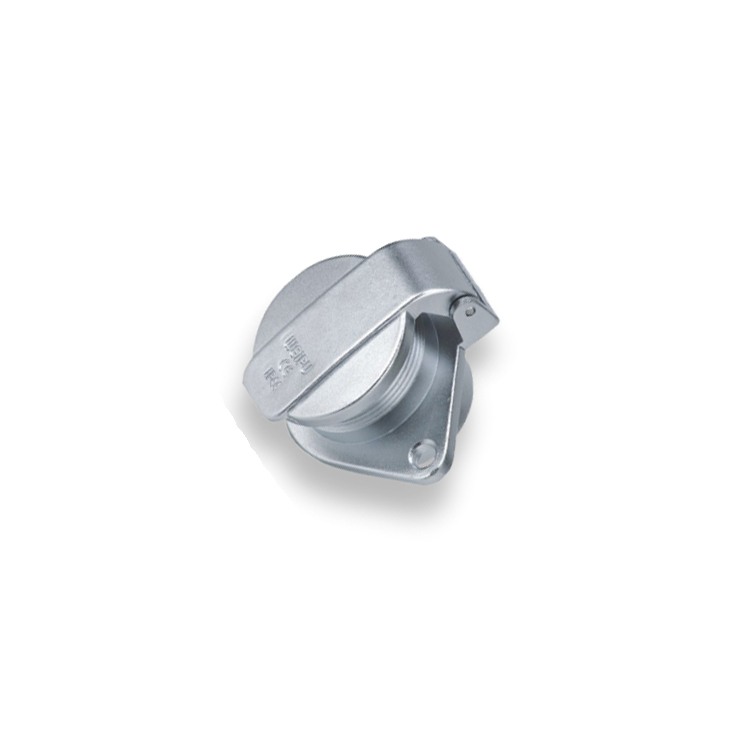

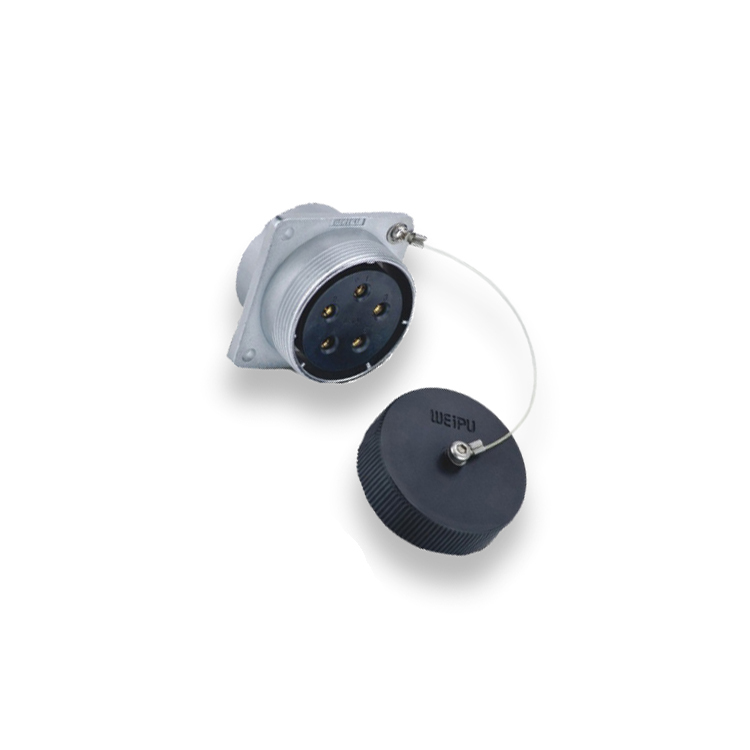

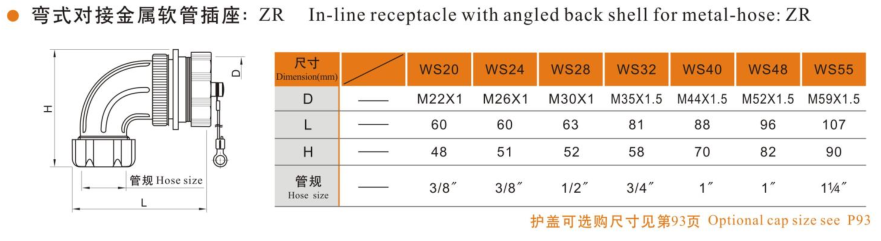

Weipu WS Series ZR Receptacle In-line Right Angled Aviation Connector for Metal Hose
| Coupling |
Threaded |
| Termination |
Solder/Crimp/Screw |
| Shell material |
Zinc alloy with chrome plating |
| Insert material |
PPS, max temperature 260 ℃ |
| Contact material |
Brass with gold plating |
| Mating cycle |
500 |
| Temperature range |
-40℃~+85℃ |
| Rated Current |
2/3Pin: 50A
4/7/8/9/10Pin: 25A
12/16/17Pin: 10A
20/24/26/35Pin: 5A |
| Rated voltage |
2/3/4/7/8/9/10/12/16/17Pin: 500V
20/24/26/35Pin: 400V |
| Test voltage |
2/3/4/7/8/9/10/12/16/17Pin: 1500V
20/24/26/35Pin: 1200V |
Product Advantages
The WEIPU WS series connectors offer a current range of 3A-200A, a withstand voltage of 1000V-3000V, 2-61 pins, and IP44-IP68 protection, ensuring high environmental adaptability and durability.
1) Excellent Structural Design
The metal housing is durable and features gold-plated contacts to reduce oxidation damage.
The plugs and sockets are equipped with screw locks to prevent them from falling off.
2) Customization
We support custom specifications based on customer needs, accelerating R&D in areas such as new energy vehicles.
Flexible selection of parameters such as nominal diameter and number of cores meets diverse wiring requirements.
3) High-Quality Materials
Using imported copper and electroplating technology, we offer excellent cost control and high reliability.
Applications
1) Industrial Automation and Intelligent Manufacturing
They are used in core industrial sectors such as machine tools, CNC systems, servo motors, and sensors, supporting high-precision mechanical control and automated production processes.
2) Energy and Power Engineering
They are widely used in new energy vehicles, photovoltaic power generation, wind power projects, urban power grids, and rail transit, meeting the demands of high-current and high-voltage power transmission.
3) Communications and Lighting Systems
They serve as key connector components in communication base stations, data centers, and intelligent lighting systems, ensuring stable and secure signal transmission.
4) Transportation and Marine
They are suitable for applications such as locomotives and ships, providing reliable electrical connection solutions, particularly with waterproof outdoor designs.
5) Construction and Infrastructure
They are used in factories, construction sites, ports, and airports, meeting the power distribution and control needs of complex environments.
