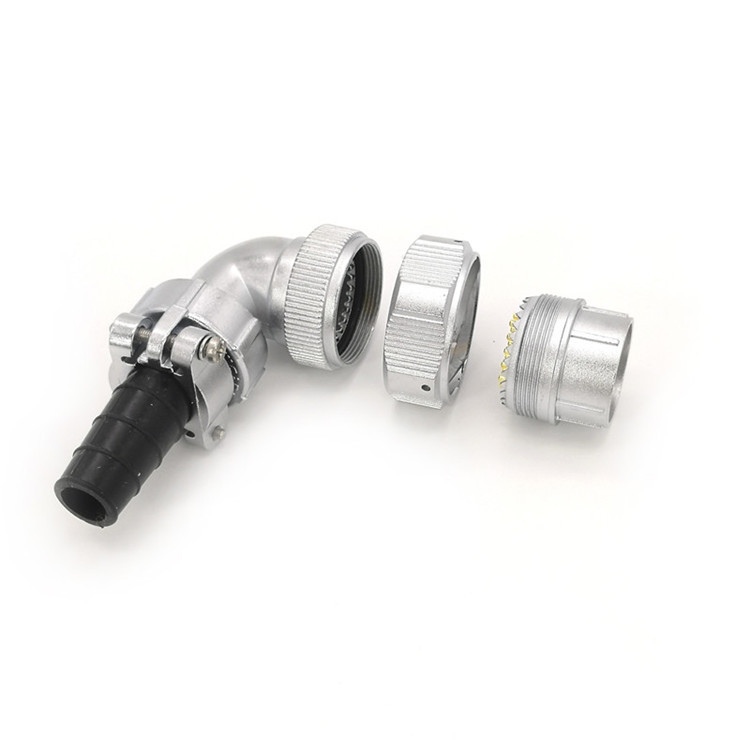

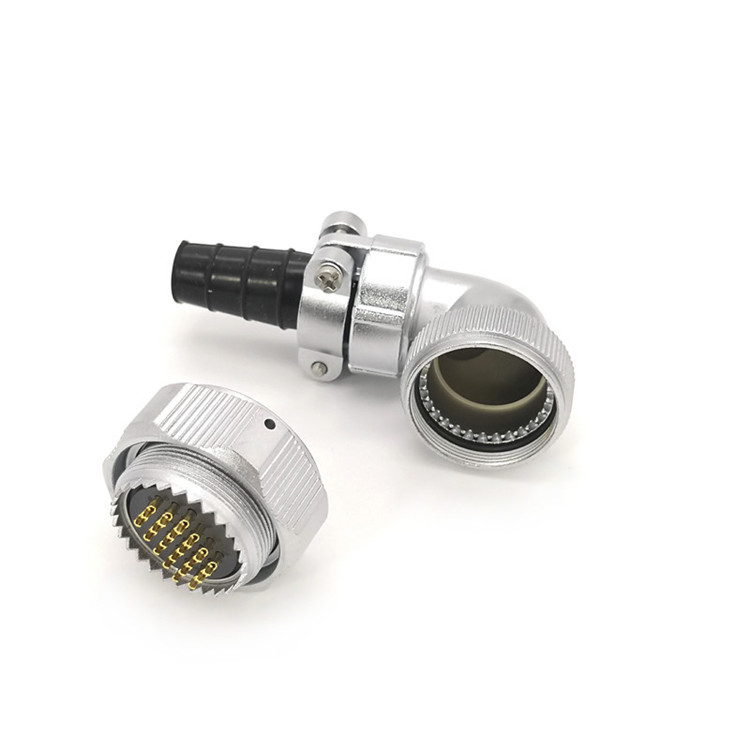

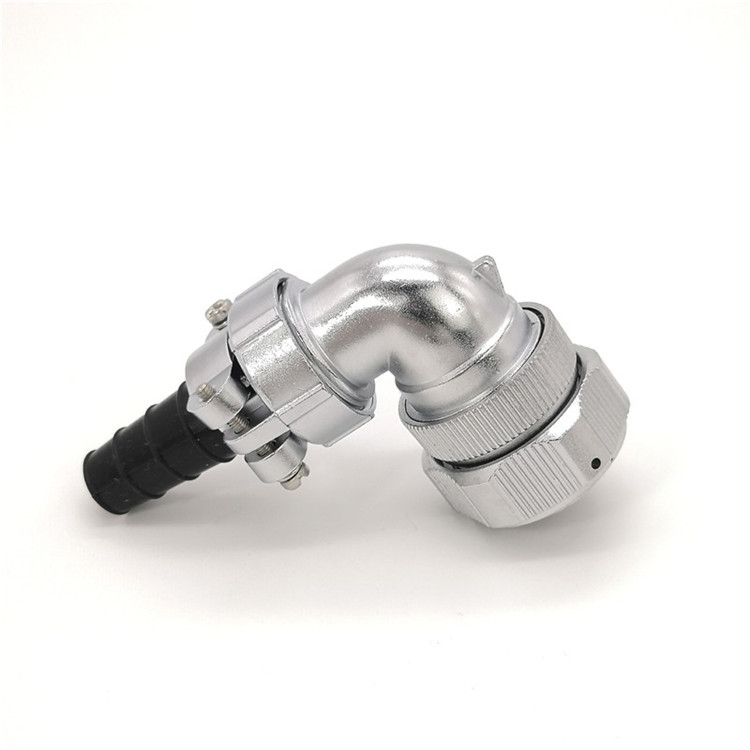

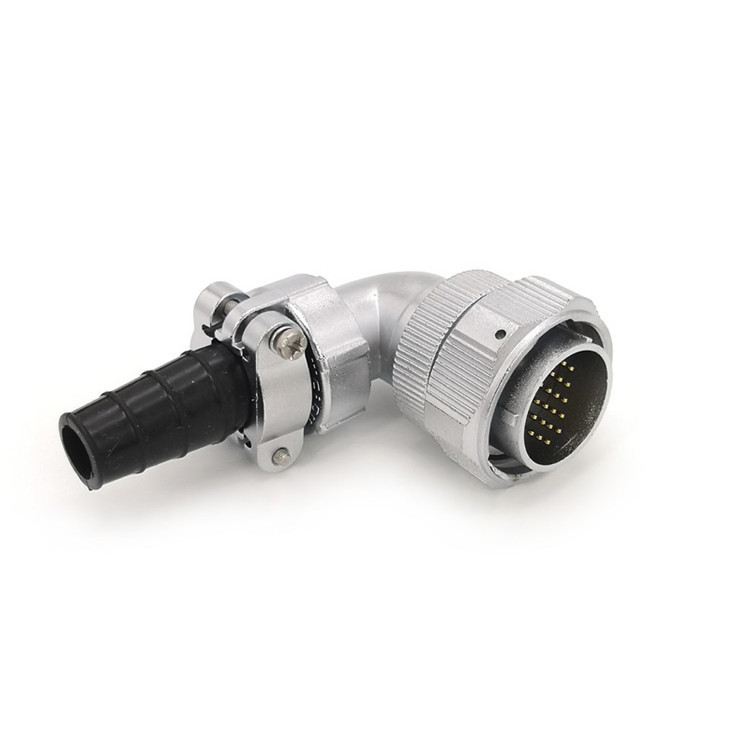

Weipu WY TI Series connector with Rubber Sleeve

Name: Weipu WY TI Series connector with Rubber Sleeve
Brand: Xiamen Leaka Electrical Equipment Co., Ltd
SKU: WP-WY-TV
Availability: InStock
Rating: 5 (1 reviews)

No.WP-WY-TV

FOB price: US $ 1.5-7each piece MOQ: 1 PCS Pin: 2 pin~61 pin Supply ability: 5000 pcs per month Place of Origin: Xiamen, Fujian, China (Mainland) Payment term: T/T, Western Union, Pa

GET A QUOTE

Description

Suppliers IP65 Aviation Cable Connector Plug with Rubber Sleeve WY TI Series Weipu bayonet connector cable male female

The WY Series

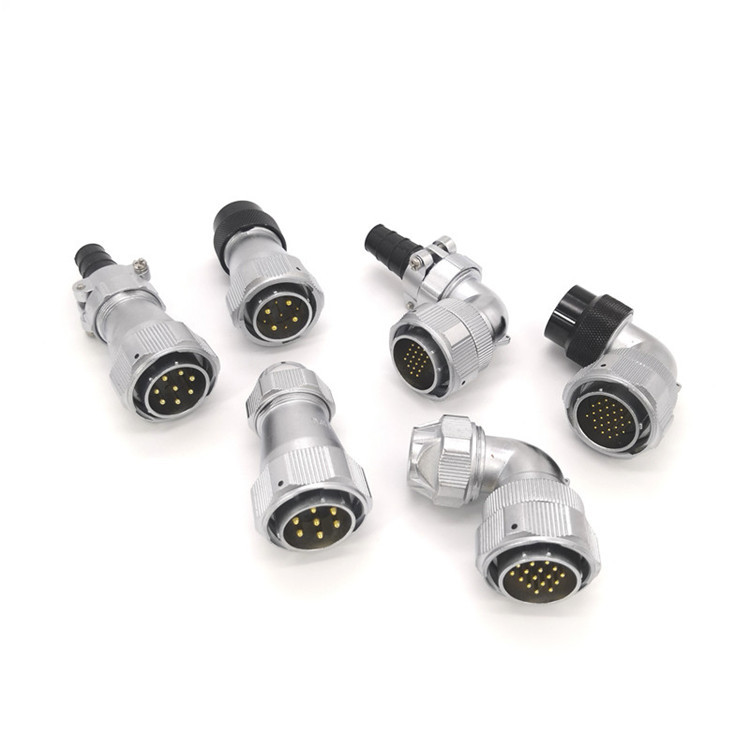

The WS, WY and WF series are 3 different versions of metal shell connectors. They share the same insert, same contacts and same electric spec, only different in coupling and IP rating.
WY series is rated from IP55 to IP67 with bayonet coupling, it is a very strong connector, designed for indoor / outdoor, shaking, vibrating harsh conditions, the bayonet coupling offers quick locking and anti-vibration. It is a higher level connector compare to WF and WS.
The connectors can be used for both cable to cable or cable to panel connections. Each side can be male or female contact. Caps are available on panel connector.
1) Panel-hole cutout size: from 16mm to 55mm.
2) Number of contacts: 2pin to 61pin
3) Rated current: 5A-200A
4) IP rating: IP55-IP67
5) CE, ROHS approval

Application
This strong connector is mainly used on all kinds of indoor and outdoor machines and equipment, measuring and testing equipments, audio amplifier systems, railways, welding equipments, motors, farming equipments, tools, outdoor lighting and LED panel screens, communications. It can be used for both data and power.

Coupling Bayonet Shell material Zinc alloy with chrome plating Contact material Brass with gold plating Insert material PPS,max temperature 260℃ Mating cycle 500 Temperature -40℃~+85℃ IP rating IP67 OEM Yes,we accept Delivery time 3-45 days depends on buying stockage or OEM order

Weipu WY TI Series connector with Rubber Sleeve

Description

Suppliers IP65 Aviation Cable Connector Plug with Rubber Sleeve WY TI Series Weipu bayonet connector cable male female

Download

CONTACT US

Coupling	Bayonet
Shell material	Zinc alloy with chrome plating
Contact material	Brass with gold plating
Insert material	PPS,max temperature 260℃
Mating cycle	500
Temperature	-40℃~+85℃
IP rating	IP67
OEM	Yes,we accept
Delivery time	3-45 days depends on buying stockage or OEM order
