Name: XS12 series circular metal fast electric connector
Brand: Xiamen Leaka Electrical Equipment Co., Ltd
SKU: ZQ-XS12-2
Availability: InStock
Rating: 5 (1 reviews)

Description

Wholesales IP65 XS12 series micro jack circular 2pin 3pin 4pin 5pin 6pin 7pin 8pin metal fast electric connector
The XS12 connector is a type of circular connector designed for electrical and electronic applications. It features a cylindrical shape with a threaded coupling mechanism, allowing for secure mating and disconnection. The connector typically consists of a male plug and a female receptacle, each equipped with pins and sockets for electrical contact.
Application XS12 metal connector
The XS12 connector finds applications in diverse industries, including automotive, aerospace, industrial automation, and telecommunications. Some common uses include:
Automotive Electronics: XS12 connectors are employed in automotive electronic systems, such as engine control units (ECUs), sensors, and lighting systems. Their compact size and robust construction make them ideal for use in harsh automotive environments.
Industrial Automation: In industrial automation, XS12 connectors facilitate the connection of sensors, actuators, and control devices. Their reliability and durability ensure uninterrupted operation in demanding industrial settings.
Aerospace: The aerospace industry utilizes XS12 connectors in avionics systems, aircraft instrumentation, and communication equipment. Their lightweight design and resistance to vibration and shock make them suitable for aerospace applications.
Telecommunications: XS12 connectors are also utilized in telecommunications infrastructure, including base stations, antennas, and networking equipment. Their high-speed data transmission capabilities meet the requirements of modern telecommunications systems.
Materials Xs12 Aviation Connector
XS12 connectors are typically constructed from high-quality materials to ensure durability and reliability. Common materials used in their construction include:
Metal Alloys: The connector shells are often made from aluminum or stainless steel alloys, providing strength and resistance to corrosion.
Insulating Materials: Insulating components, such as connector bodies and inserts, are commonly manufactured from thermoplastics like polyamide (PA) or polybutylene terephthalate (PBT). These materials offer excellent electrical insulation properties and mechanical strength.
Contact Materials: The pins and sockets within the connector are usually plated with precious metals like gold or silver to enhance conductivity and prevent oxidation.
Advantages XS12 Circular Connector
The XS12 connector offers several advantages over other types of connectors, making it a preferred choice in many applications:
Compact Size: The XS12 connector's compact design allows for space-saving installations, particularly in applications where size constraints are a concern.
Reliable Performance: With secure mating and locking mechanisms, XS12 connectors ensure reliable electrical connections, even in harsh environmental conditions.
Versatility: XS12 connectors are available in various configurations, including different pin counts, mounting styles, and termination options, offering versatility to suit diverse application requirements.
Durability: Constructed from high-quality materials, XS12 connectors exhibit excellent durability, withstanding exposure to extreme temperatures, moisture, vibration, and mechanical stress.
Ease of Installation: The connector's user-friendly design facilitates quick and easy installation, minimizing downtime during system assembly and maintenance.
The XS12 connector stands out as a reliable and versatile solution for electrical connectivity in a wide range of applications. Its compact size, durable construction, and reliable performance make it well-suited for use in automotive, aerospace, industrial automation, and telecommunications systems. As technology continues to advance, the XS12 connector is expected to remain an integral component in various industries, meeting the evolving needs of modern electronic and electrical systems.

Coupling	Push-Pull
Shell material	Zinc alloys with nikelplate
Contact material	copper( silver/ gold plated)
Insert material	bakelite
Rated current/voltage	5A-125V, 16A-200V
Cable diameter	≤Ф 7.5 mm~ ≤Ф 8.3 mm
Assemble way	assemble board
Solder cup mouth aperture	0.9mm, 1mm
Solder inter diameter	1mm, 1.5mm
Operation limit voltage(AC.V.rms)	200V, 250V
Mating cycle	500
Temperature	-20℃~+85℃
OEM	Yes,we accept
Delivery time	3-45 days depends on buying stockage or OEM order

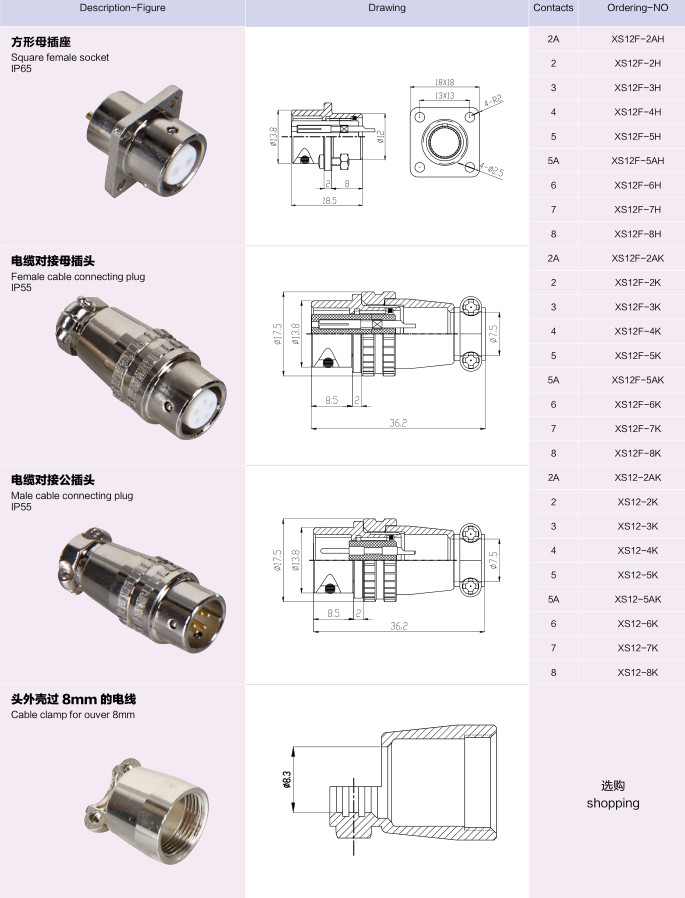

Drawing
