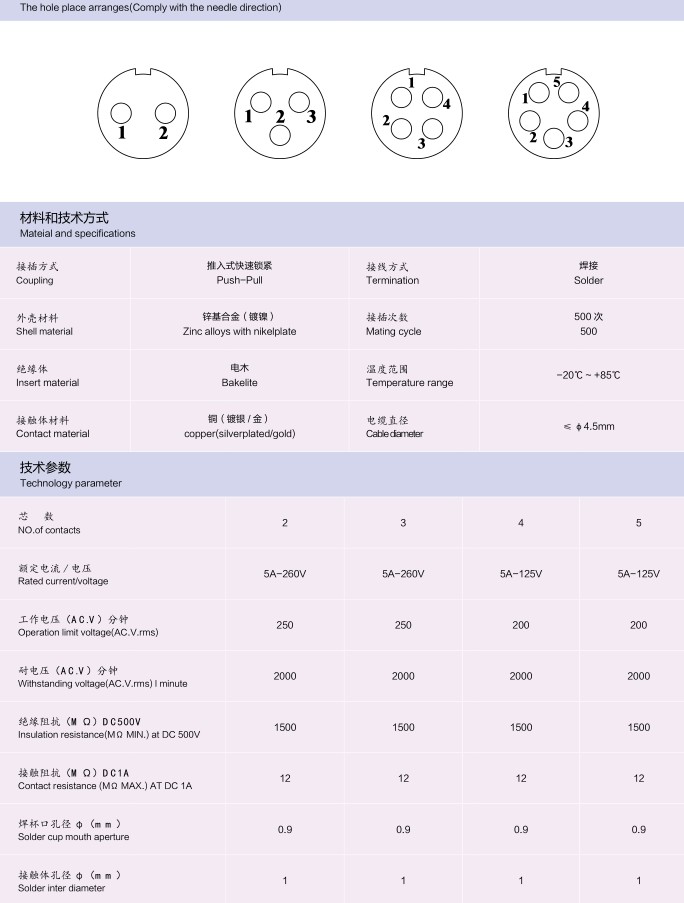

| Coupling | Push-Pull |
| Shell material | Zinc alloys with nikelplate |
| Contact material | copper( silver/ gold plated) |
| Insert material | bakelite |
| Rated current/voltage | 5A-125V, 5A-260V |
| Cable diameter | ≤Ф 4.5 mm |
| Assemble way | assemble board |
| Solder cup mouth aperture | 0.9mm |
| Solder inter diameter | 1mm |
| Operation limit voltage(AC.V.rms) | 200V, 250V |
| Mating cycle | 500 |
| Temperature | -20℃~+85℃ |
| OEM | Yes,we accept |
| Delivery time | 3-45 days depends on buying stockage or OEM order |
