XT60 connectors is made of high-temperature-resistant and flame-retardant nylon material , it will not melt and catch fire under high current and
high temperature.
We are specialised in wholesale production of XT series connectors factory, if you have any questions, please feel free to contact us!
xt60 male female connector draw
How many amps can xt60 handle?
XT60 connector rating current is 30A,xt60 max current is 60A.
XT60 connector amp rating is 30A
Instantaneous current is 60A
XT60 connector voltage rating is 500V DC
Contact resistance is 0.55mΩ
Recommended usage times is 1000
Flame retardant rating is UL94 V0
Recommended applications is battery/controller
Technical parameter:
1. XT60 golden yellow male/female plug plastic shell: Made of high temperature resistant flame retardant nylon material imported from Japan, it will not melt and catch fire under strong current and high temperature, it is not easy to burn when encountering an open flame, and it will automatically extinguish after leaving the fire source.
2. XT60 golden yellow male/female plug hardware: The terminal is finished with national standard copper, and the surface is gold-plated with good conductivity. The current is 60A for one minute, the case temperature is below 36 degrees Celsius, and the case temperature reaches 80 degrees Celsius without melting.
3. Easy plugging and unplugging: non-slip plugging design, easier plugging and unplugging; asymmetrical appearance design, beautiful and beautiful.
4. Ease of soldering: The tail welding ports are arranged 180 degrees back to back. Suitable for welding No. 12 extra soft silicone wire.
5. Properties: It is formed by high-speed automatic lathes and secondary processing equipment imported from Taiwan, and the connection is tight without leaving gaps, and the sealing and conductivity are good.
6. Anti-insertion design: with guide groove, clear + positive and - negative signs.
7. Contrast: It can withstand more current than T plug, and it can be plugged and unplugged than TRX.
Packing method: No special requirements are bulk 500PCS/bag.
Company Profile
Xiamen Leaka Electrical Equipment Co., LTD., founded in 2 0 1 5, and we have our own associated factory,which is an enterprise dedicated to the research, development and production of high-performance connectors and providing connectivity solutions.Our company is located in the No.101,Huizu Road,Haicang,Xiamen,Fujian,convenient transportation.Our company has a perfect quality management system, innovative r & D team, complete testing laboratory and enthusiastic service personnel, can provide customers with high quality products and competitive prices. Our main products include underwater connector,M5,M8,M12,M16,M19,M23 connector,push pull connector,aviation connector,circular connector, heavy duty connector and related wire harness products.Waterproof rating from IP65, IP67, IP68 to IP69K. which are widely used in industrial automation, sensors, Marine equipment, new energy, communication, lighting,LED display equipment, railway,and security and other fields. The company's products are made in strict accordance with international general standards and can be used interchangeably with major brand products,at the same time, we can also provide special customized services according to customer requirements. Our company has passed ISO9001:2015 quality system certification, and our products have passed a number of third-party certification. Our products are not only popular in China, but also exported to 56 countries and regions,received widespread praise.We warmly welcome customers from home and abroad to cooperate and create a better future.
We are a young team that already has considerable experience in the field of Electrical Connectors.
Richer Experience:Our products have been exported to more than 40 countries, such as Russia, Australia, USA, UK, Germany, Ukraine, Iran, Romania, Hungary, Mexico, Brazil, Chile, Canada, Spain, Colombia， etc. We have agents in the USA, Australia, Singapore, Kuwait, Russia.etc, so we can provide high service to our clients.
We focus on new product research and development, every year there are quite a lot of product patent certificates, innovation is our belief!
We have a professional team with technical knowledge and managerial experience. Our company has been through professional quality system certification, CE certification, SGS audit, TUV audit,So that we can guarantee the best quality of our products.

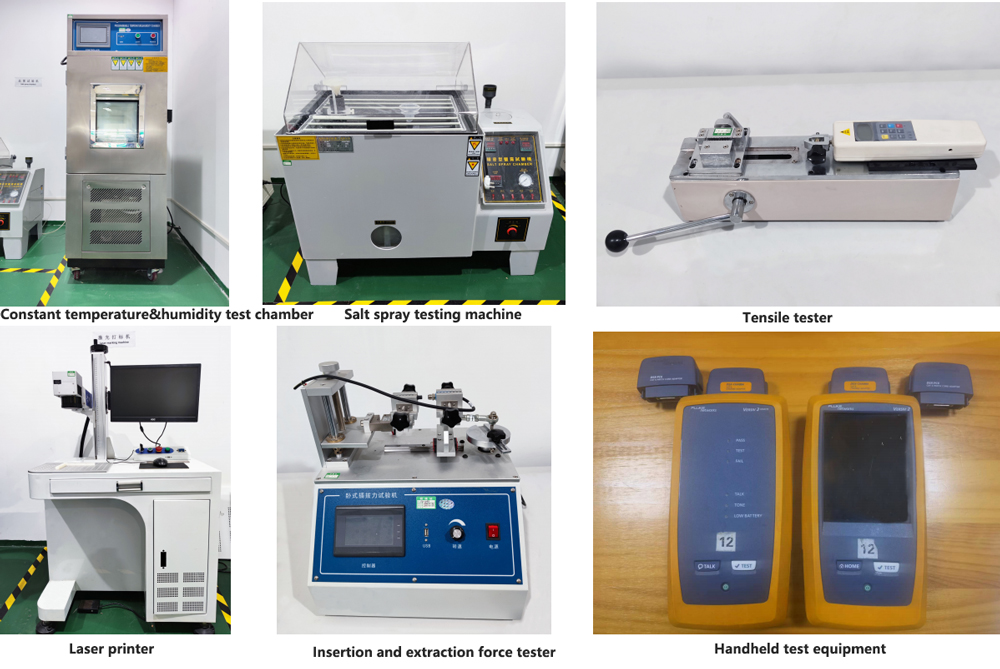

Various product testing equipment to ensure product quality, so that customers are more assured.
Our customers have a wider range of processing choices for transportation mode
By Express ( FedEx, UPS, DHL, TNT, EMS, etc... )
--- Advantage: Fast ( takes about 7 - 10 days in the delivery ), door to door
--- Disadvantage: A little expensive
By Air Transportation
--- Advantage: Fast ( takes about 8 - 12 days ), a little cheaper than Express.
--- Disadvantage: You need to take the goods from the airport by yourself.
By Sea ( Ocean ) Transportation
--- Advantage: Much cheaper than Express or Air transportation.
Disadvantage: Slow and you need to take the goods from your destination port by yourself.
Exhibitions
Our Advantage
1. We has two factories of 3500 square meters and totally 30 employees to promise the Honed Tubes In Stock best quality control;
2. Customized connectors of various specifications according to customer requirements;
3. Our motivation is --- customers’satisfaction smile;
4. Our believing is --- pay attention to every detail;
5. Our wish is ----perfect co-operation.
FAQ
1. Q:Are you a manufacturer, trading company or a third party?
A:We are a manufacturer with experienced R&D and sales team.
2. Q:Where is your factory located?
A:Our factory address is : No.101 Huizuo Road, Xinyang Street, Haicang District, Xiamen city, Fujian Province, China.
3. Q:What is your minimum order quantity, can you send me samples?
A:The minimum order quantity of our products is uncertain, depending on the nature of the product.
4. Q:Which level of quality are your products?
A:We have got CE, ISO, CCC, TUV certificate so far.
5. Q:What is the delivery time of your product?
A:In general, the delivery time of our product is about 15 days, customized product will be delivered as the negotiation with our clients.
6. Q:Can the product be customized as our need, such as put on our logo?
A:Surely our product can be customized as your need, Put on your logo is also available.
Draw of xt60 plug
