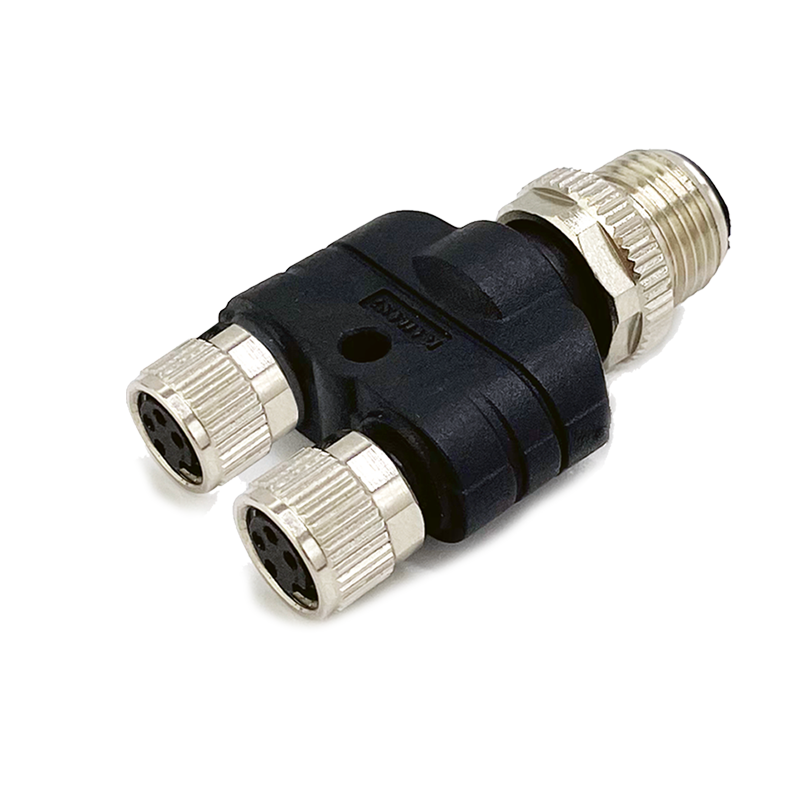

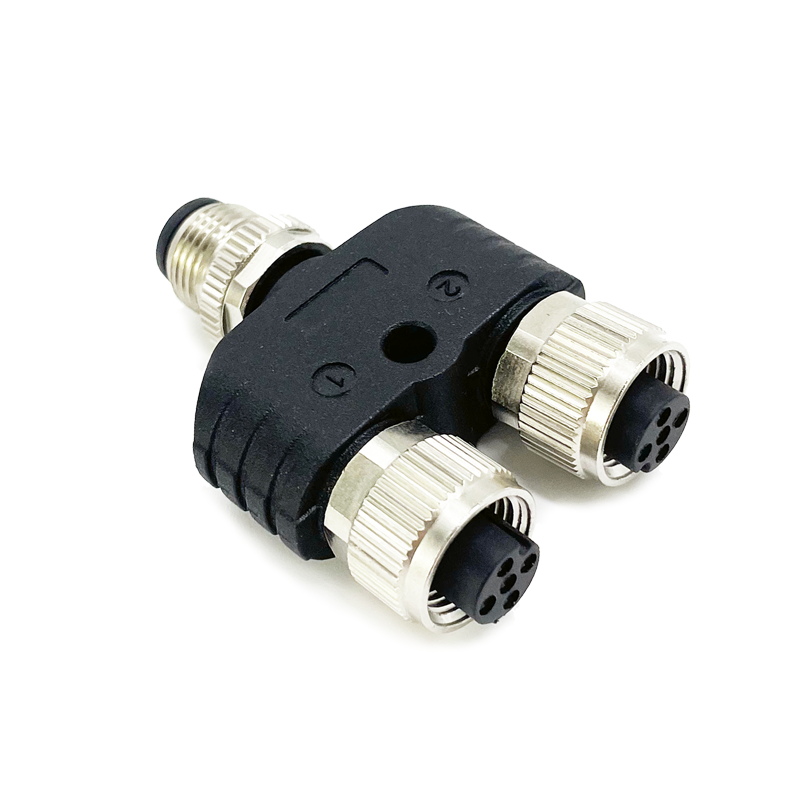

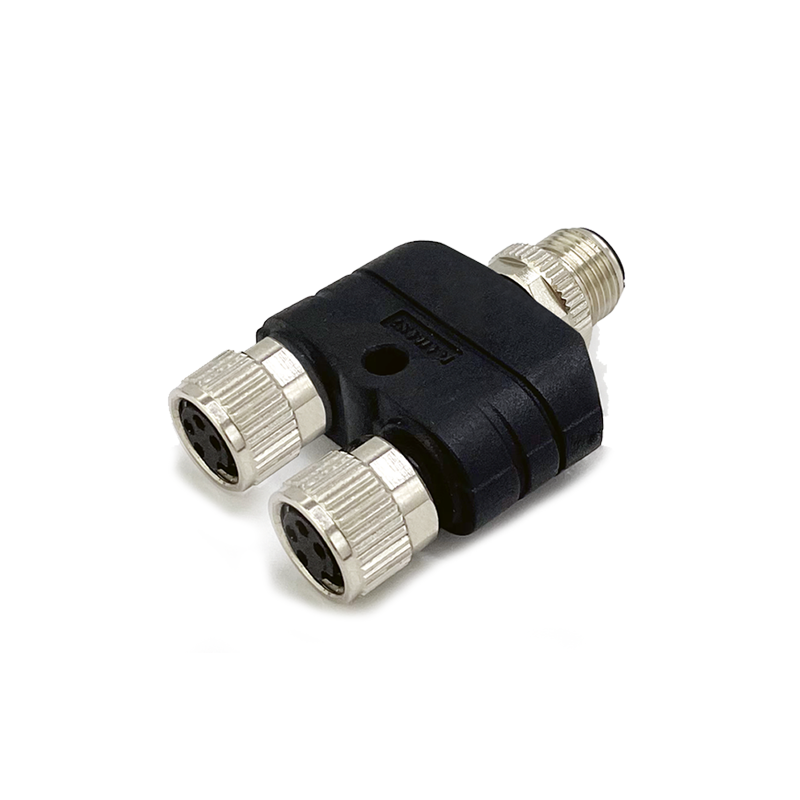

CustomY Shape M12 Electrical 4 5 pin Connector
An M12 Y Shape Connector is a type of electrical connector commonly used in industrial automation and control applications. The M12 designation refers to the 12 mm diameter of the threaded locking mechanism that ensures a secure connection. The "Y Shape" indicates the physical configuration of the connector, which has three ends forming a Y-shape. This design allows a single input signal to be split into two outputs, or vice versa.
2.Product Specification
| Gender | Male to Female |
| Type | BNC, Y Shape |
| Connection Type | Screw Connection |
| Mating Cycle | ≥500 Times |
| Cable Diameter | PG7(4-6mm); PG9(6-8mm) |
| Insulation Material | PA66+GF20% |
| Shell Material | PA66+GF20% |
| Contact Material | Copper(Silver/Gold Plated) |
| Temperature Range | -25℃∽85℃ |
| Norminal Current | 4A |
3. Company Profile
Xiamen LEAKA founded in 2015, one of the electrical connector companies, also a professional manufacturer of all kinds of connctors. Covers are area of 3500sqm, have 100 staff includes 10R&D staff. We have passed CE,UL,SGS,CCC,Rohs product certification. And we adopt flexible manufacturing and scientific management to improve quality.Leaka has become one of the leaders in domestic connector manufacturing industry. Our products can substitute European,US and Taiwan connectors,own the same quality.
4.Shipping & Payment
5. Our Advantages
We are the powerful facrory of connectors and cables in Fujian province ,China .
Quality Control through the whole Manufacturing process.
General Inspection on fixing before Packing.
Our hardware all passed ISO 9001.
Many other designs for you to choose and we can accept small quantity order. Your interests can be fully Guaranteed.
After you make order, we will follow up the whole process and update it to you. Collecting goods, loading containers and tracking goods transport information for you.
Any of our products you are interested, or any customized orders you wish to place, any items you want to buy, please let us know your requirements. Our team will do our best to help you.
