Excessive contact resistance of the M12 connector can cause a sudden voltage drop, leading to equipment abnormalities, local overheating, accelerated oxidation, signal distortion, a sudden increase in the risk of power outages, and a surge in the probability of safety hazards of arc discharge. The contact resistance can be controlled and reduced from aspects such as raw materials and manufacturing processes.

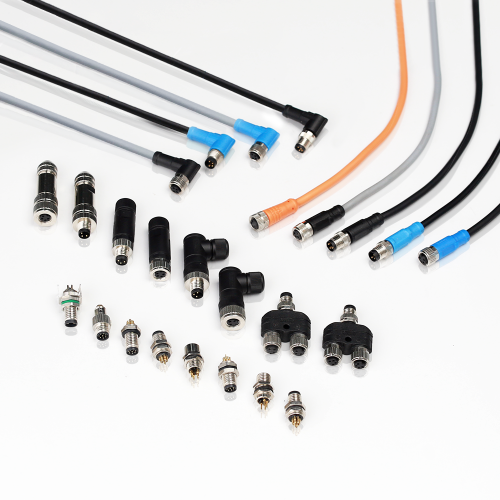

How to keep the contact resistance of M12 connector low
01. High-conductivity materials for contacts + plating process
① The contacts of m12 connectors should be made of highly conductive materials such as copper alloy, which is the fundamental technical guarantee;
② Plating process should be adopted, gold plating is recommended, which can reduce oxidation and corrosion resistance, but the cost is high; silver plating has a balanced cost performance.
02. Precision structural design of m12 connector contacts
① Reasonable design of the elastic structure of male and female terminals of contacts to ensure smooth plugging and unplugging force and avoid "stuck" phenomenon. After long-term plugging and unplugging, the contact force attenuates slightly and the resistance fluctuation is minimal;
② The tolerance of pins and sockets is smaller, and interference fit avoids virtual connection; if the tolerance is too large, greater micro-motion wear will occur, resulting in increased contact resistance.
03. Contact surface roughness and processing quality① High-precision polishing of M12 connector contacts: ensures lower surface roughness, and for every 0.1μm reduction in contact surface roughness, the contact resistance fluctuation rate is reduced by 15%;
② Cleanliness control: requires high surface cleanliness to avoid dust particles causing increased contact resistance.
04. M12 cable assembly contact assembly accuracy
① Pin/socket misalignment or gap exceeds the standard, the actual contact points are reduced, and the contact resistance increases. Under normal circumstances, an assembly deviation of 0.05mm can cause an average monthly increase in contact resistance of 15%;
② After the assembly gap increases, dust and other pollutants are easily accumulated on the contact surface, forming a high-resistance oxide film, which causes a surge in contact resistance.
Hazards of increased/exceeding contact resistance of M12 connectors
| Hazard types |
Specific issues |
Risk level |
| Electrical performance collapse |
Voltage sag and energy loss |
High |
| Analog signal distortion |
Extremely high |
| High-frequency signal reflection |
Medium-high |
| System reliability collapse |
Digital signal ringing |
Medium-high |
| Local overheating and material degradation |
High |
| Economic and safety risks |
Instantaneous power failure risk |
Extremely high |
| Operation and maintenance cost surge |
High |
| Arc discharge |
Extremely high |
