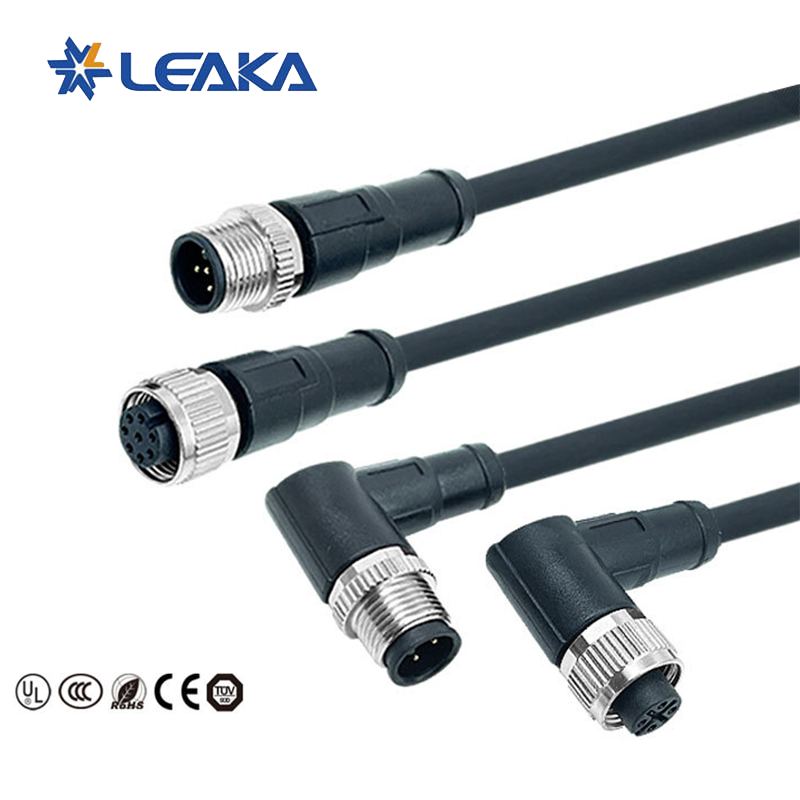

There are significant differences between the straight and elbow M12 connectors in structure, performance, and application scenarios.
1. Structure
Shape Characteristics
Both ends of the straight connector are straight, suitable for straight wiring; at least one end of the elbow connector is bent to change the direction of the cable.
Physical Characteristics
The straight connector has a simple structure and the terminal is a flat design; the elbow has a complex shape and the terminal may adopt a bent structure to meet the wiring requirements.
2. Performance
Signal Transmission
The straight connector has a short line length and small signal attenuation, which is suitable for long-distance transmission; the elbow has a large attenuation due to the increase of signal reflection caused by the bending of the line, and is mostly used for short distances1.
Physical Properties
The elbow connector has good structural flexibility and high tensile strength, which is suitable for scenes that require frequent movement or vibration; the straight connector has relatively low tensile strength and is easily affected by external forces.
3. Advantages & disadvantages
Straight M12 Connector
Advantages: stable transmission, strong anti-interference ability, suitable for high-speed/high-frequency data transmission (such as sensors, instruments, high-speed networks, etc.).
Disadvantages: poor flexibility, unable to change the line direction, not suitable for wiring scenes that require steering.
Elbow M12 Connector
Advantages: The line direction can be adjusted to adapt to complex wiring environments (such as pipeline systems, equipment steering, etc.).
Disadvantages: The signal attenuation is large, the transmission distance is limited, and the structure is relatively complex.
4. Application
Straight M12 Connector
High-density array wiring: In similar application scenarios such as PLC control cabinets, straight connectors can be inserted vertically into the panel to achieve more connector interface settings on the equipment installation panel and dense wiring.
Suitable for frequent plug-in and unplug connection demands: Compared with the M12 connector with a 90° elbow, the straight M12 connector only requires a smaller radial space to complete the docking and avoid lateral space compression.
Elbow M12 Connector
Need lateral obstacle avoidance: When there are moving parts on the side or other fixed parts that invade the space on the side, a 90° elbow connector is required. For example, in the joint part of the robot arm, the elbow allows the cable to be routed close to the surface of the equipment to avoid collision with moving parts.
Flat space: For chassis or equipment with height restrictions, elbows can be wired horizontally. Compared with the straight M12 connector with 180° outlet, it can further reduce the demand for the axial space of the plug, so it has more advantages for flat space.
