A reliable cable gland balances sealing, mechanical strength, and EMI protection. Choosing the right materials (e.g., stainless steel, FKM) and designs (e.g., adjustable clamps, multi-layer seals) prevents failures. Regular maintenance and adherence to standards (IP, IEC, MIL) ensure long-term performance. Investing in quality glands reduces downtime and costs in industries like energy, manufacturing, and aerospace.
The main function of the cable gland is to make the line unobstructed, keep the cable sealed, and ensure the insulation level at the cable gland so that it can operate safely and reliably. If the seal is poor, not only will the oil leak and cause the oil-impregnated paper to dry up, but moisture will also invade the inside of the cable, causing the paper insulation performance to deteriorate.
Common Failure Modes
- Sealing failure is a primary concern. Moisture or dust ingress causes short circuits. This often results from degraded seals or improper installation. For example, standard nitrile rubber seals harden under high temperatures. Chemical corrosion also threatens performance. Saltwater or industrial chemicals degrade low-grade materials.
- Mechanical weakness leads to cracked housings or cable slippage. Plastic glands often fail under vibration or over-tightening. Poorly sized glands allow cables to loosen, risking disconnection. EMI shielding failures are another issue. Non-shielded glands in high-noise environments cause signal interference.
Essential Features of High-Quality Cable Glands

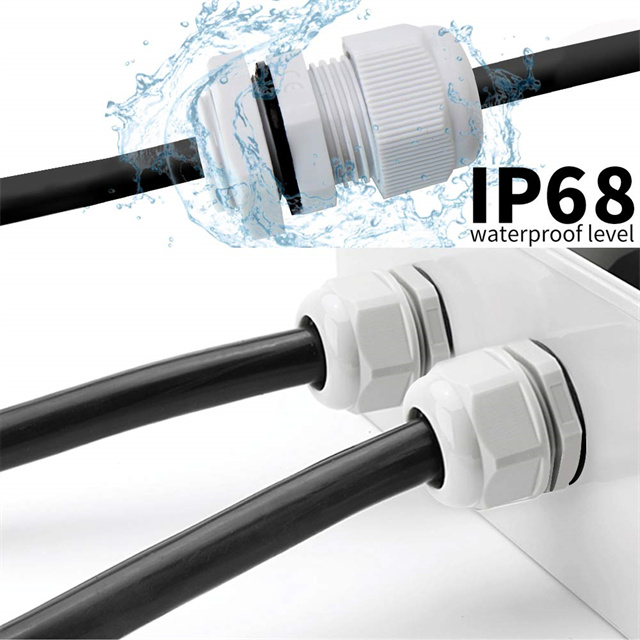

- Robust environmental sealing is non-negotiable. IP68/IP69K-rated glands prevent water and dust intrusion. Multi-layer seals (e.g., O-rings + epoxy potting) enhance reliability. Fluorocarbon (FKM) seals withstand extreme temperatures (-50°C to 200°C).
- Mechanical durability matters. Stainless steel 316 or brass housings resist corrosion and impact. Anti-vibration designs, like locknuts or torque-limiting grooves, prevent loosening. Adjustable clamping mechanisms ensure cables stay secure. Compliance with IEC 62444 pull-force tests is critical.
- EMC shielding cannot be overlooked. Full 360° shielding with conductive elastomers or metal springs reduces EMI/RFI interference. Low contact resistance (≤5mΩ) maintains signal integrity.
Design and Selection Guidelines
- Prioritize material compatibility. Match glands to operational environments—e.g., ATEX-certified glands for explosive atmospheres. Standardized threading (e.g., NPT, PG) simplifies installation. Modular designs enable tool-free maintenance.
- Testing validates performance. Salt spray tests (ASTM B117) and thermal cycling (-40°C to 120°C) simulate real-world stress. Shields should attenuate ≥90dB of EMI between 30MHz-1GHz.
Conclusion
A reliable cable gland balances sealing, mechanical strength, and EMI protection. Choosing the right materials (e.g., stainless steel, FKM) and designs (e.g., adjustable clamps, multi-layer seals) prevents failures.
